Warning Systems

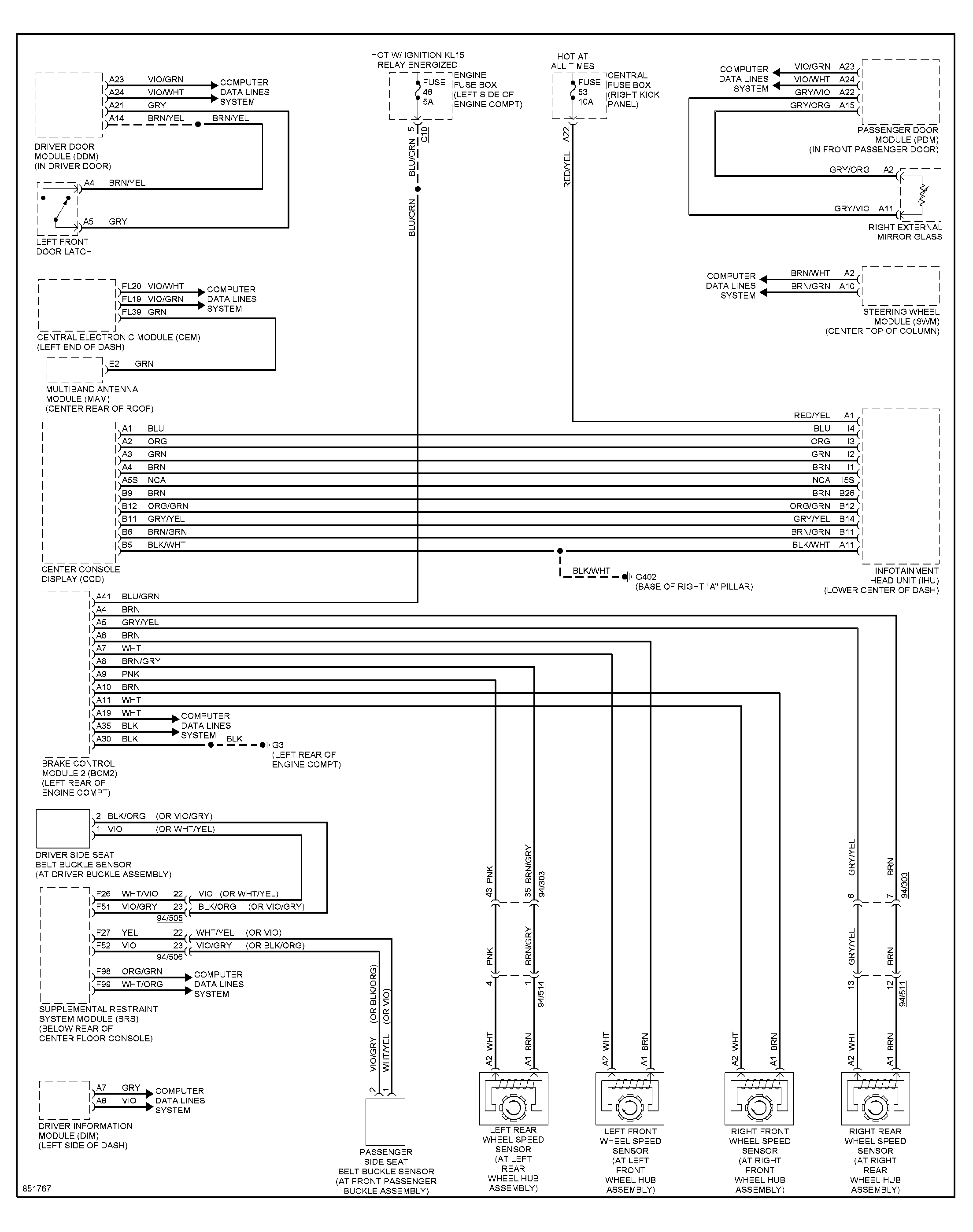

Fig 1: Warning Systems Circuit, Except Hybrid

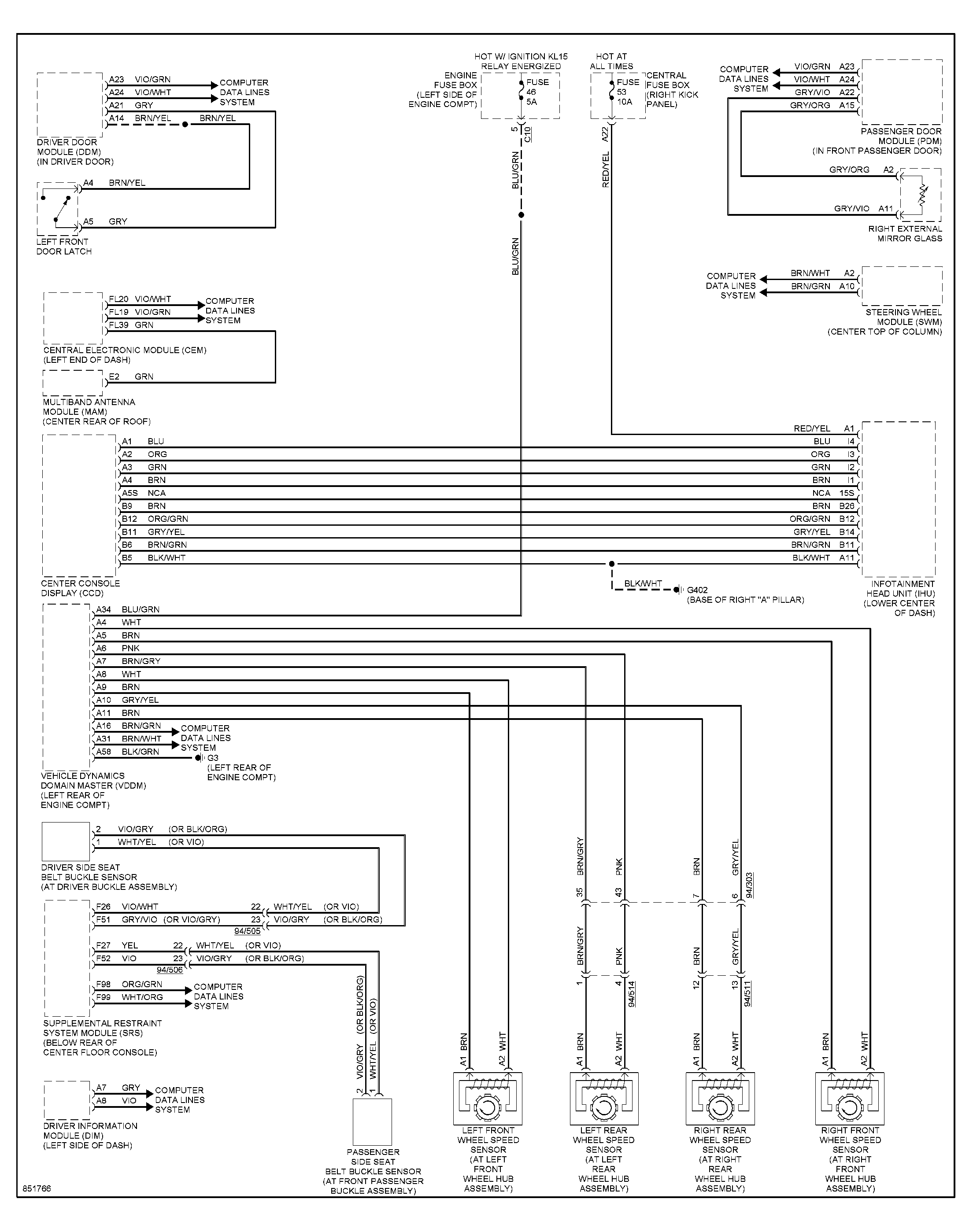

Fig 2: Warning Systems Circuit, Hybrid
