Trailer Module (TRM) [2017-2022]: Installation

To install, reverse the removal procedure.

NOTE:

The following steps are only necessary when installing a new component.

Courtesy of VOLVO CARS CORPORATION

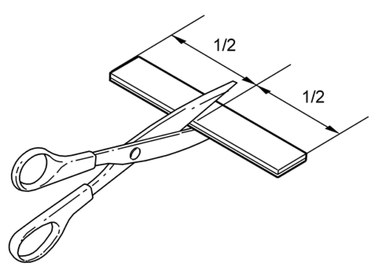

Use: Tape, 30698685

Courtesy of VOLVO CARS CORPORATION

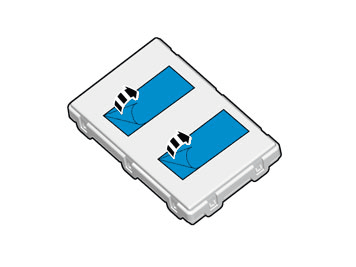

Remove the protective film.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

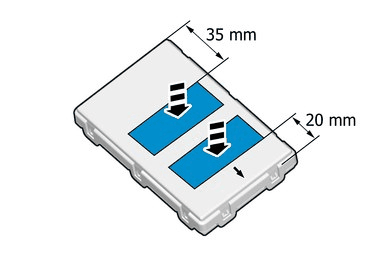

Remove the protective film.

Courtesy of VOLVO CARS CORPORATION

NOTE:

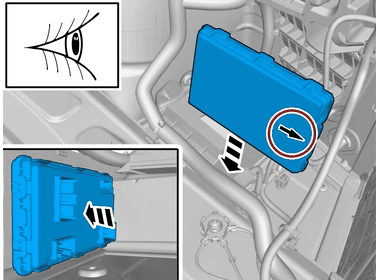

Note the position.

Install the marked component.

Order and download the appropriate software according to: VIDA/Software/Hardware Changes
