Steering Wheel Switch Module SWSM [2018-2022]: Removal

Remove airbag driver's side. Refer to: DRIVER'S AIRBAG

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Courtesy of VOLVO CARS CORPORATION

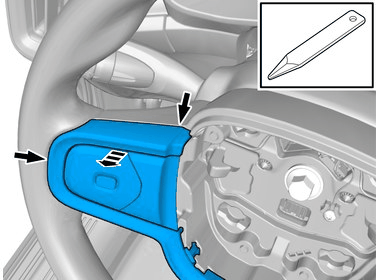

CAUTION:

Note the routing of the lines and hoses.

Use hands only.

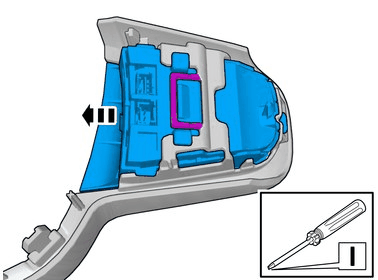

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

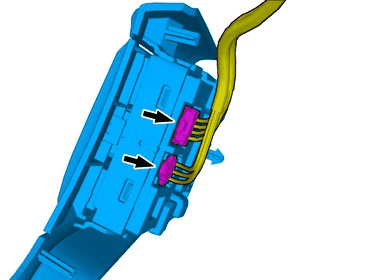

Disconnect the connectors.

On both sides.

Courtesy of VOLVO CARS CORPORATION

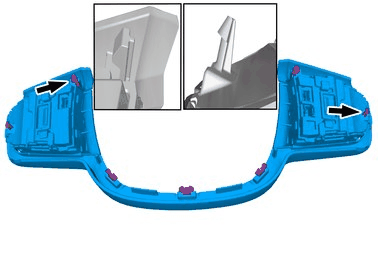

CAUTION:

Be careful not to damage the catches.

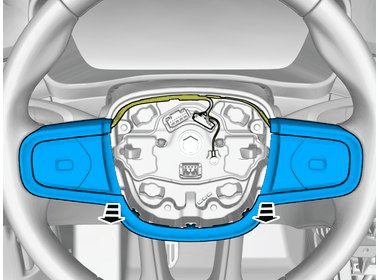

Remove the marked part.

On both sides.
