Engine Block, Installing Components [2019-2022, B4204T47, TG-81SC]: Installation

Courtesy of VOLVO CARS CORPORATION

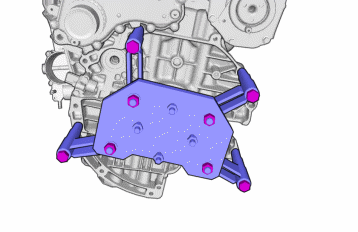

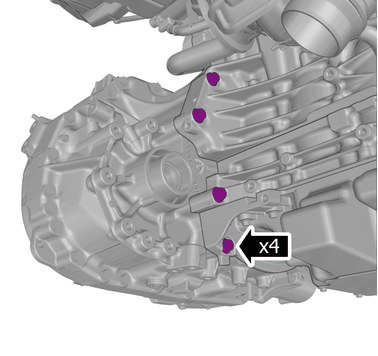

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

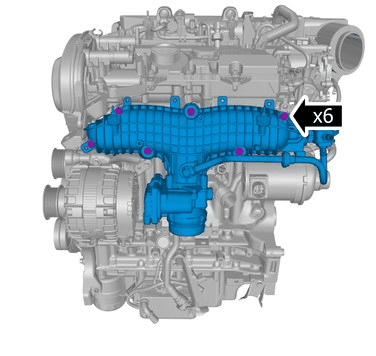

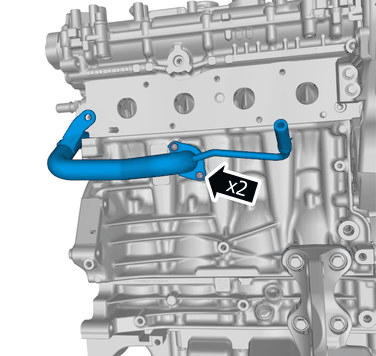

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

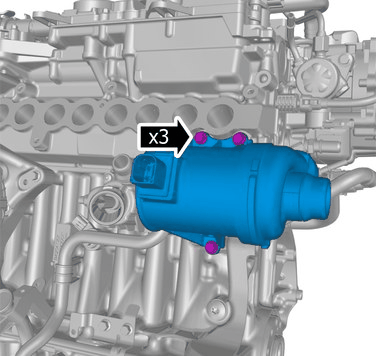

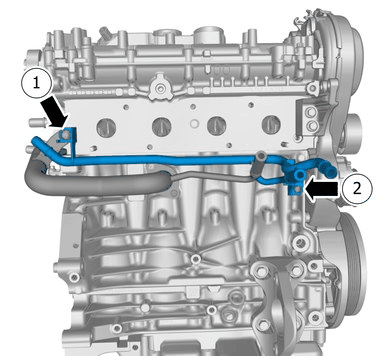

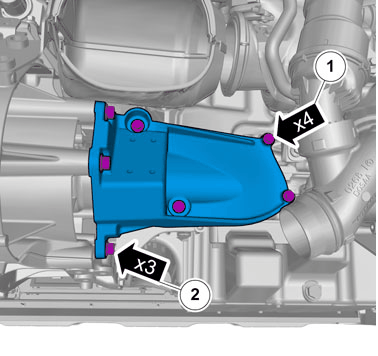

Install the screws.

Install the following items:

Torque: M8, 24Nm
Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

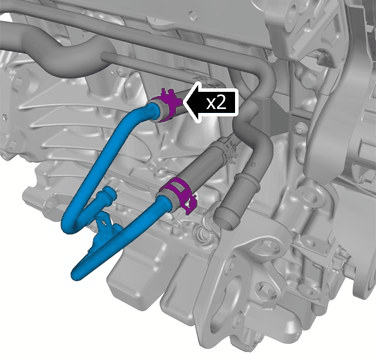

Tighten the hose clamps.

Courtesy of VOLVO CARS CORPORATION

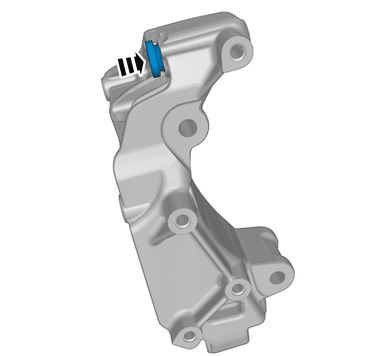

CAUTION:

Make sure that the gaskets are correctly located.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

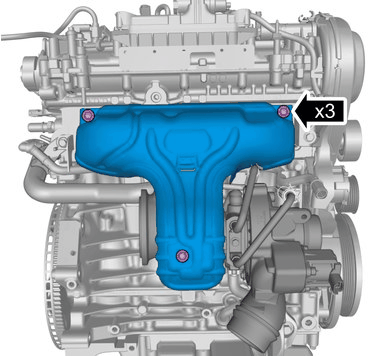

Courtesy of VOLVO CARS CORPORATION

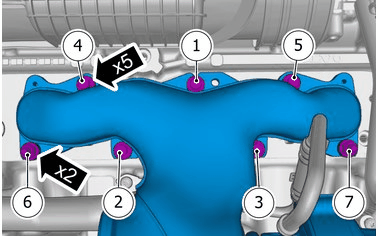

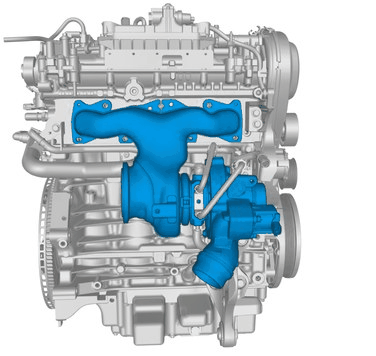

Install the following items:

Torque: Exhaust manifold to cylinder head, nut
- Stage 1: 20Nm
- Stage 2: 20Nm
Torque: Exhaust manifold to cylinder head, bolt
- Stage 1: 20Nm
- Stage 2: 20Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the following items:

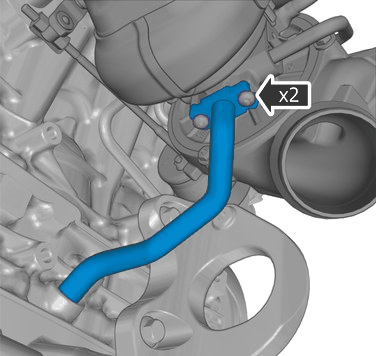

Torque: Oil pressure pipe to the turbocharger, 26Nm
Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

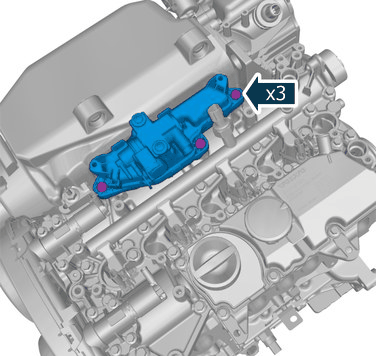

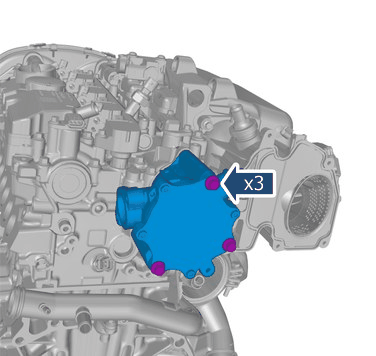

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Remove injector. Refer to: FUEL INJECTOR

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

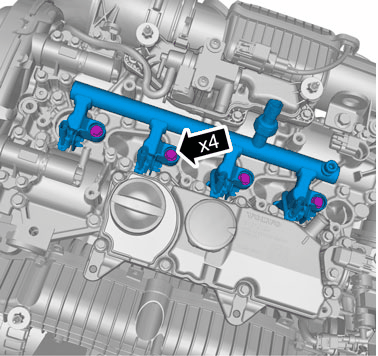

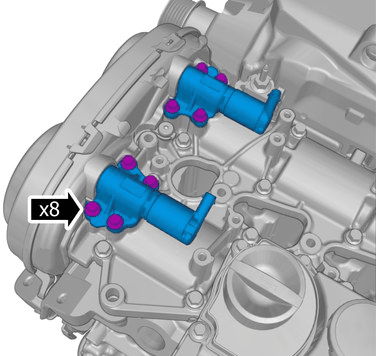

Install the marked component.

Install the screws.

Torque: Fuel rail, 20Nm

Courtesy of VOLVO CARS CORPORATION

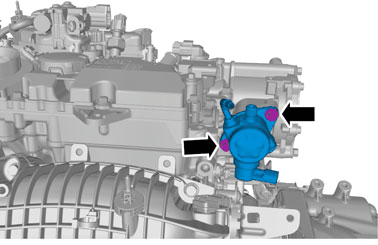

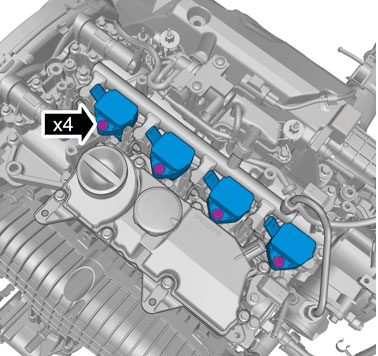

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10Nm

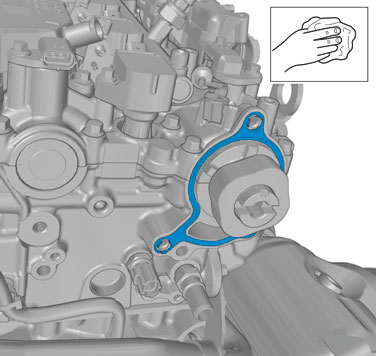

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Use lint free cloth.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol,

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the component is positioned correctly.

Install the marked component.

Use: Engine oil,

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

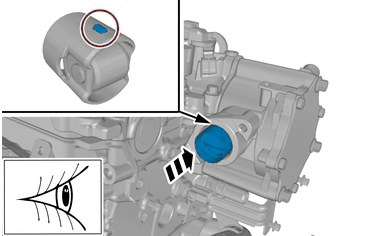

NOTE:

Make sure that a new component is installed.

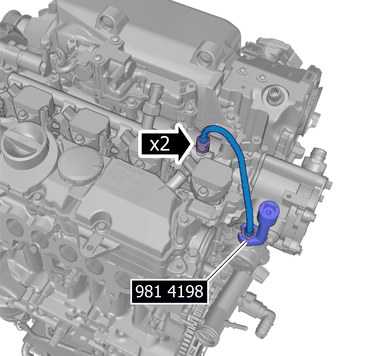

Install the marked component.

Special Tool: 981 4198 Crow foot

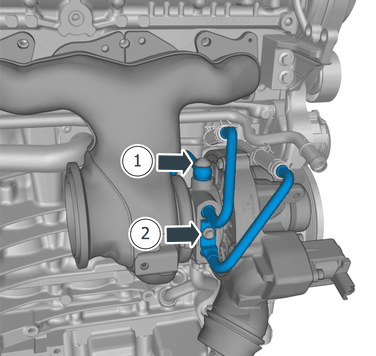

Torque: High-Pressure Fuel Line to Fuel Pump

Stage 1: 12Nm
Stage 2: 25Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Install the marked component.

Special Tool: 981 4207 Crow foot

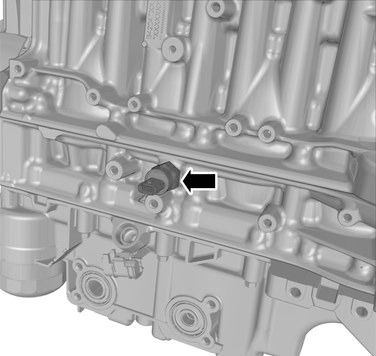

Torque: Oil pressure sensor, 15Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

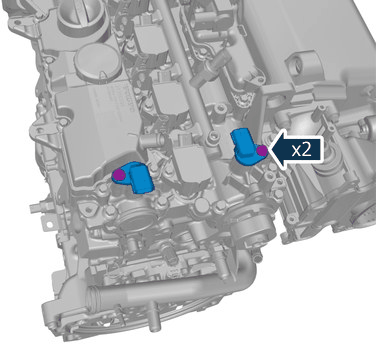

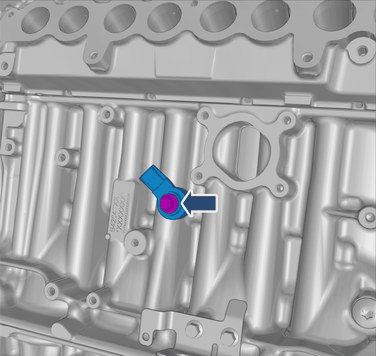

Install the marked component.

Install the screw.

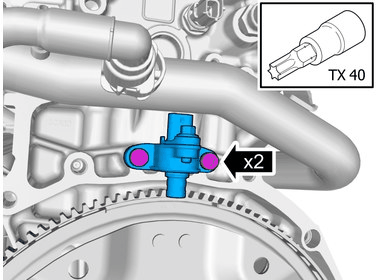

Torque: Knock sensor, 20Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

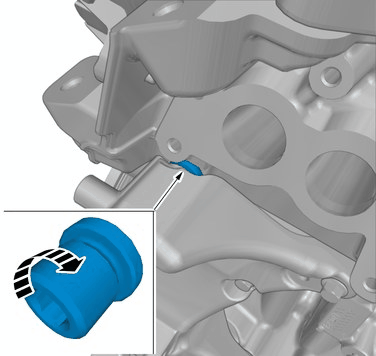

NOTE:

Make sure to turn the component until stop.

Courtesy of VOLVO CARS CORPORATION

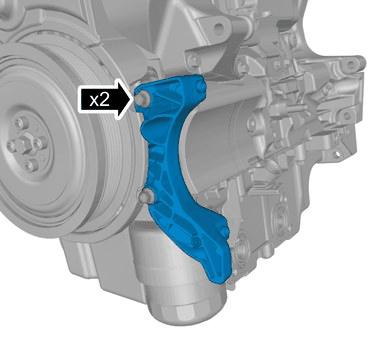

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the nut finger tight at this stage.

NOTE:

Make sure to turn the component until stop.

Courtesy of VOLVO CARS CORPORATION

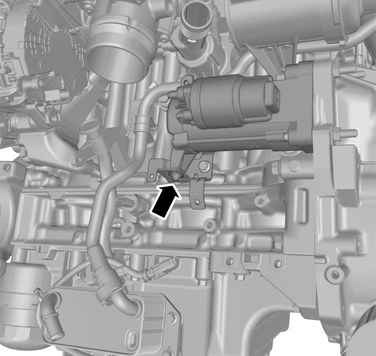

Install the screw.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

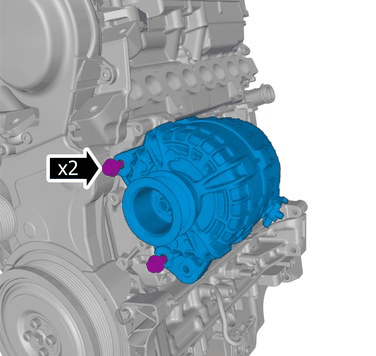

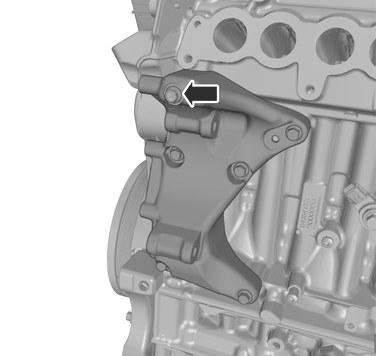

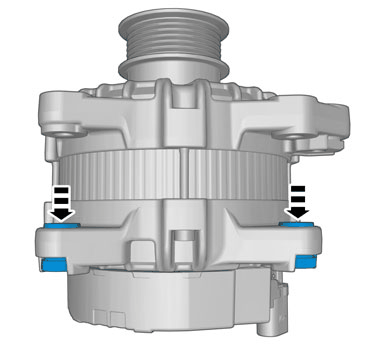

Install the marked component.

Install the screws.

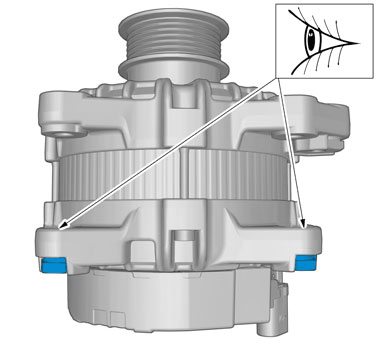

Torque: Alternator to auxiliary drive bracket, 48Nm

Courtesy of VOLVO CARS CORPORATION

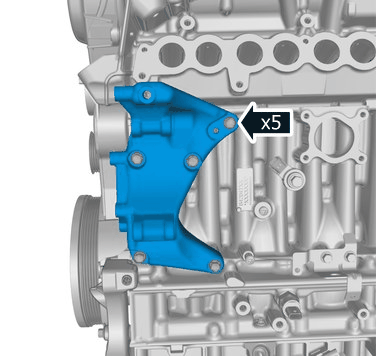

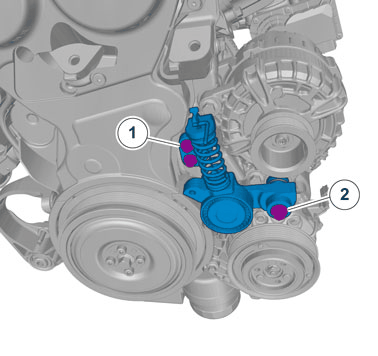

Install the marked component.

Install the screws.

Torque: M8, 24Nm
Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

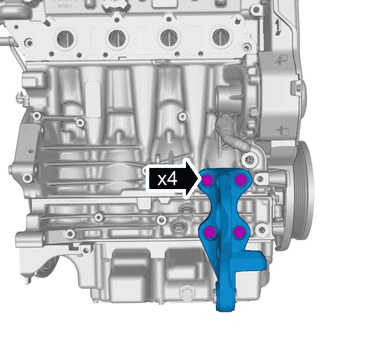

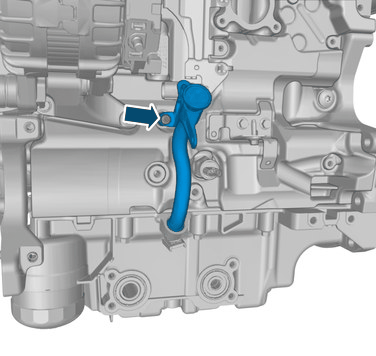

Install the marked component.

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

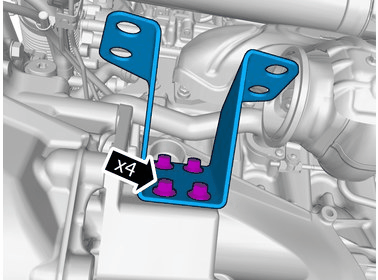

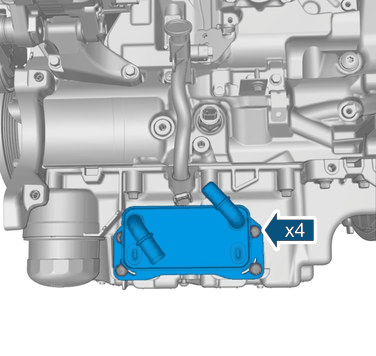

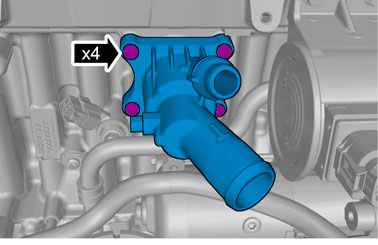

Install the marked component.

Install the screws.

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

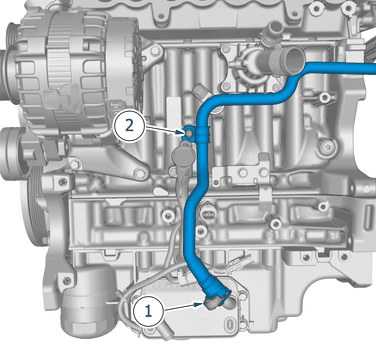

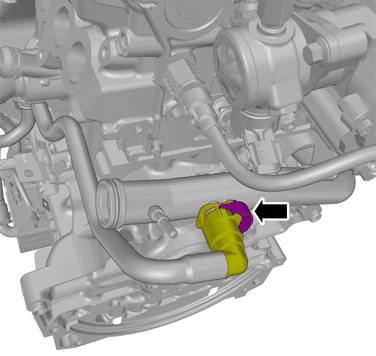

Install the hose.

Install the screw.

Assemble the following items:

A click confirms that the component is in the correct position.
Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the hose.

Depress the locking device.

A click confirms that the component is in the correct position.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

Install the marked component.

Install the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the Special Tool.

Install carrier plate. Refer to: CARRIER PLATE

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M7, 17Nm

Courtesy of VOLVO CARS CORPORATION

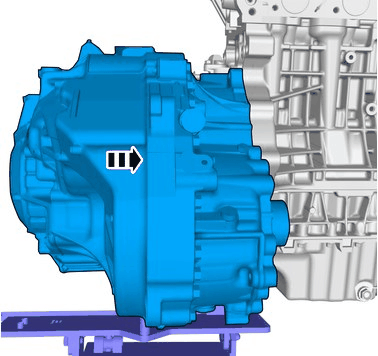

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

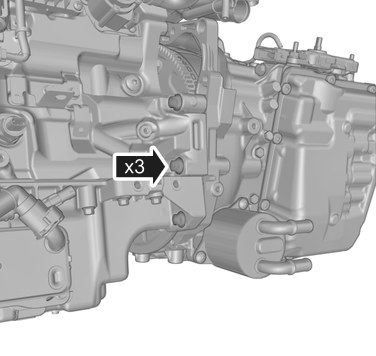

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

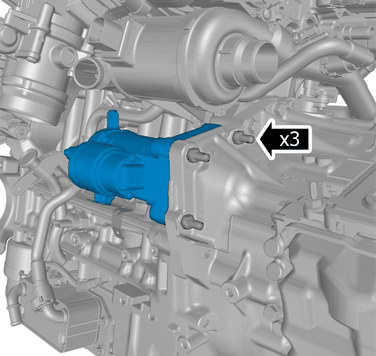

Install the marked component.

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

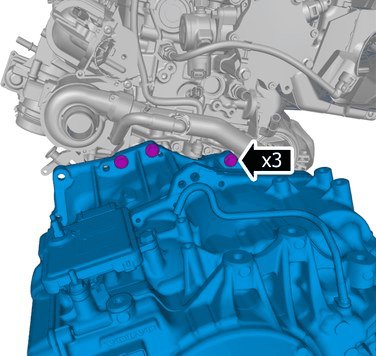

Install the nuts

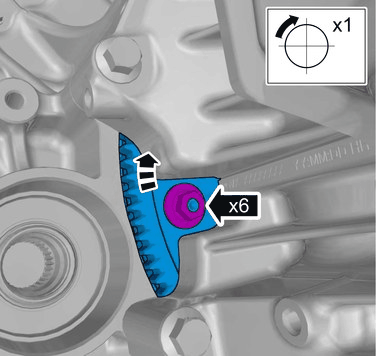

Torque: Torque converter, to Flexplate, 60Nm

Turn the engine

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24Nm
Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the bolts finger tight at this stage.

Install the marked component.

Install the screws.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

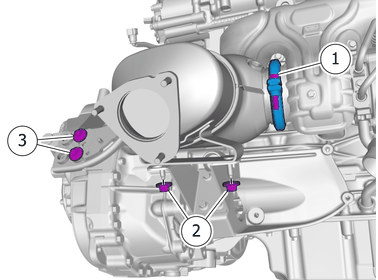

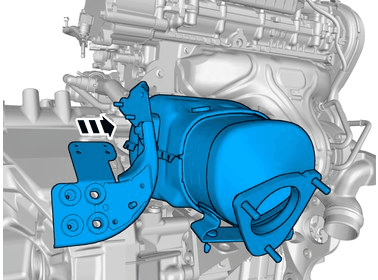

Install the marked component.

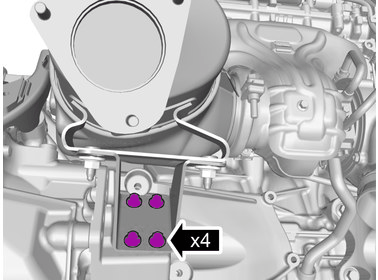

Torque: Clamp catalytic converter, 20Nm
Torque: M8, 24Nm
Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

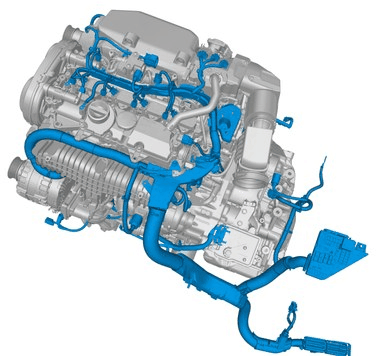

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.
