Engine Block, Installing Components [2021, B420T2, AWF8G45 AWD]: Installation

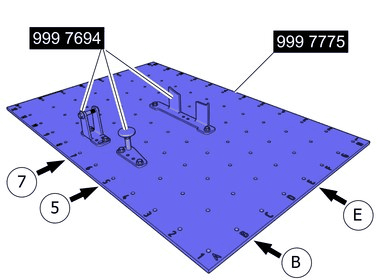

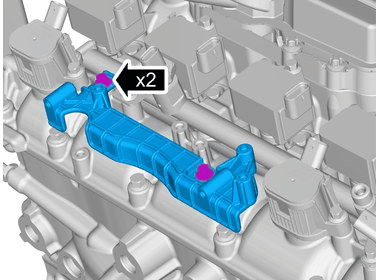

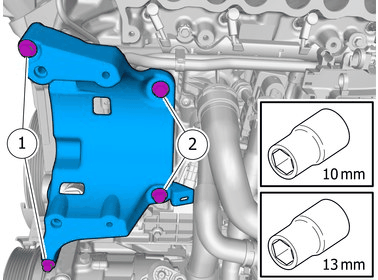

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24 Nm
Torque: M6, 10 Nm

Replace seal. Refer to: FUEL INJECTOR

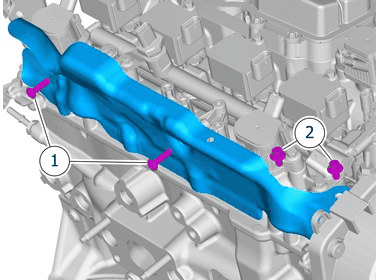

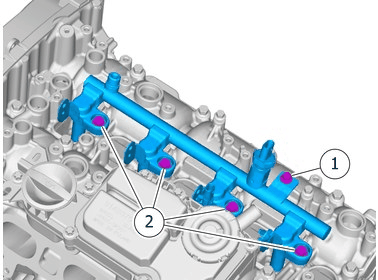

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10 Nm
Torque: Fuel rail, 22 Nm

Install the following items:

ignition coil. Refer to: IGNITION COIL
actuator, sliding camshaft exhaust. Refer to: CYLINDER DEACTIVATION ACTUATOR, EXHAUST
actuator, sliding camshaft intake. Refer to: CYLINDER DEACTIVATION ACTUATOR, INLET
camshaft position sensor, exhaust side. Refer to: CAMSHAFT POSITION SENSOR, EXHAUST SIDE
camshaft position sensor, inlet side. Refer to: CAMSHAFT POSITION SENSOR, INLET SIDE
VVT solenoid. Refer to: VVT SOLENOID

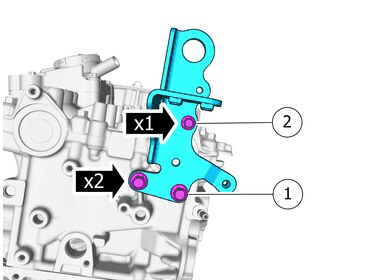

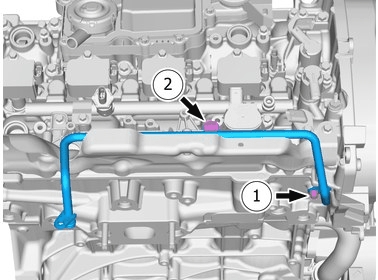

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10 Nm
Torque: M7, 17 Nm

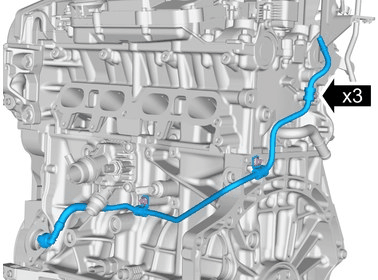

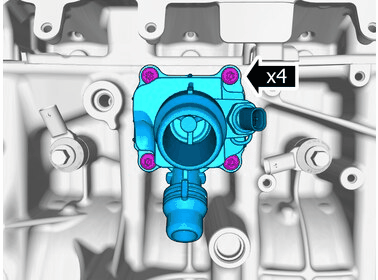

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the clip(s).

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the clip(s).

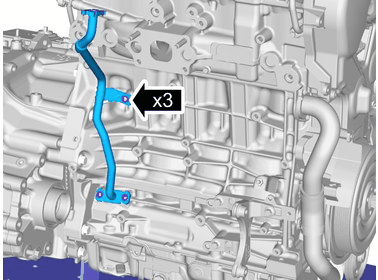

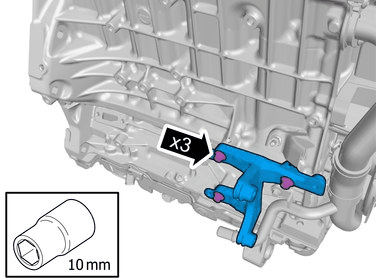

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10 Nm

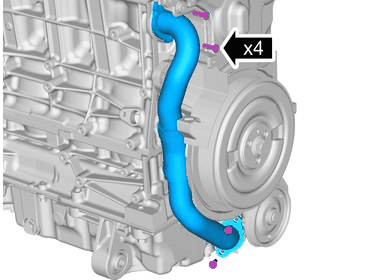

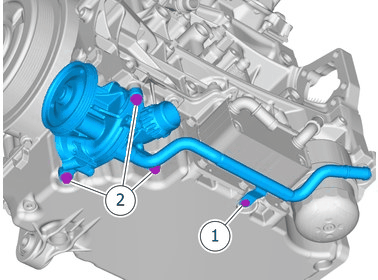

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M5, 5 Nm
Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10 Nm
Torque: M5, 5 Nm

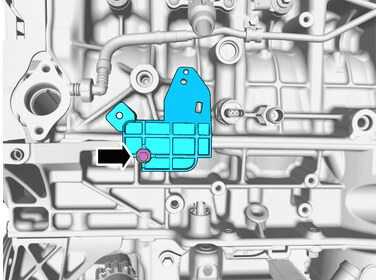

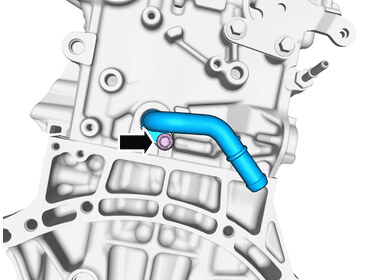

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screw.

Torque: M6, 10 Nm

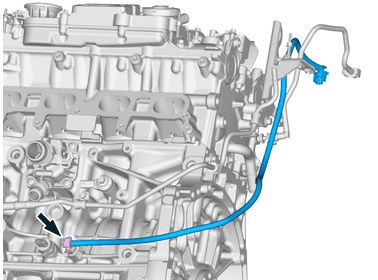

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the nut.

Torque: M6, 10 Nm

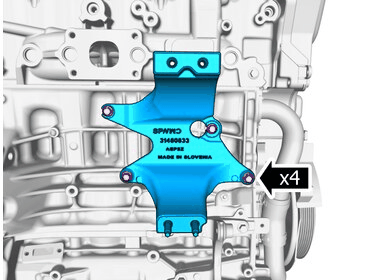

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24 Nm

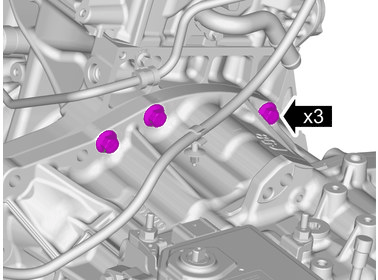

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M7, 17 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the marked component.

Install the screw.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

A click confirms that the component is in the correct position.

Install the hose.

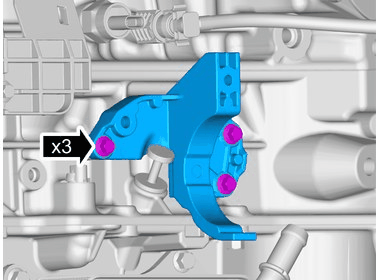

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M6, 10 Nm

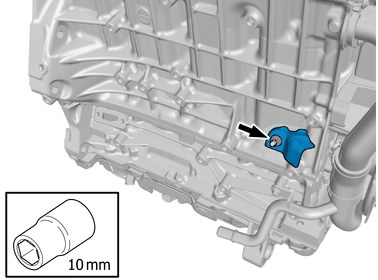

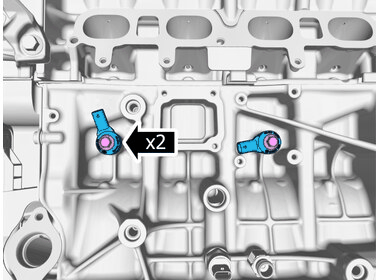

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the marked components.

Install the screws.

Torque: Knock sensor, 20 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Install the marked component.

Install the screws.

Torque: M6, 10 Nm

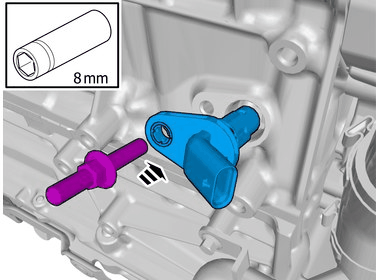

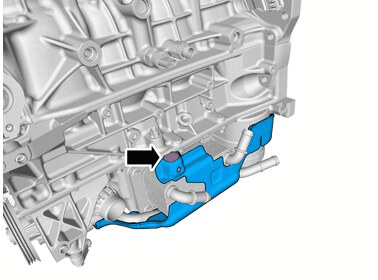

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screw.

Torque: M6, 10 Nm

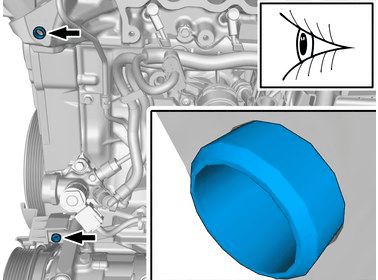

Courtesy of VOLVO CARS CORPORATION

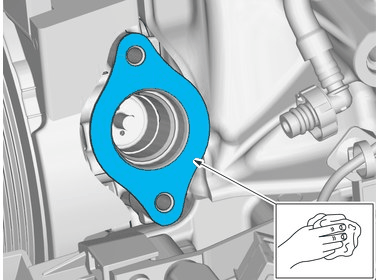

Clean the surface.

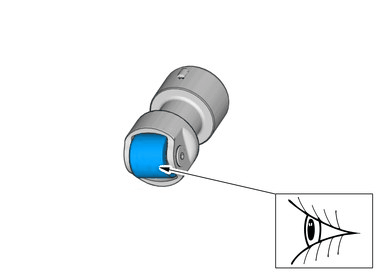

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Check the component. If it displays any type of damage, it must be replaced.

Check the surfaces for abrasion.

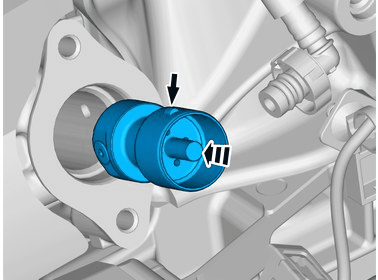

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

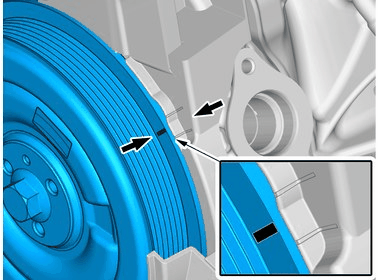

NOTE:

Make sure that the installation marks are aligned.

If necessary

Turn the engine

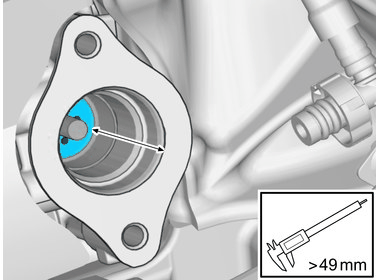

Courtesy of VOLVO CARS CORPORATION

Measure

Use: Vernier caliper

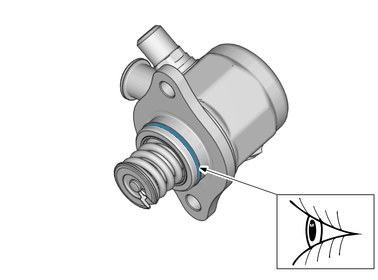

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Check the component. If it displays any type of damage, it must be replaced.

CAUTION:

Make sure that the seal remains correctly located.

NOTE:

Use a new seal.

Courtesy of VOLVO CARS CORPORATION

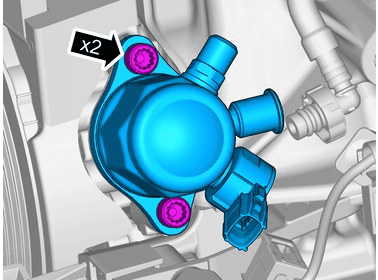

Install the marked component.

Install the screws.

Use hands only.

Tighten each bolt 1 turn at a time.

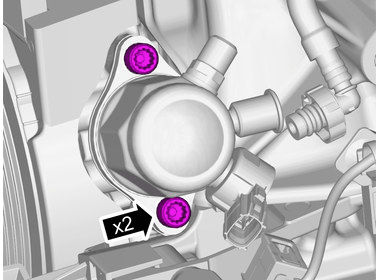

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Torque: Injection pump, 30 Nm

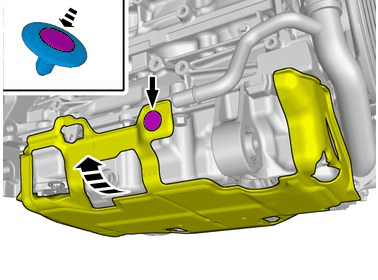

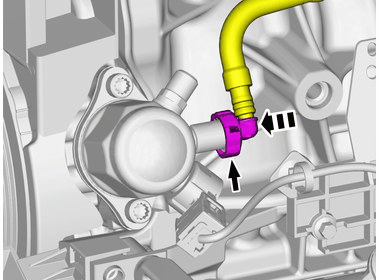

Courtesy of VOLVO CARS CORPORATION

NOTE:

A click confirms that the component is in the correct position.

Install the marked component.

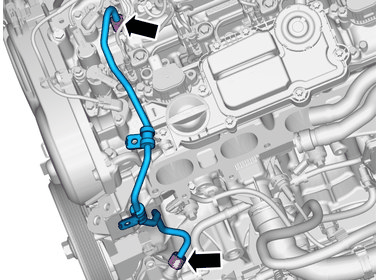

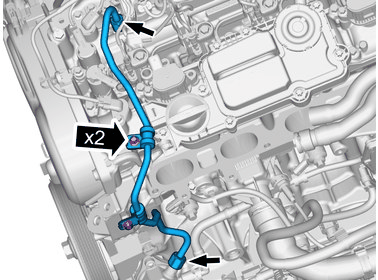

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the nuts finger tight at this stage.

Install the marked component.

Make sure to replace the marked component with a new.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M6, 10 Nm

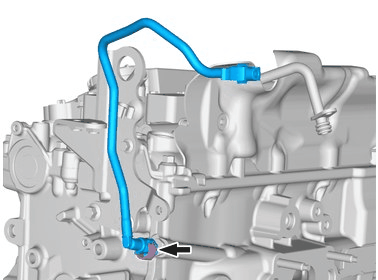

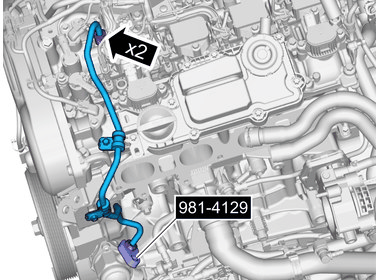

Courtesy of VOLVO CARS CORPORATION

Tighten the nuts.

Torque: High pressure fuel line

Stage 1: 18 Nm
Stage 2: 30 Nm

Special Tool: 981 4129 Hook wrench

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component is installed.

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24 Nm
Torque: M10, 50 Nm

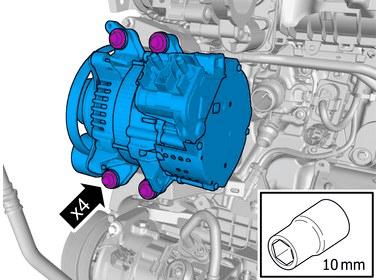

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: M8, 24 Nm

Courtesy of VOLVO CARS CORPORATION

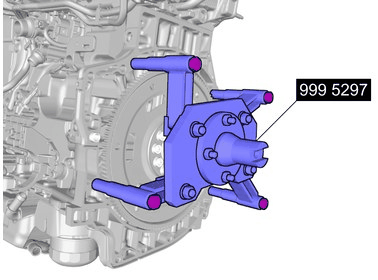

Remove the Special Tool.

Courtesy of VOLVO CARS CORPORATION

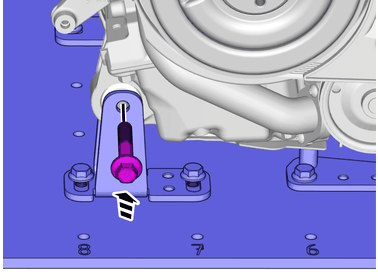

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

Install the screw.

Torque: M12, 80 Nm

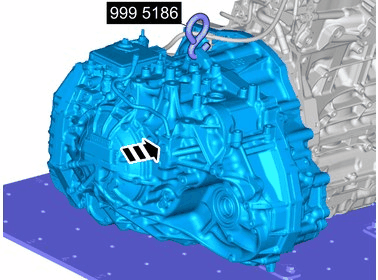

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the torque converter is kept in place when installed, to avoid the transmission getting damaged.

Install the marked component.

Special Tool: 999 5186 HOOK

Use: Engine lift

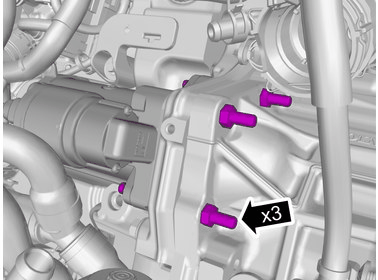

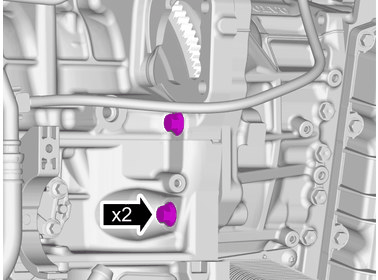

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

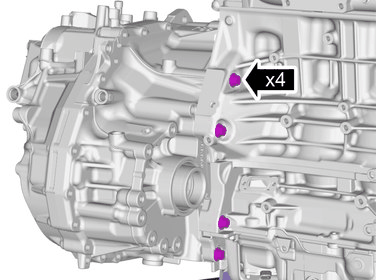

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

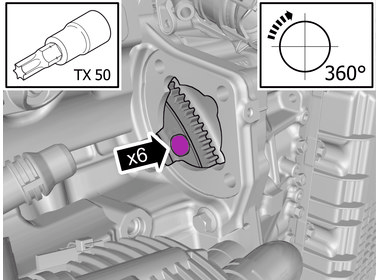

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Turn the engine

Torque: Torque converter, to Flexplate, 60 Nm

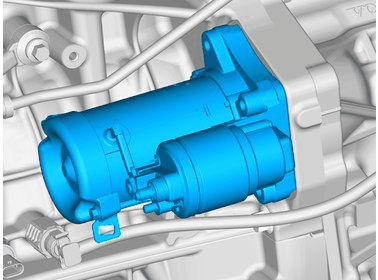

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: Starter motor, 50 Nm

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Install the screws.

Torque: Starter motor cover, 40 Nm

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Torque: M10, 50 Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use new seals.

Install the marked component.

Install the screws.

Torque: M6, 10 Nm

Courtesy of VOLVO CARS CORPORATION

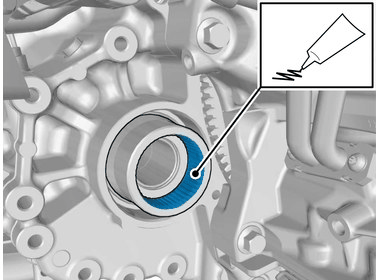

Use: Splines grease, 1161748

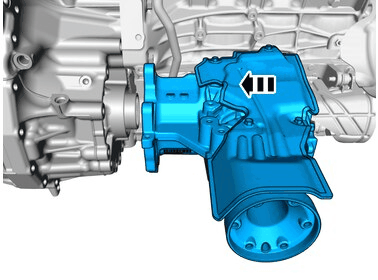

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Install all the bolts finger tight before final tightening.

Install the screws.

Torque: Bevel gear to transmission, 75 Nm

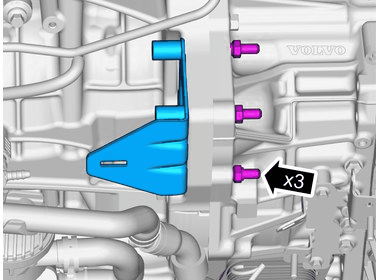

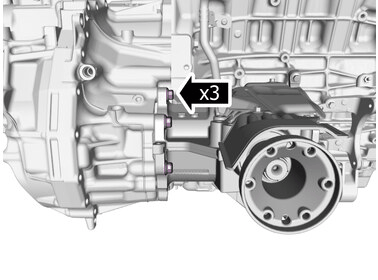

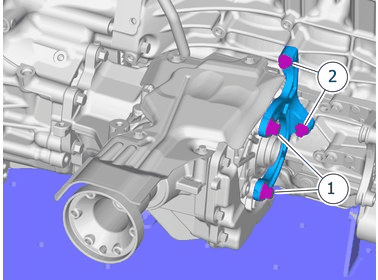

Courtesy of VOLVO CARS CORPORATION

NOTE:

Install all the bolts finger tight before final tightening.

Install the marked component.

Install the screws.

Torque: Bracket, to Bevel gear housing
- Stage 1: 50 Nm
- Stage 2: 120 Degree
Torque: Console to engine
- Stage 1: 18 Nm
- Stage 2: 90 Degree

Install the following items:

turbocharger. Refer to: TURBOCHARGER
water pump belt. Refer to: WATER PUMP BELT
the intake manifold. Refer to: INDUCTION PIPE

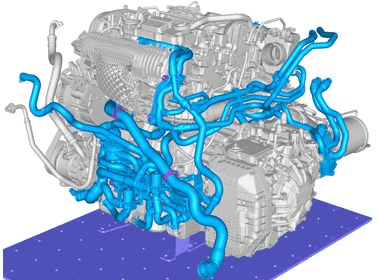

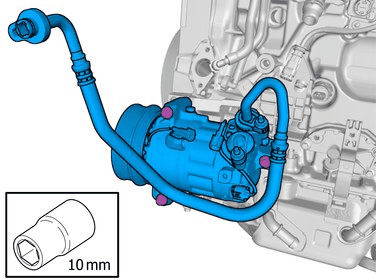

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the components are positioned correctly.

Install the hoses.

Tighten the hose clamps.

Install the screws.

Torque: M6, 10 Nm
Torque: M8, 24 Nm

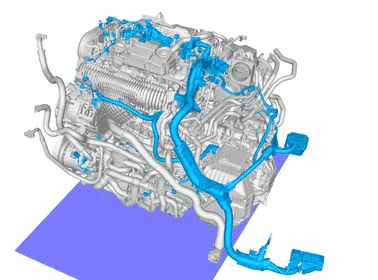

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the wire positions are correct.

Install the marked component.

Connect the connectors.

Install the screws.

Torque: M6, 10 Nm
Torque: M8, 24 Nm
Torque: Starter motor B+ terminal, 11 Nm
Torque: Start impulse lead, 6.5 Nm

Install the engine. Refer to: ENGINE
