Temperature Control Damper Motor, Front, Right, 4-Zone: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

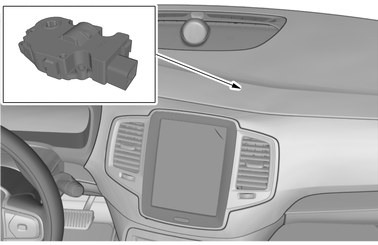

See information about part overview. Refer to: CLIMATE UNIT DAMPER MOTORS

Courtesy of VOLVO CARS CORPORATION

Remove the dashboard. Refer to: DASHBOARD

Courtesy of VOLVO CARS CORPORATION

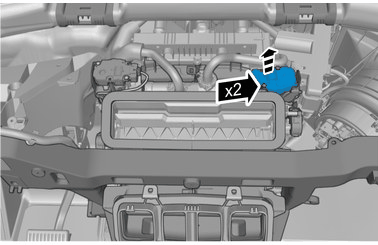

Remove the screws.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

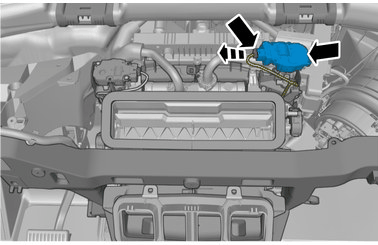

Disconnect the connector.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
