Fuse Panel Identification
Fuse Panel Identification
The fuse panel is located in the engine compartment, on the right side of the ventilation duct.

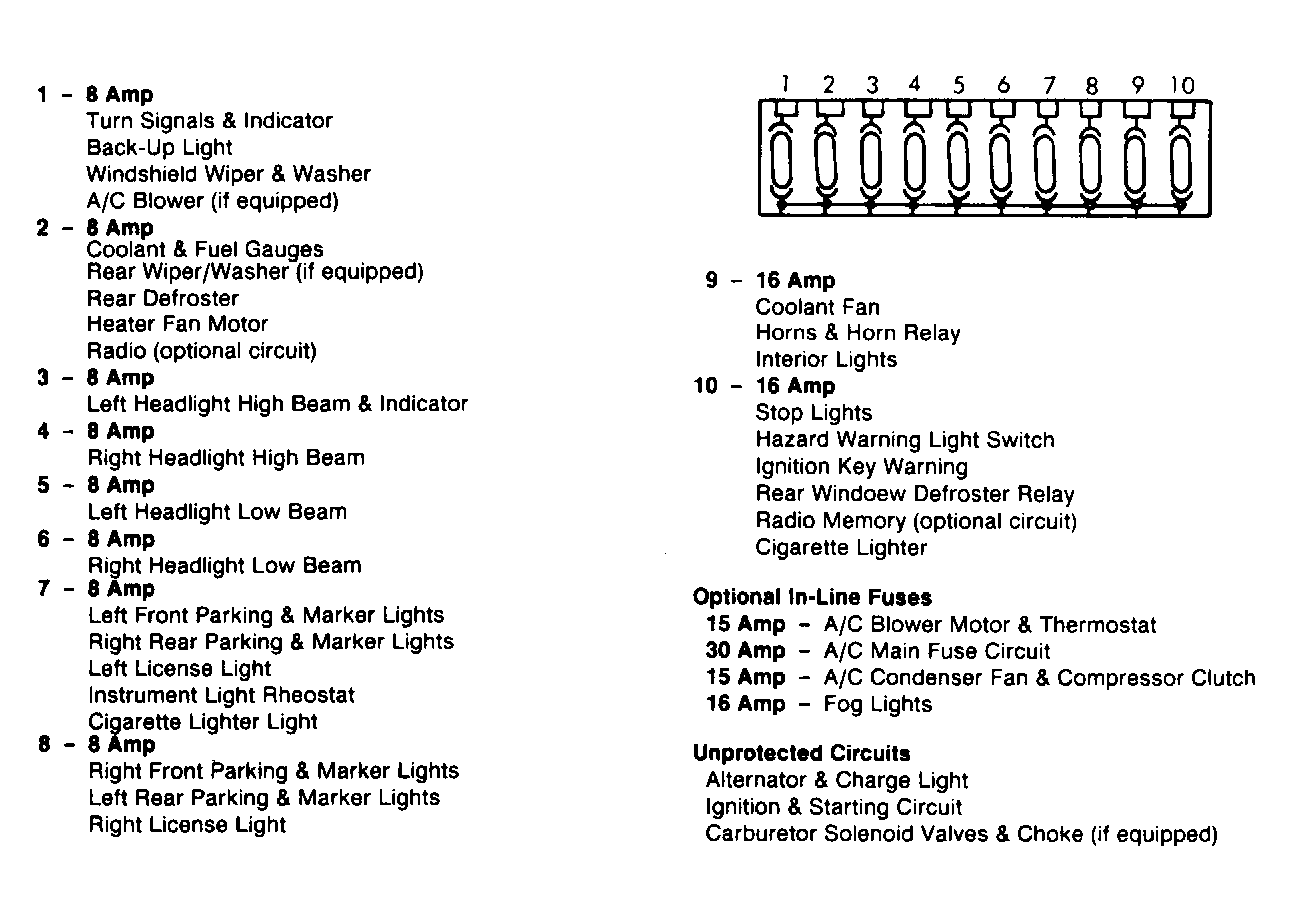

Fig 1: Fuse Panel Identification
Courtesy of YUGO OF AMERICA INC.
