Instrumental Panel: Assembly

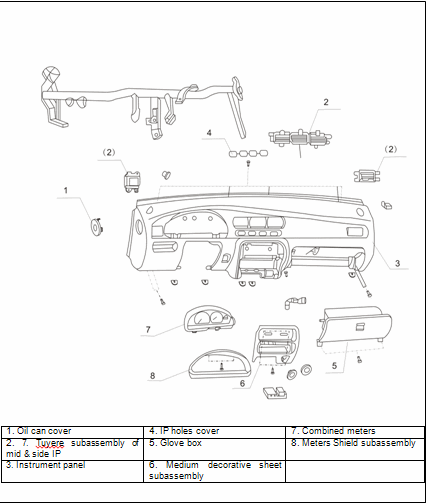

Fig 1: Removing/Installing Instrumental Panel Components In Sequence
G00499030Courtesy of LIUZHOU WULING MOTORS CO., LTD.
