Steering Wheel Components

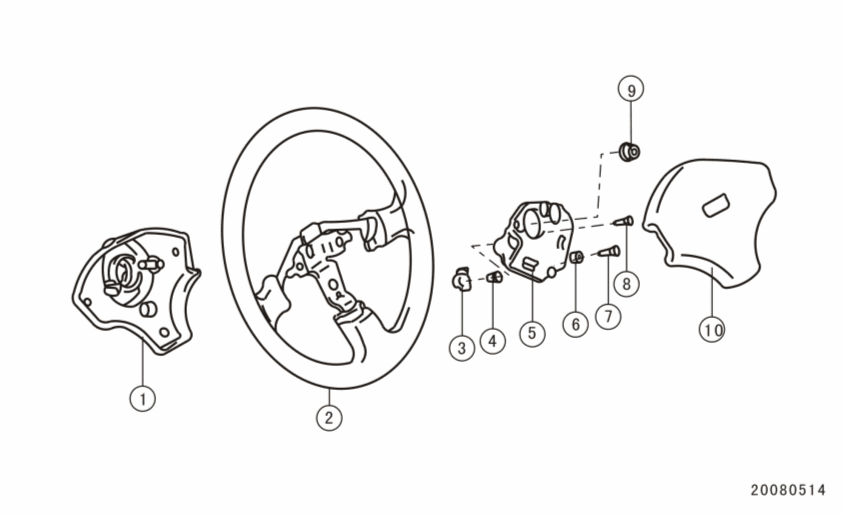

Fig 1: Identifying Steering Wheel Components

G00491798

Courtesy of LIUZHOU WULING SPECIAL PURPOSE VEHICLE MANUFACTURING CO. ,LTD

Item	Description
1	Steering wheel lower cover
2	Steering wheel body
3	Horn button
4	Horn button spring
5	Horn button touch pad
6	Washer
7	Screw
8	Screw
9	Lock nut
10	Steering Wheel Upper Cover
