Shift Lever Removal

  1. Shift the transmission into the R position.
  2. Remove the console panel and center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Remove the nut securing the shift cable end (A), then separate the end from the shift lever assembly.

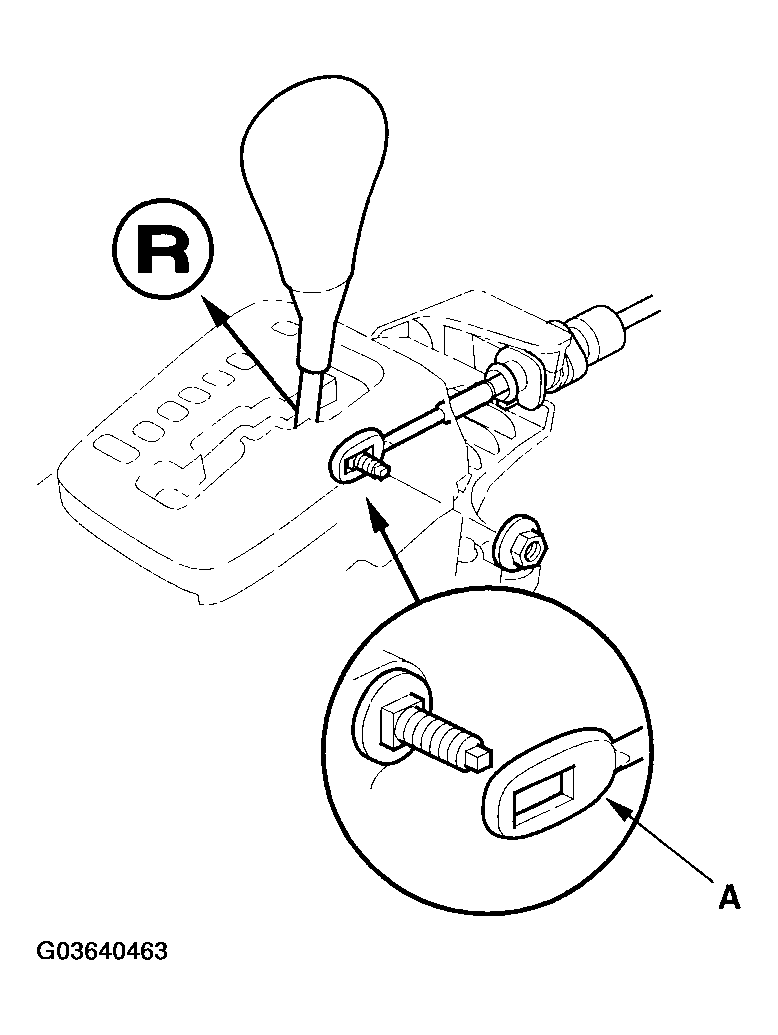

    Fig 1: Removing Shift Cable End
    G03640463Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Rotate the socket holder (A) on the shift cable (B) counterclockwise a quarter turn, then slide the holder to remove the shift cable from the shift lever bracket base (C).
    NOTE: Do not remove the shift cable by twisting the shift cable guide (D) and damper (E).

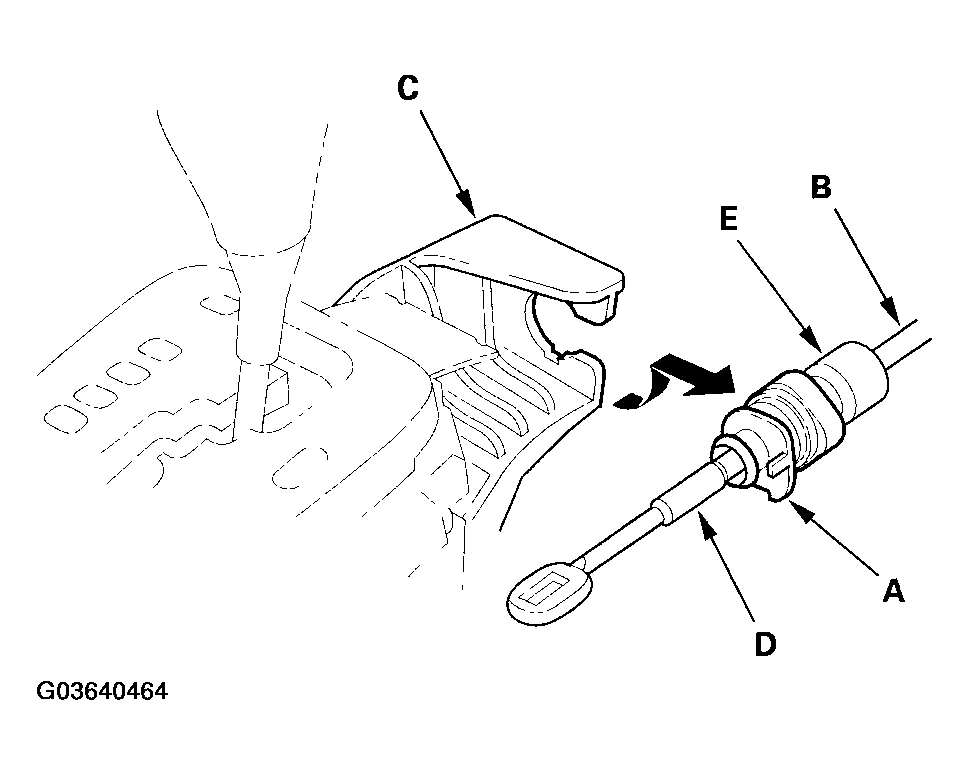

    Fig 2: Removing Shift Cable From Shift Lever Bracket Base
    G03640464Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the shift lock solenoid connector (A) and the switch assembly connector (6P) (B).

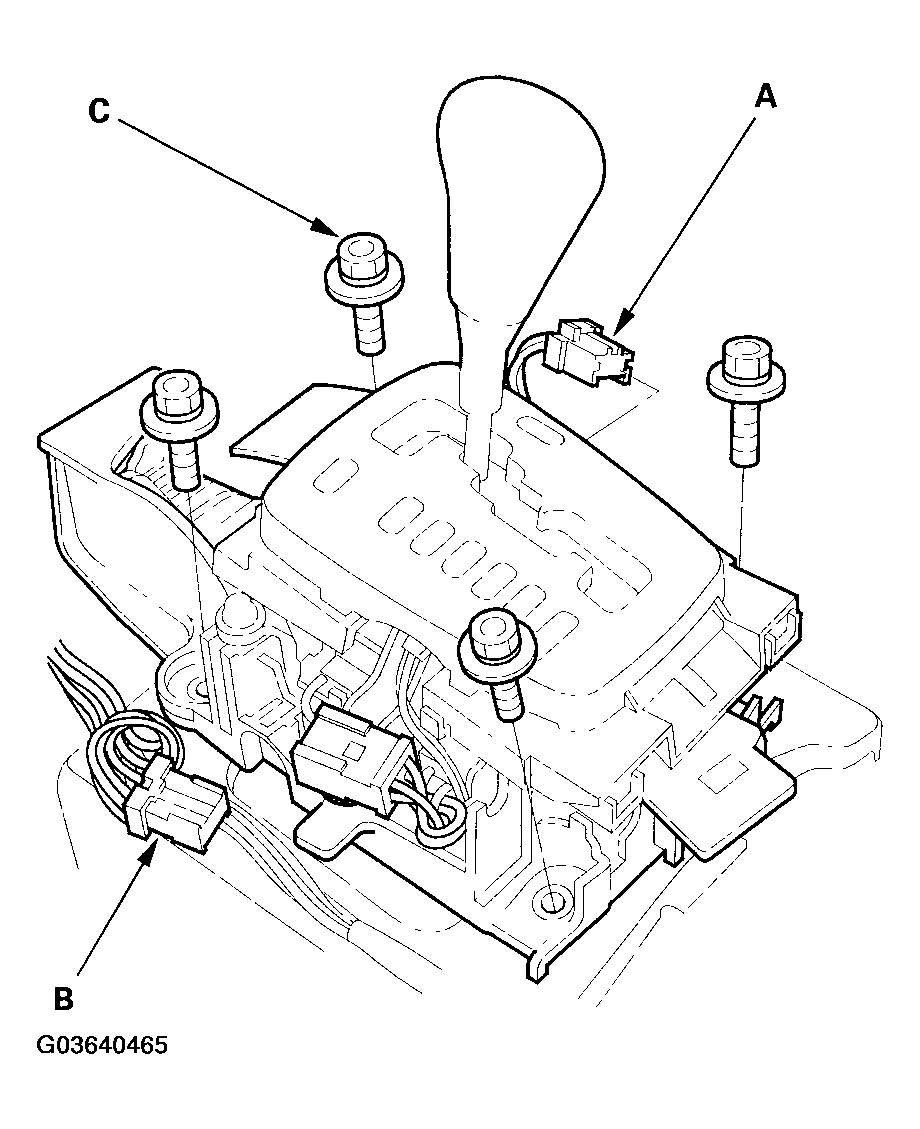

    Fig 3: Disconnecting Shift Lock Solenoid Connector And Switch Assembly Connector (6P)
    G03640465Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the four bolts (C) securing the shift lever bracket base, then remove the shift lever assembly.
