Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools.
  1. Make sure the ignition switch is OFF.
  2. Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
  3. Disconnect the sensor connector (A).

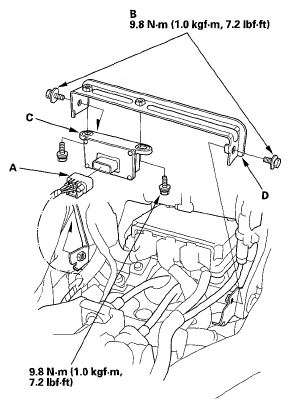

    Fig 1: Sensor Bracket Mounting Bolts And Yaw Rate-Lateral Acceleration Sensor With Torque Specifications
    G05461944Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the sensor bracket mounting bolts (B).
  5. Remove the yaw rate-lateral acceleration sensor (C) with the bracket (D).
  6. Remove the sensor from the bracket.
  7. Install the yaw rate-lateral acceleration sensor in the reverse order of removal.
  8. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
