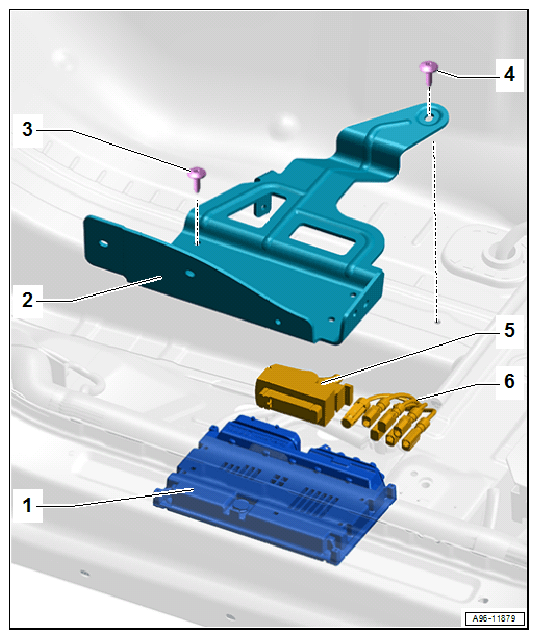

5.1.2 Component Location Overview - Driver Assistance Systems Control Module: Notes
- Driver Assistance Systems Control Module - J1121-
- There are different versions.
- Removing and installing. Refer to 5.3 Driver Assistance Systems Control Module - J1121-, Removing and Installing .
- Mount
- There are different versions
- For the Driver Assistance Systems Control Module - J1121-
- Bolt
- 8 Nm
- Small mount: quantity: 3
- Large mount: quantity: 4
- Bolt
- Small mount: quantity: 3; tightening sequence. Refer to Small Mount for Driver Assistance Systems Control Module - Tightening Specification and Sequence
- Large mount: quantity: 5; tightening sequence. Refer to Large Mount for Driver Assistance Systems Control Module - Tightening Specification and Sequence
- Connector
- Connectors
