Housing Structure
The GS7D36SG transmission housing consists of three main components:
- The transmission housing
- The intermediate Case
- The rear housing cover
The main opening at the front is closed with the clutch cover. The case openings on the right side are closed with the mechatronics/hydraulic components cover. The lower openings are closed with the oil sump cover and on the left side with the oil filter cover.

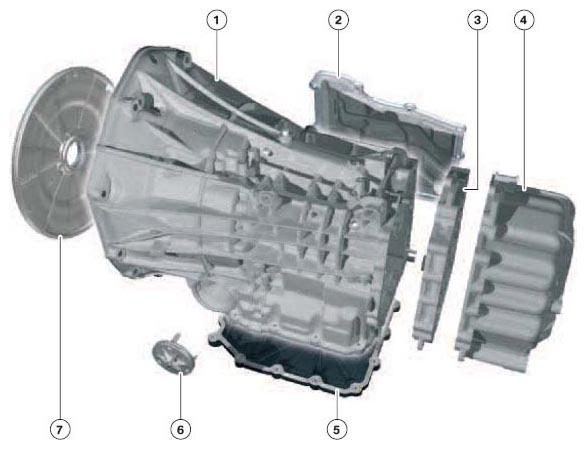

EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Transmission housing |
| 2 | Cover for the Mechatronics module or hydraulic components cover |
| 3 | Intermediate case |
| 4 | Rear housing cover |
| 5 | Sump |
| 6 | Oil filter cover |
| 7 | Clutch cover |
