Operation and Power Flow: Notes

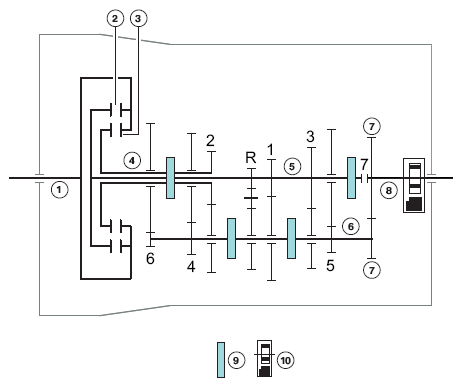

Courtesy of BMW OF NORTH AMERICA, INC. EXPLANATION REFERENCE CHART
| Index |
Explanation |
| 1 |
Central input shaft with clutch input |
| 2 |
Clutch 1 |
| 3 |
Clutch 2 |
| 4 |
Inner input shaft 2 |
| 5 |
Inner input shaft 1 |
| 6 |
Countershaft |
| 7 |
Constant gears |
| 8 |
Output shaft |
| 9 |
Sliding clutches |
| 10 |
Parking lock |
