52 26... Removing and installing outer fold adapter
Necessary preliminary tasks:
- Remove OUTER FOLD TRIM
- Remove REAR PANEL TRIM
- Partially remove seat cover with padding . See 52 26 400 REPLACING SEAT COVER FOR LEFT REAR SEAT or 52 26 400 REPLACING SEAT COVER FOR RIGHT REAR SEAT
Release screw.

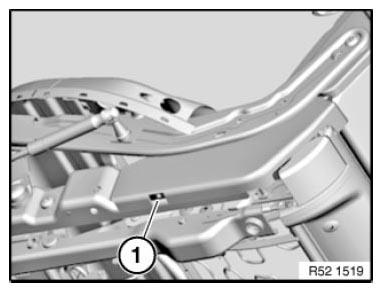

Release screw (1).

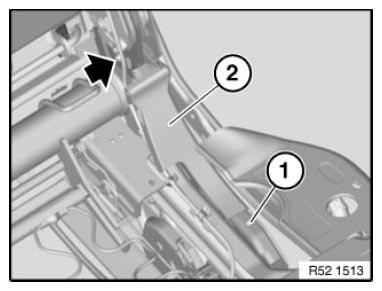

Release screw (1).
Unclip trim (2) at top.

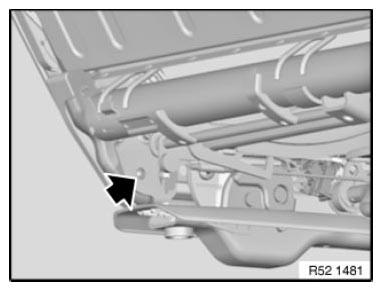

Carefully tighten follower on seat cushion frame.
Feed trim (2) out of seat mechanism.
