Installing coat hook
Check

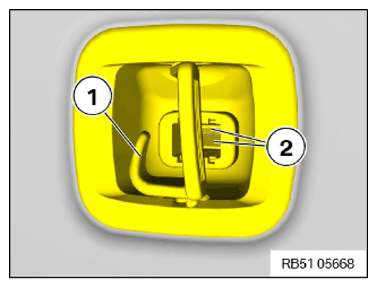

- Check guide pin (1) and retaining clip (2) for damage.
Courtesy of BMW OF NORTH AMERICA, INC.
|
Result
» Guide pin (1) or retaining clip (2) is damaged.
Measure

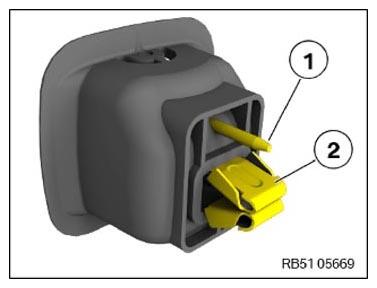

- Position coat hook (1) on headliner and insert.
- Correctly lock coat hook (1) in place with retaining clips (2).
Courtesy of BMW OF NORTH AMERICA, INC.
|
