Installing left thrust arm
NOTE:
RISK OF DAMAGE
Damage to components on the rear axle.
Removing both thrust arms simultaneously may lead to serious damage to the rear axle.
Damage to components on the rear axle.
Removing both thrust arms simultaneously may lead to serious damage to the rear axle.
- Only remove or replace thrust arms individually.
- When lowering or removing the rear axle: Support the rear axle support before both thrust arms are removed.

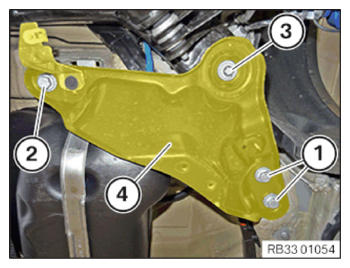

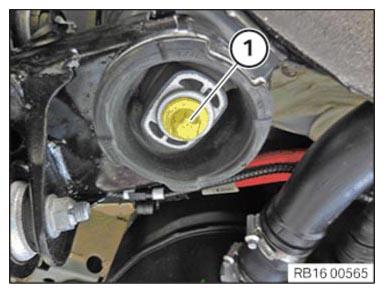

- Loosen screw (1).
- Replace screws (1), (2) and (3).
Parts : Screws
- Position thrust arm (4).
- Tighten screws (1), (2) and (3) a few turns.
- Tighten down screw (3).TIGHTENING TORQUE SPECIFICATION
Rear axle carrier to body M12
Replace screwJoining torque 100 Nm Angle of rotation 90° - Tighten screws (1) and (2).TIGHTENING TORQUE SPECIFICATION
Compression strut to high-voltage battery unit M10
Replace screw.Tightening torque 56 Nm
