Installing the undershield
Installing the undershield

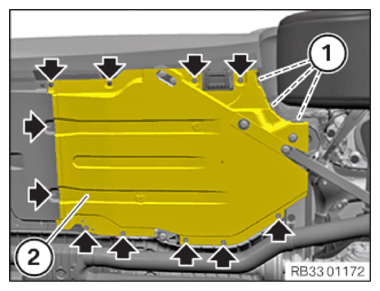

Position the undershield
(2)
.
Tighten screws and nuts (arrows).
Tighten the screws
(1)
.
TIGHTENING TORQUES SPECIFICATION
Undershield, side
Hexagon screw
Tightening torque
2.6 Nm
Plastic nut
Tightening torque
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
