Remove spring strut

Unlock and disconnect plug connection (1) at the spring strut.
Remove cable from holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.
Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

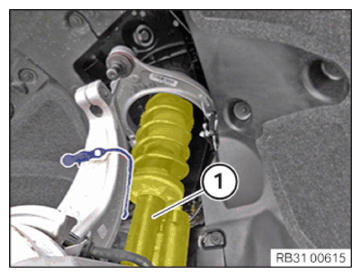

Feed out and remove spring strut (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
