Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

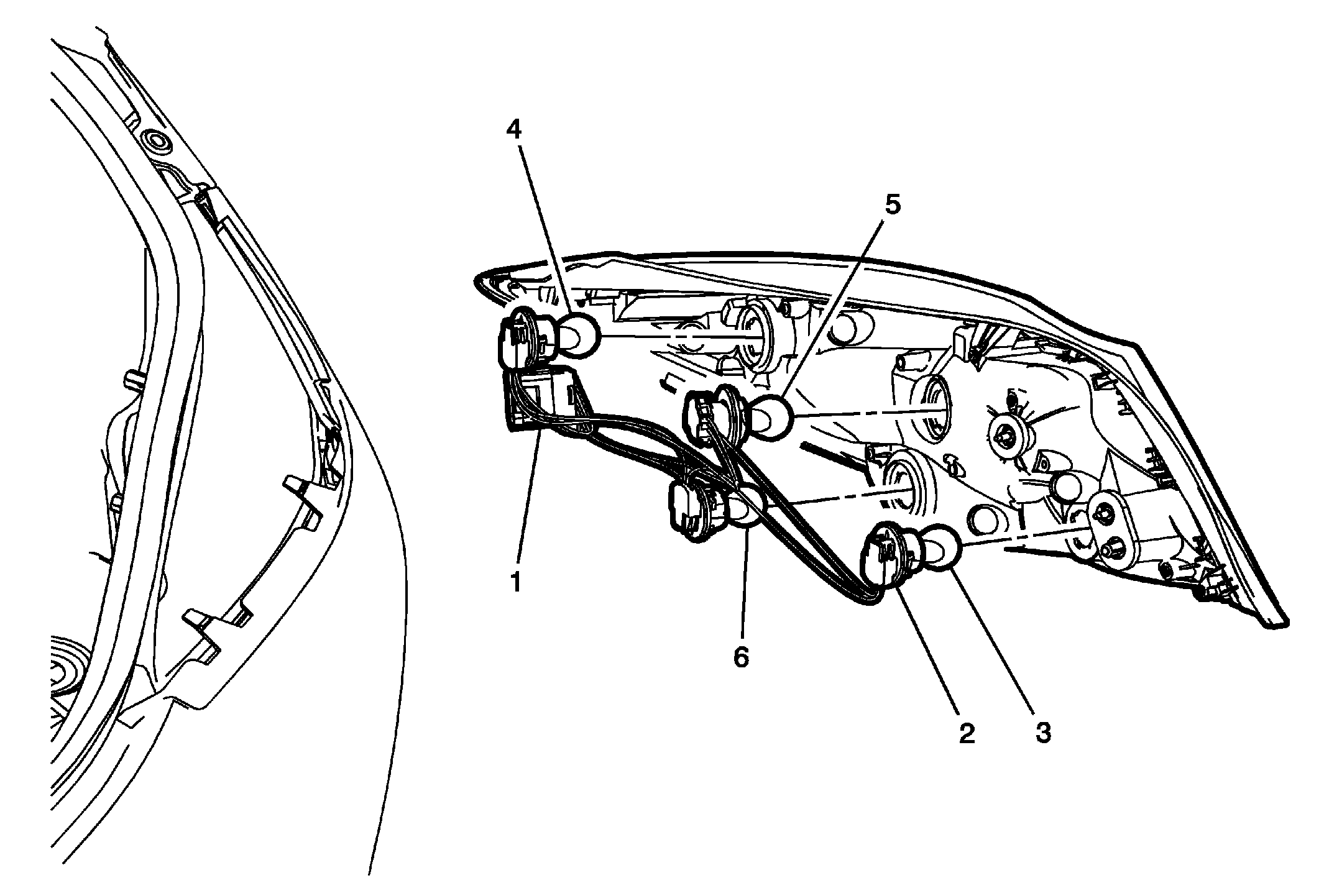

Fig 1: Tail Lamp Bulb Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the rear compartment lid. Remove either the right or left rear tail lamp assembly. Refer to Tail Lamp Replacement .
1	Tail Lamp Bulb Electrical Harness
2	Back Up Bulb Socket (Qty: 2) TIP: Rotate the bulb socket counterclockwise and remove from the tail lamp housing.
3	Back Up Bulb (Qty: 2) TIP: Pull the bulb from the bulb socket and replace.
4	Running Lamp Bulb Socket (Qty: 2)
5	Running Lamp Bulb (Qty: 2)
6	Stop and Turn Signal Lamp Bulb
