Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

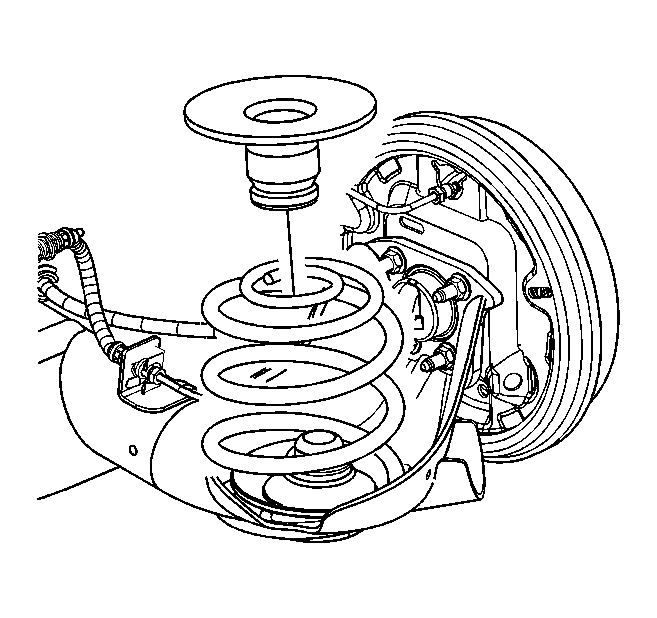

Fig 1: View Of Upper Spring Seat/Jounce Bumper

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The rear springs are indexed with the colored tag toward the rear of the vehicle. No up/down or side to side orientation is required.

Install the upper spring seat/jounce bumper on the spring.

Fig 2: View Of Coil Spring

Courtesy of GENERAL MOTORS CORP.

Raise the rear axle in order to seat rear spring. Refer to Coil Spring Replacement .
Lower the vehicle.
