Installation Procedure

  1. GM4806902

    Rear Side Door Window Weatherstrip (1) - Install

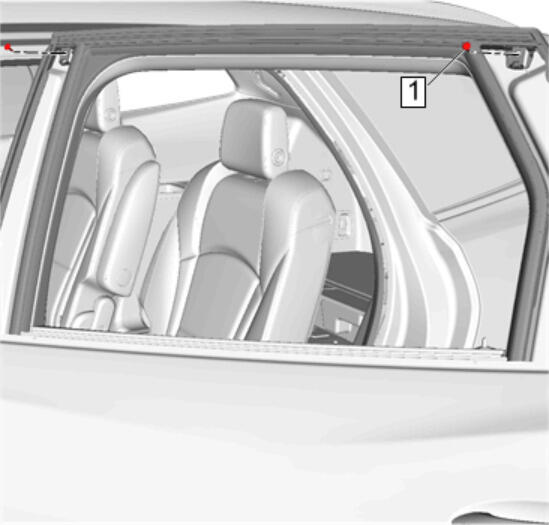

  2. GM4806886
    CAUTION:

    Refer to Fastener Caution .

    Rear Side Door Window Weatherstrip Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

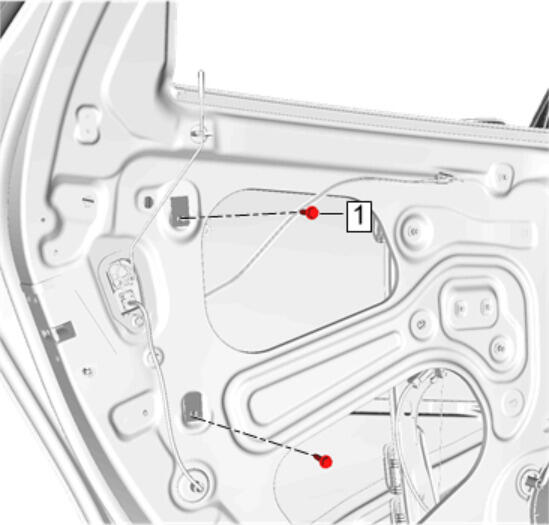

  3. GM4806891

    Rear Side Door Window Channel Retainer Bolt (1) - Install and tighten [2x] 11 N.m (97 lb in)

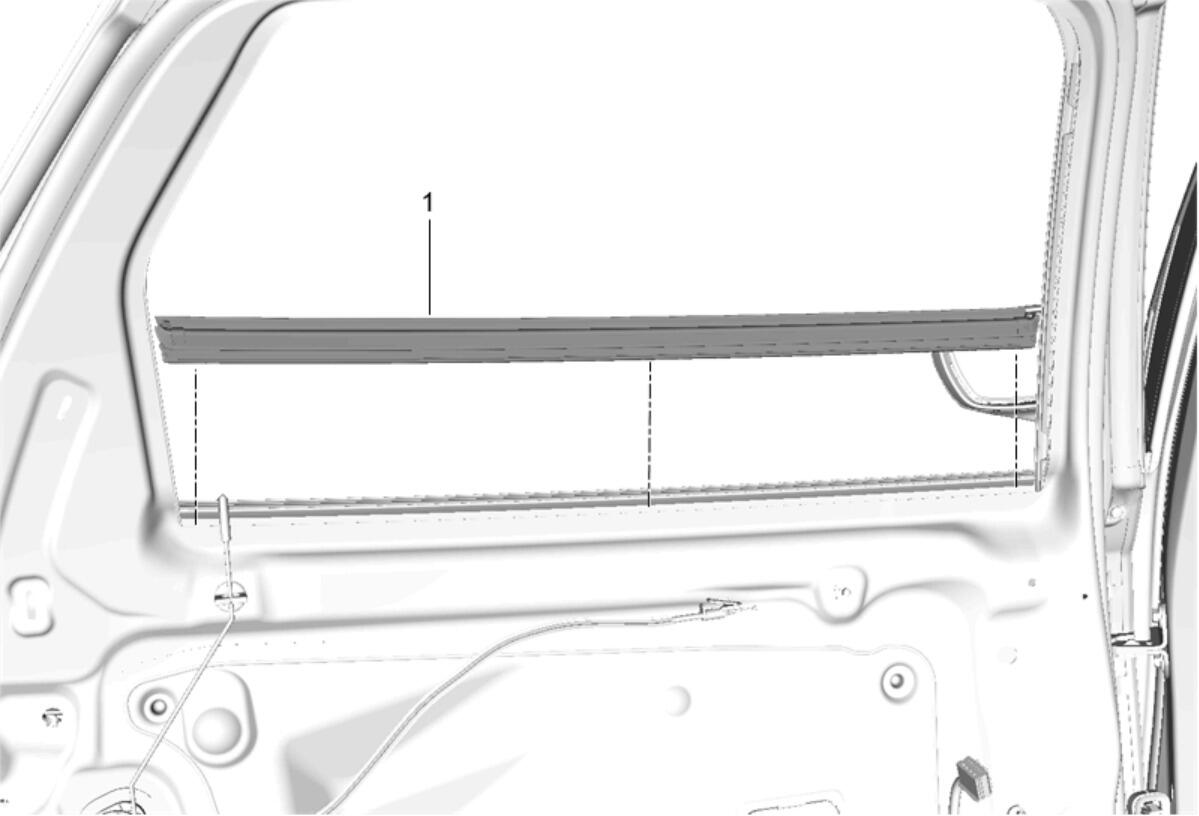

  4. GM4807212

    Rear Side Door Window Inner Sealing Strip - Install - Rear Side Door Window Inner Sealing Strip Replacement

  5. Rear Side Door Water Deflector - Install - Rear Side Door Water Deflector Replacement
  6. GM4799522

    Rear Side Door Window Frame Front Applique (2) - Install - Rear Side Door Window Frame Front Applique Replacement

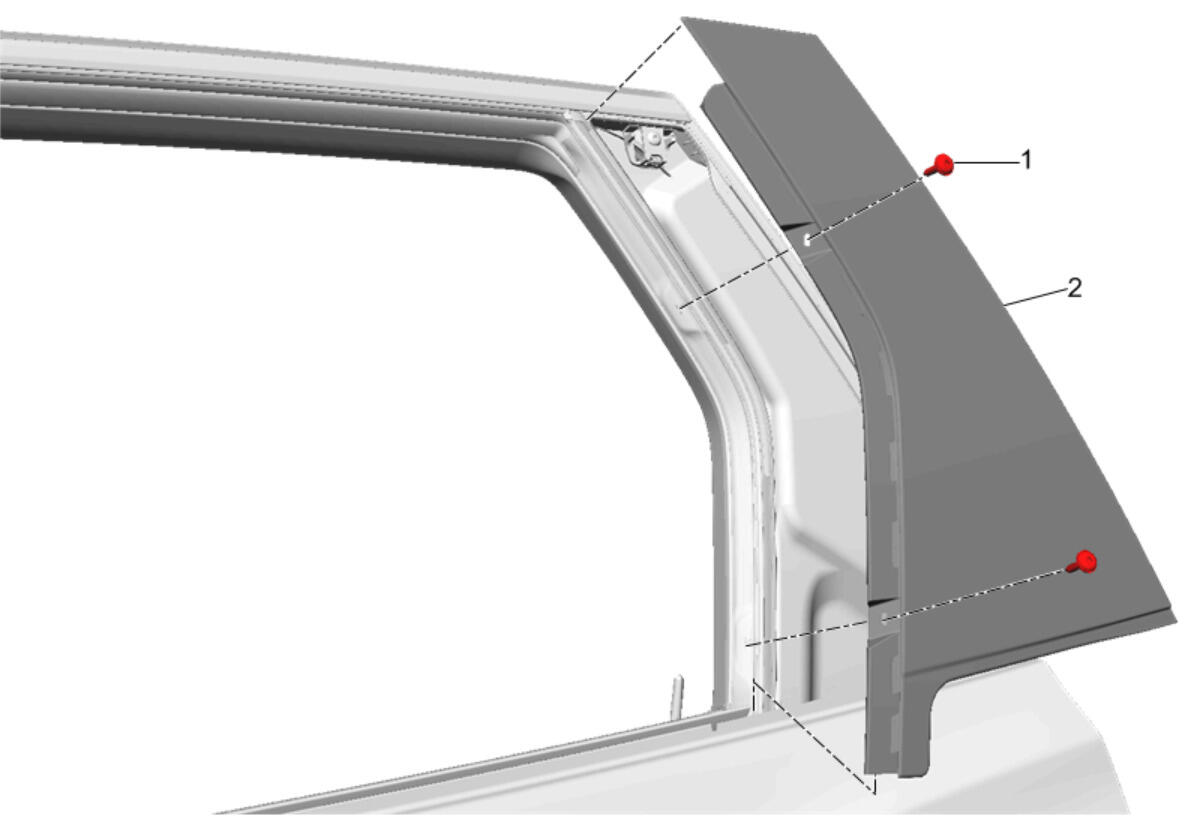

  7. GM4796820

    Rear Side Door Window Frame Rear Applique (2) - Install - Rear Side Door Window Frame Rear Applique Replacement

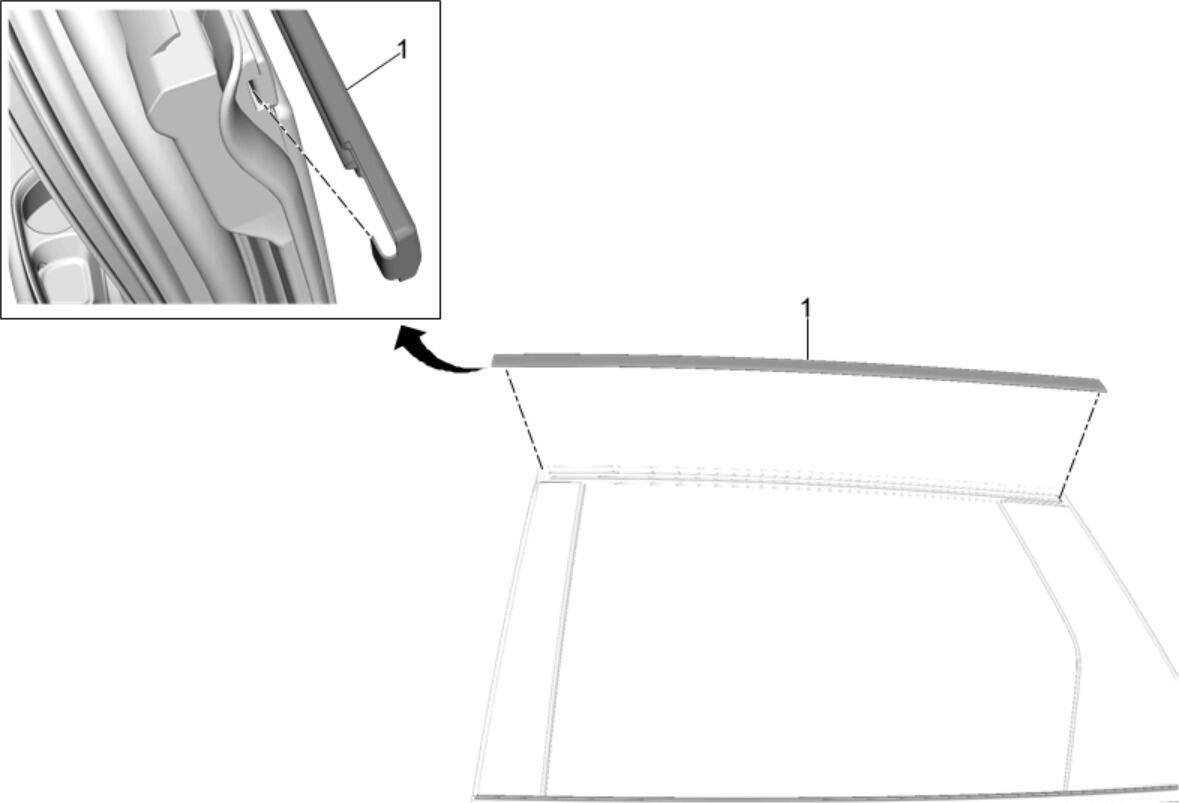

  8. GM4796337

    Rear Side Door Window Upper Reveal Molding (1) - Install - Rear Side Door Window Upper Reveal Molding Replacement
