Installation Procedure

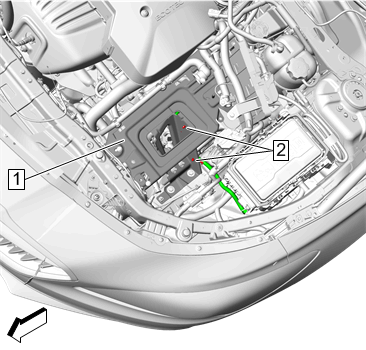

Engage the retainer (2) and 2 clips (1) to the drive motor generator power inverter module bracket.

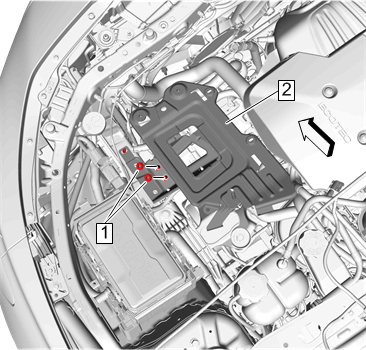

Drive Motor Generator Power Inverter Module Bracket (2) - Install

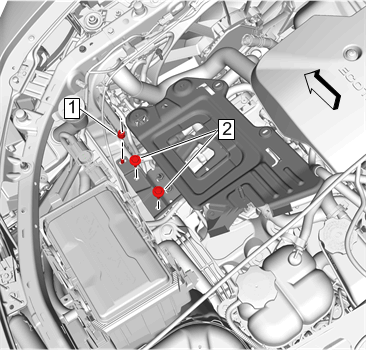

- Drive Motor Power Inverter Module Bracket Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Drive Motor Power Inverter Module Bracket Bolt (2) - Install and tighten [2x] 22 N.m (16 lb ft)
- Drive Motor Power Inverter Module Bracket Nut (1) - Install and tighten 22 N.m (16 lb ft)

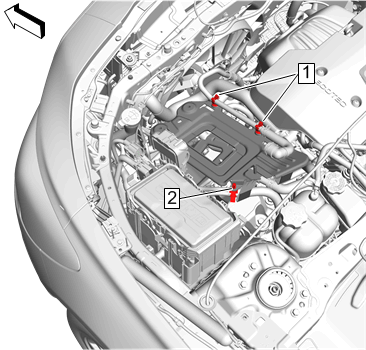

Retainer (2) @ Drive Motor Generator Power Inverter Module Bracket (1) - Engage [2x]
Install the engine control module bracket (2). Engine Control Module Bracket Replacement

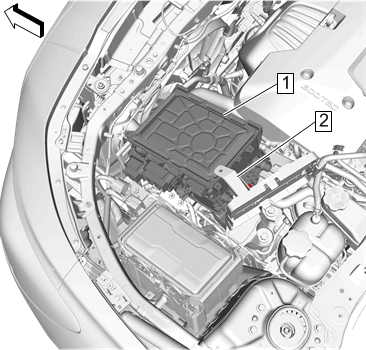

- Generator Control Module (1) - Install - Generator Control Module Replacement
CAUTION:
Refer to Fastener Caution
