Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement (Encore)

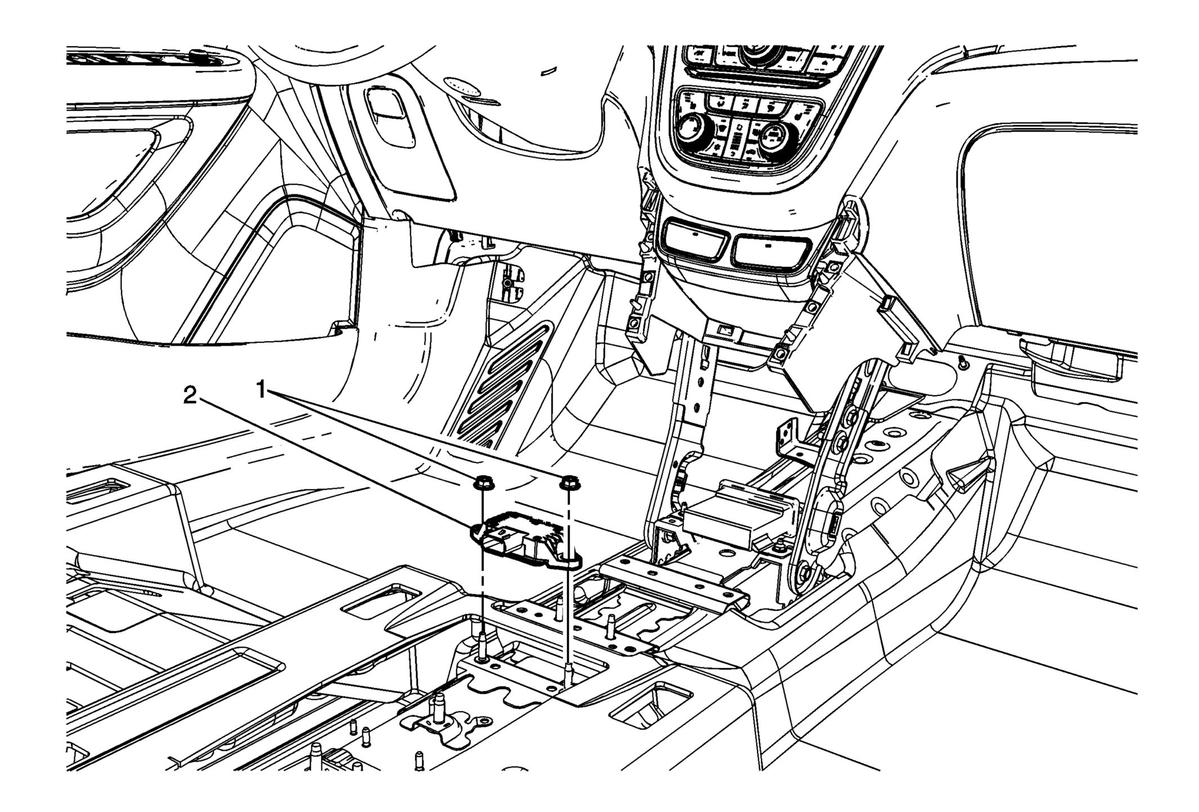

GM2786567Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement (Encore) .
1 Vehicle Yaw Sensor Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Vehicle Yaw Sensor with Vehicle Lateral Accelerometer

Procedure

  1. Disconnect the electrical connector.
  2. After the installation is complete, configure the yaw sensor. Refer to Service Programming System (SPS) .
  3. After the installation is complete, perform the Vehicle Yaw Sensor Learn .
