Installation Procedure

  1. Install the power steering gear to the vehicle.
  2. Raise the rear portion of the engine frame.
    CAUTION: Refer to FASTENER NOTICE
  3. Install the rear engine frame mounting bolts (6).

    Tighten

    Tighten the rear engine frame mounting bolts to 192 N.m (142 lb ft).

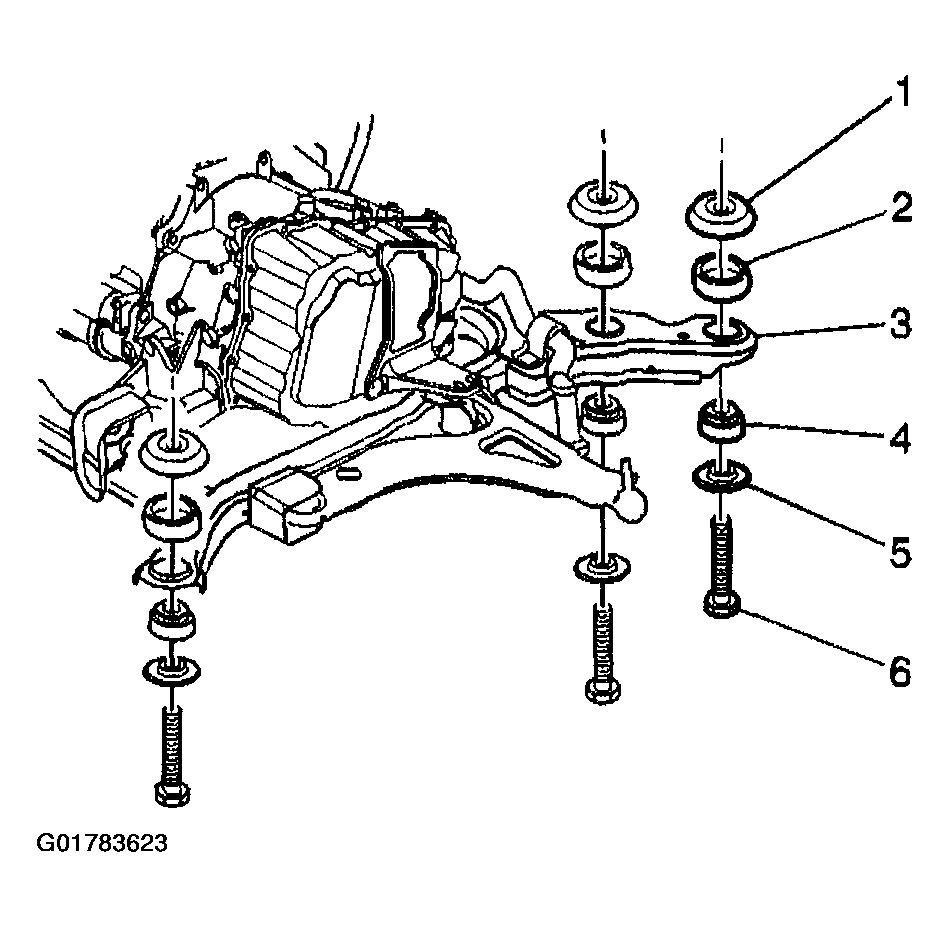

    Fig 1: Installing Rear Engine Frame Mounting Bolts
    G01783623Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission mount upper mounting nuts (1).

    Tighten

    Tighten the transmission mount upper mounting nuts to 40 N.m (30 lb ft).

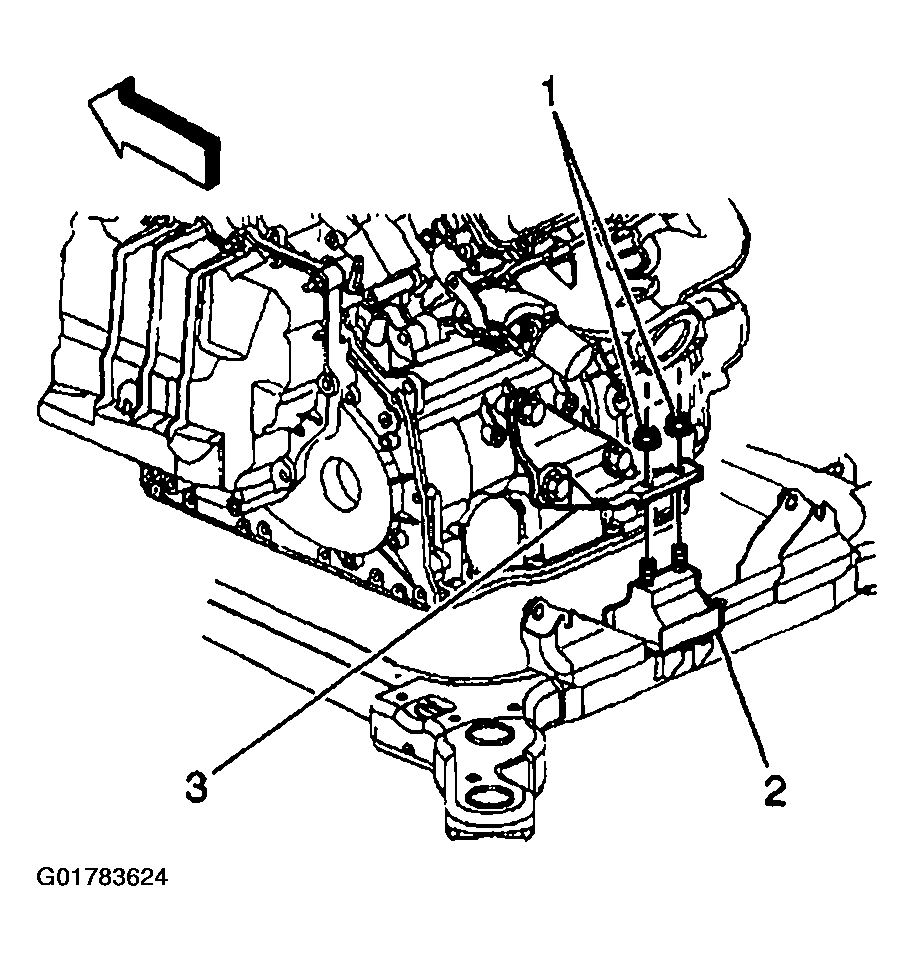

    Fig 2: Installing Transmission Mount Upper Mounting Nuts
    G01783624Courtesy of GENERAL MOTORS CORP.
  5. Install power steering gear mounting bolts.

    Tighten

    Tighten the power steering mounting bolts to 120 N.m (89 lb ft).

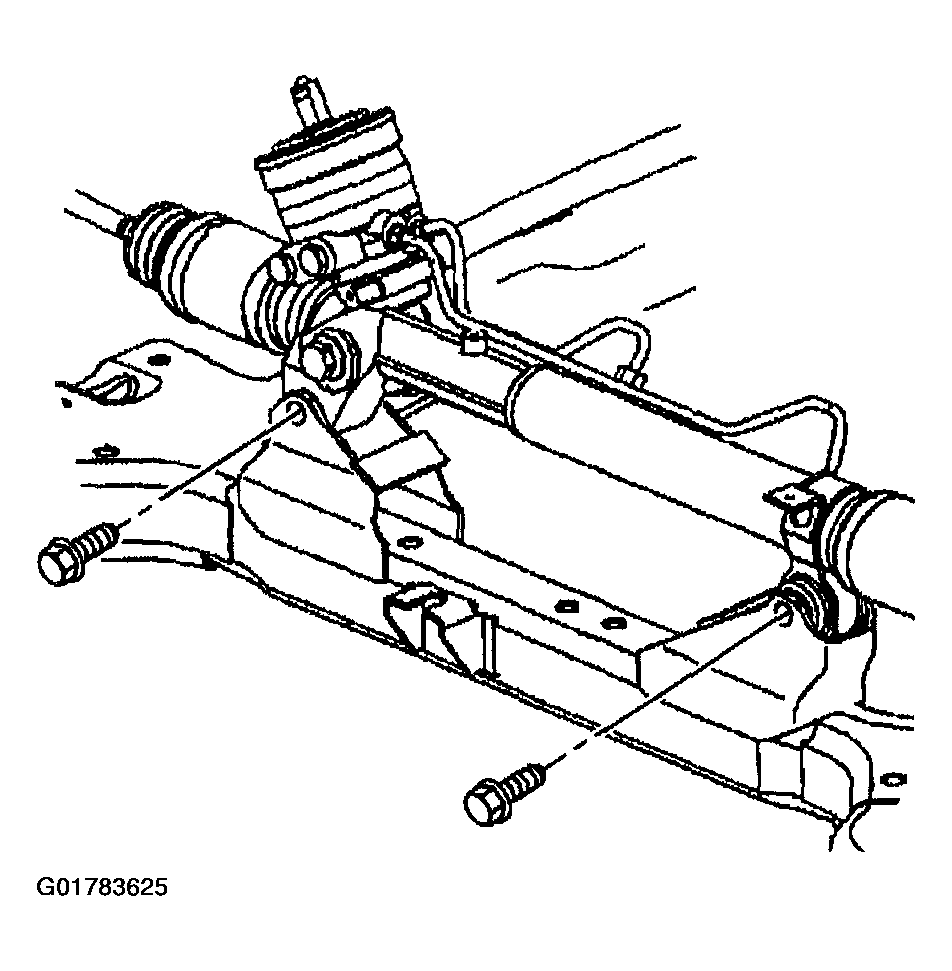

    Fig 3: Installing Power Steering Mounting Bolts
    G01783625Courtesy of GENERAL MOTORS CORP.
  6. Connect the power steering pressure and return lines (1&2) to the power steering gear.

    Tighten

    Tighten the pressure and return lines to 30 N.m (22 lb ft).

  7. Remove the drain pan from under the vehicle.
  8. Connect the variable effort steering electrical connector.
  9. Install the power steering gear heat shield. Refer to Power Steering Gear Heat Shield Replacement .

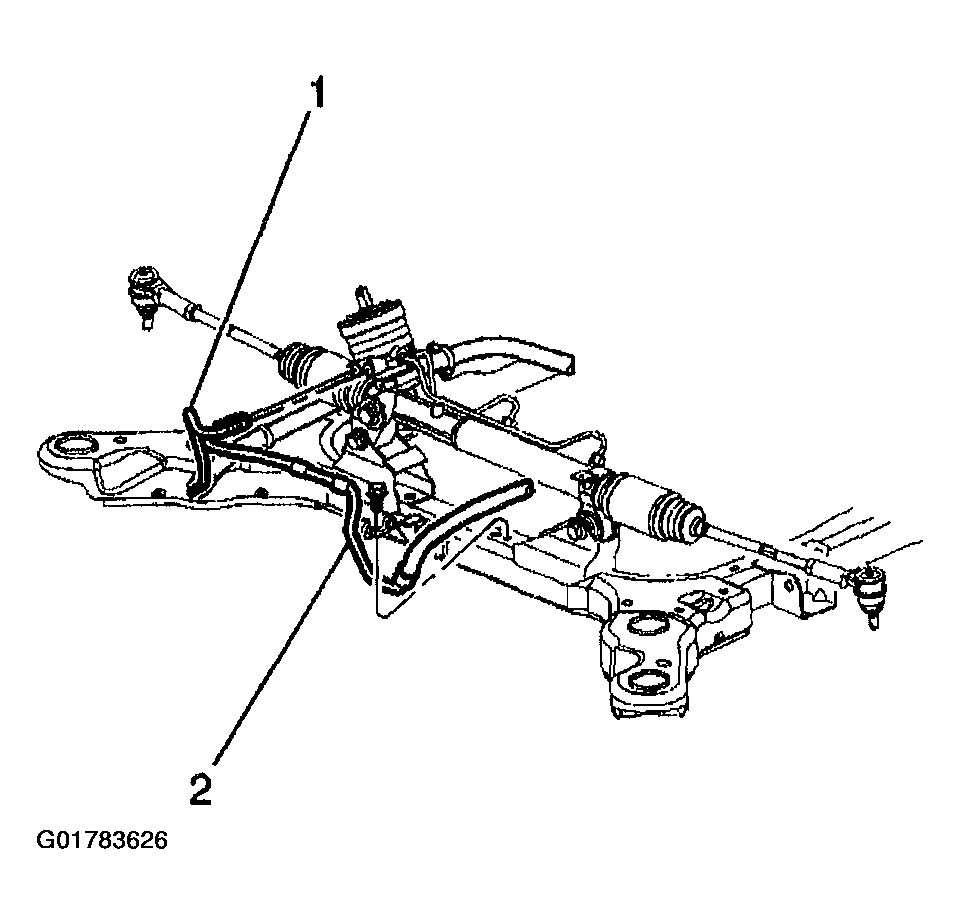

    Fig 4: Connecting Power Steering Pressure & Return Lines
    G01783626Courtesy of GENERAL MOTORS CORP.
  10. Install the outer tie rod ends to the steering knuckles.
  11. Install the outer tie rod ends retaining nuts (2).

    Tighten

    Tighten the outer tie rod ends retaining nuts to 47 N.m (35 lb ft).

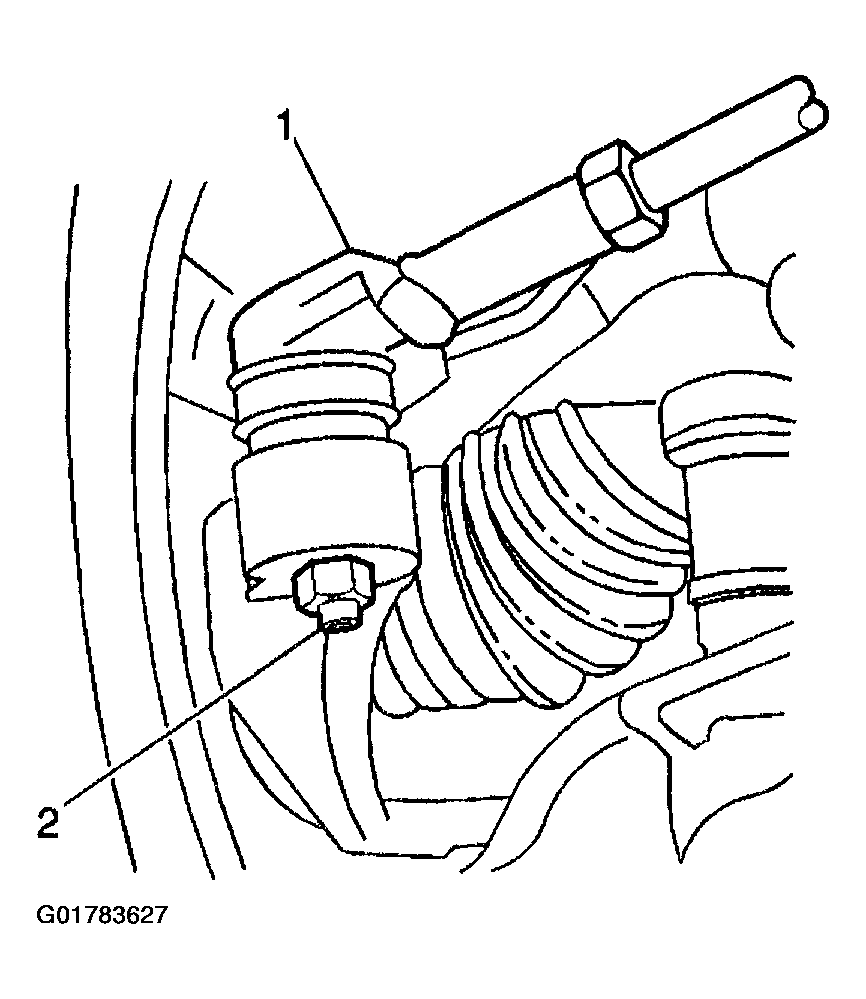

    Fig 5: Installing Outer Tie Rod Ends
    G01783627Courtesy of GENERAL MOTORS CORP.
  12. Install the intermediate shaft to the power steering gear.
  13. Install the intermediate shaft pinch bolt.

    Tighten

    Tighten the intermediate shaft pinch bolt to 45 N.m (33 lb ft).

  14. Install the tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  15. Lower the vehicle.

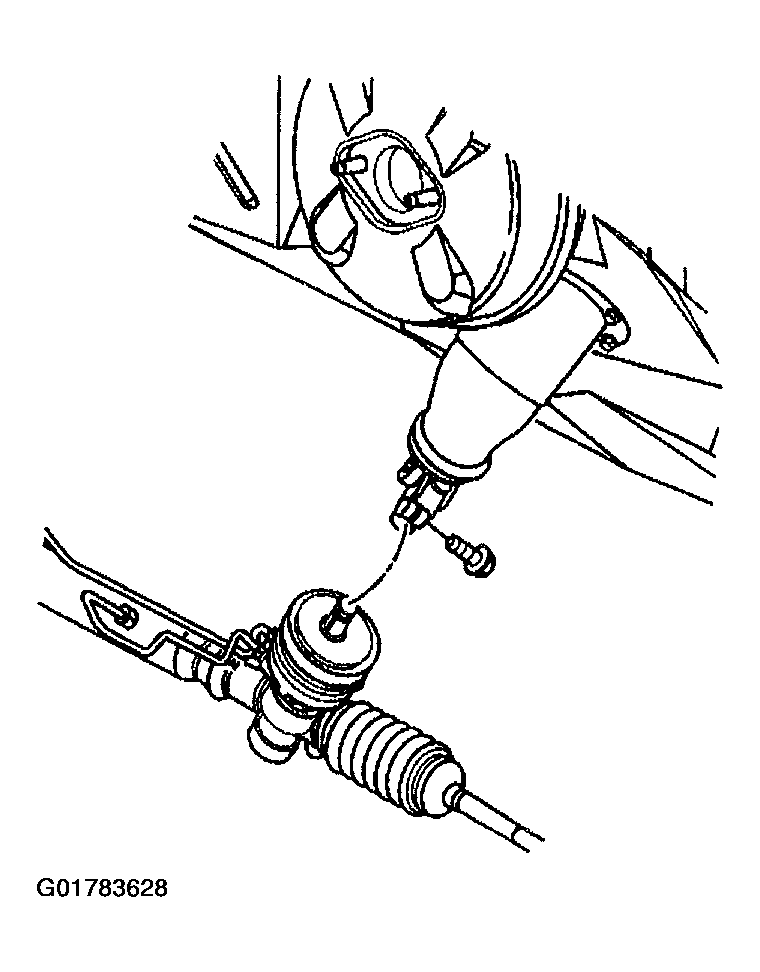

    Fig 6: Installing Intermediate Shaft To Power Steering Gear
    G01783628Courtesy of GENERAL MOTORS CORP.
  16. Remove the J 42640  from the steering column.
  17. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  18. Adjust front toe. Refer to FRONT TOE ADJUSTMENT .

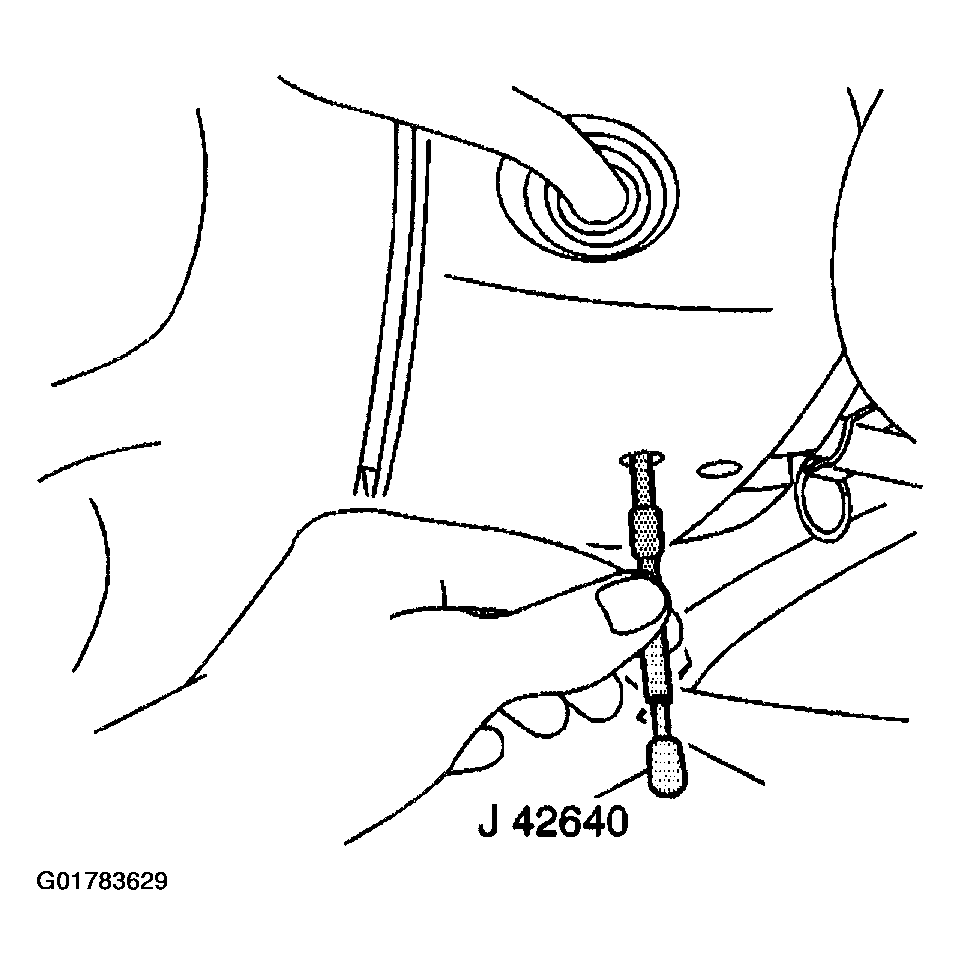

    Fig 7: Removing J 42640 From Steering Column
    G01783629Courtesy of GENERAL MOTORS CORP.
