Installation Procedure

  1. Install the outer tie rod end (3) to the inner tie rod end (1). Do not tighten the jam nut (2).
    Fig 1: Installing Outer Tie Rod End To Inner Tie Rod End
    G01783590Courtesy of GENERAL MOTORS CORP.
  2. Connect the outer tie rod end (2) to the steering knuckle (1).
    Fig 2: Connecting Outer Tie Rod End To Steering Knuckle
    G01783591Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the outer tie rod end retaining nut (2).

    Tighten

    Tighten the outer tie rod end retaining nut to 47 N.m (35 lb ft).

  4. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  5. Lower the vehicle.

    Important:  Be sure the rack and pinion boot is not twisted or puckered during toe adjustment.

  6. Adjust the toe alignment. Refer to FRONT TOE ADJUSTMENT .

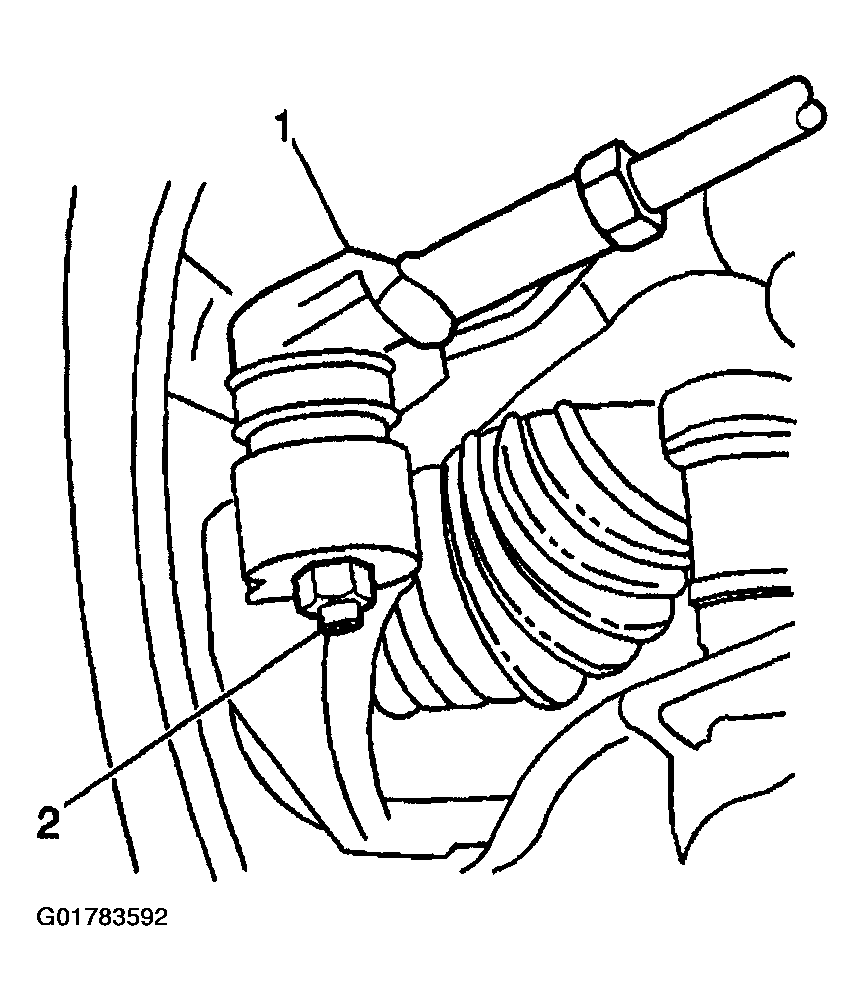

    Fig 3: Installing Outer Tie Rod End Retaining Nut
    G01783592Courtesy of GENERAL MOTORS CORP.
