Rear Toe Adjustment

Important:  Complete the left and right rear toe adjustments separately, per wheel. Use the following procedure.

1. Loosen the cam nut (1) on the adjustment link.
   CAUTION: Refer to FASTENER NOTICE .
2. In order to adjust the toe, rotate the cam bolt using an 18 mm socket. Refer to Wheel Alignment Specifications .

   Tighten

   Tighten the cam nut to 75 N.m (55 lb ft).

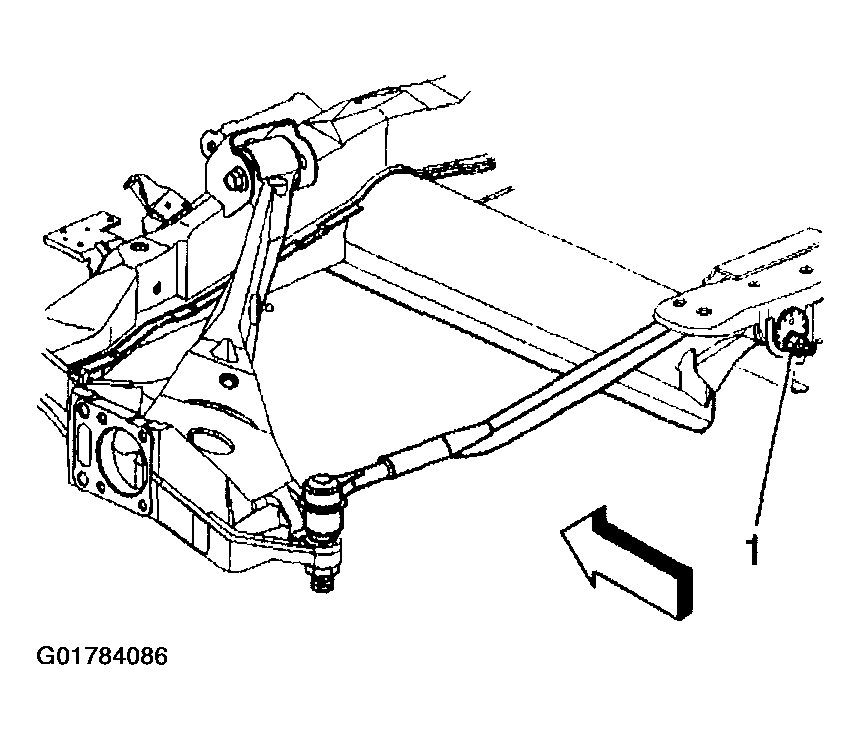

Fig 1: Loosening Cam Nut On Adjustment Link

Courtesy of GENERAL MOTORS CORP.
