Front Side Door Inside Handle Replacement

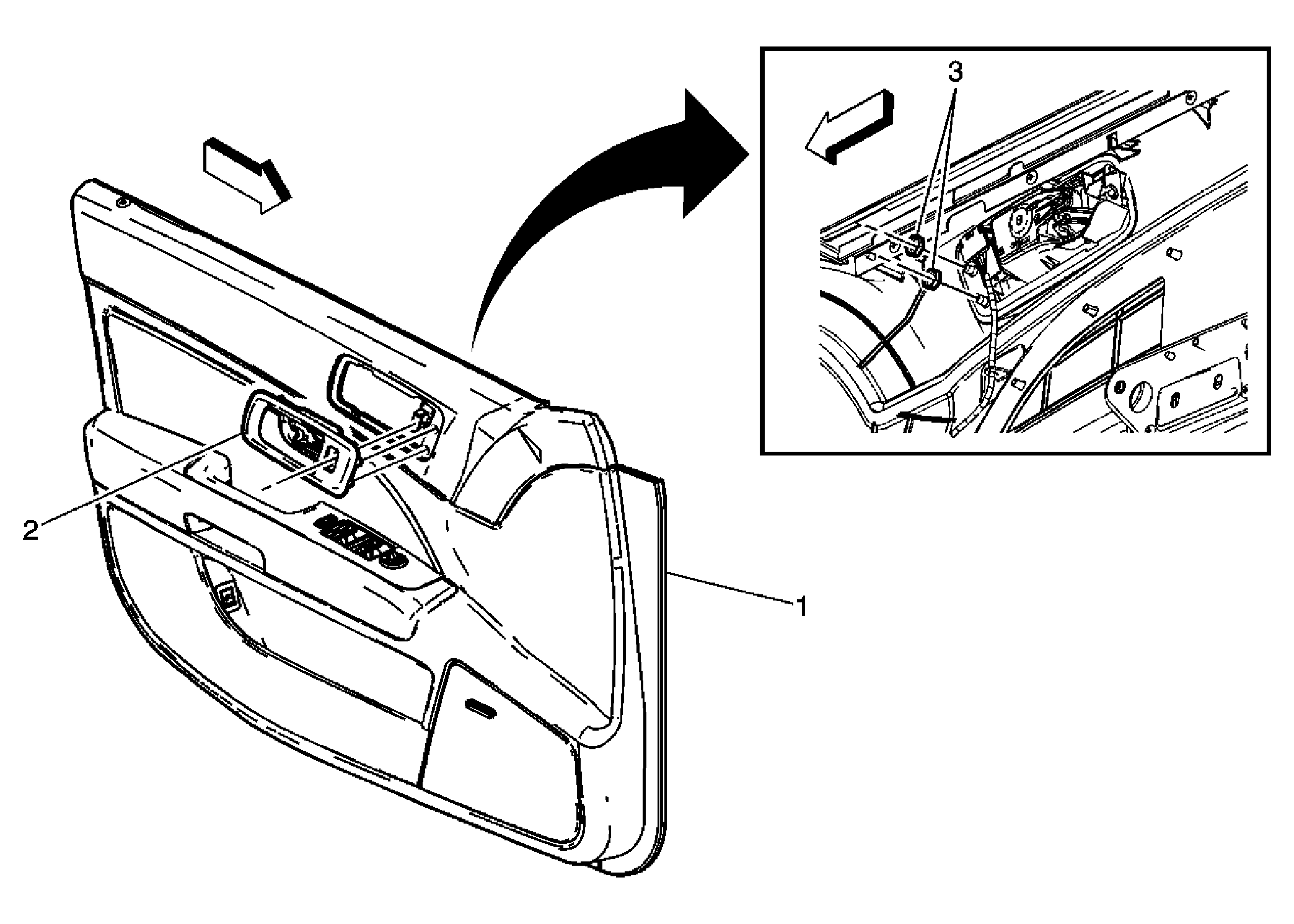

Fig 1: Front Side Door Inside Handle Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Trim Panel Assembly Refer to Front Side Door Trim Panel Replacement
2	Front Inside Door Handle Assembly Tip: Disconnect electrical connector. Locate the two heat stake locations. Using a Dremel tool or equivalent, remove any heat stake material. If replacing door handle, transfer door lock switch to new handle. Refer to Door Lock Switch Replacement .
3	Front Inside Door Handle Nut (Qty: 2) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice in Cautions and Notices.
