Theft Deterrent Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

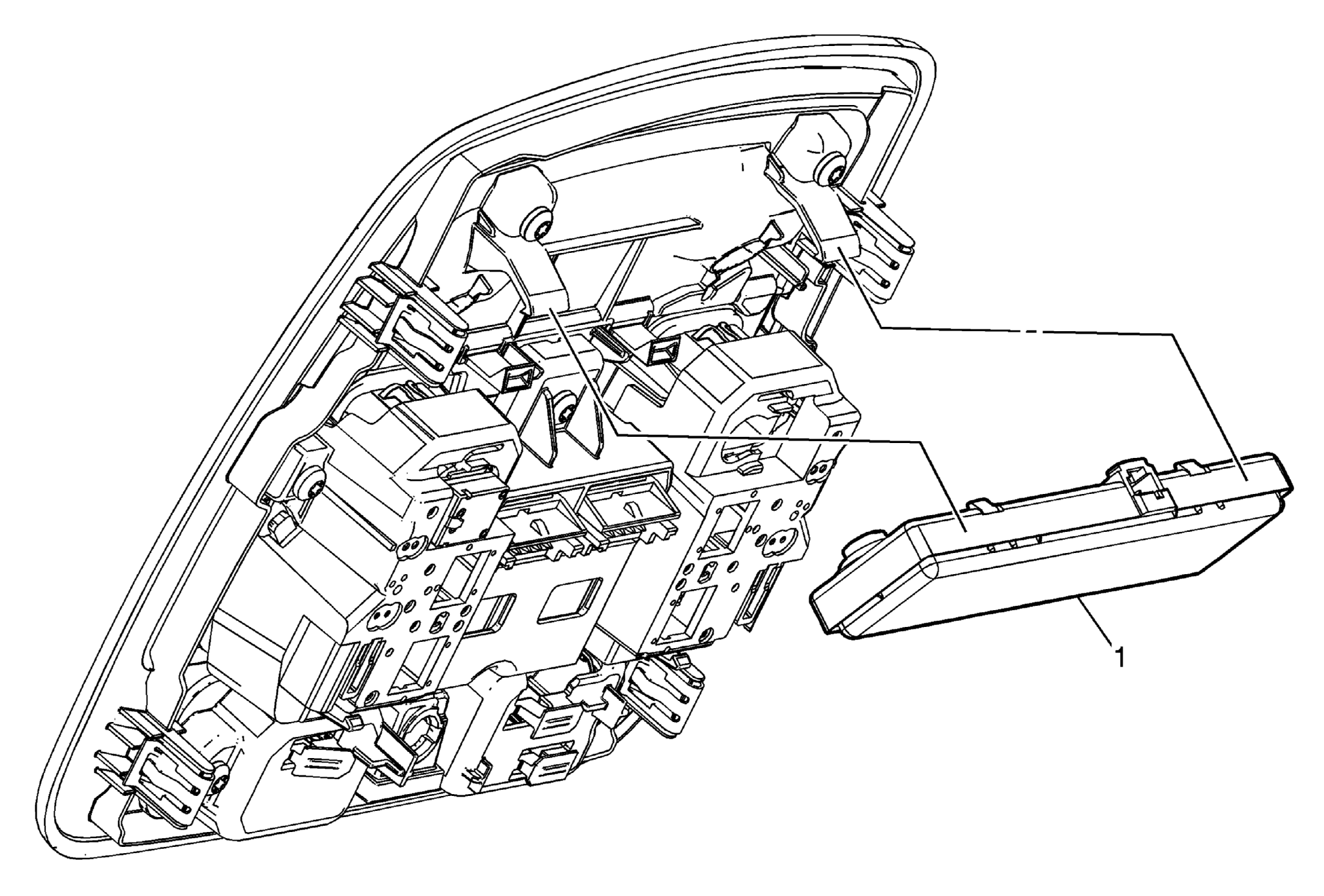

Fig 1: View of Theft Deterrent Sensor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the roof console. Refer to Roof Console Replacement .
1	Theft Deterrent Sensor Procedure Disconnect the electrical connector. Unsnap the sensor from the roof console. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure:
Remove the roof console. Refer to Roof Console Replacement .

Theft Deterrent Sensor

Procedure

Disconnect the electrical connector.
Unsnap the sensor from the roof console.
Refer to Control Module References for programming and set up procedures.
