Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

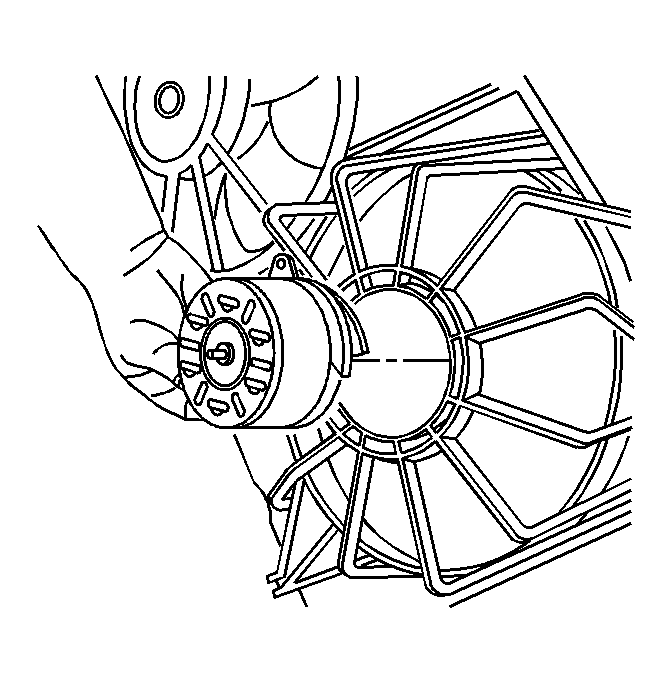

    Fig 1: View Of Cooling Fan Motor
    GM840246Courtesy of GENERAL MOTORS CORP.
  1. Install the motor to the shroud.
    2. Fig 2: Locating Motor Retaining Screws
    GM840251Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the cooling fan motor retaining screws (1).

    Tighten:  Tighten the screws to 5 N.m (44 lb in).

    3. Fig 3: View Of Motor Shaft Fan Blade
    GM840254Courtesy of GENERAL MOTORS CORP.
  3. Install the fan blade to the motor shaft.
  4. Rotate the fan until the fan drops onto the shaft.
    5. Fig 4: Locating Fan Blade Retaining Nuts
    GM840257Courtesy of GENERAL MOTORS CORP.
  5. Install the fan blade retaining nut (1) to the motor.

    Tighten:  Tighten the nut to 7 N.m (62 lb in).

  6. Install the cooling fan assembly. Refer to Engine Cooling Fan Replacement .
