Steering Linkage Outer Tie Rod Replacement

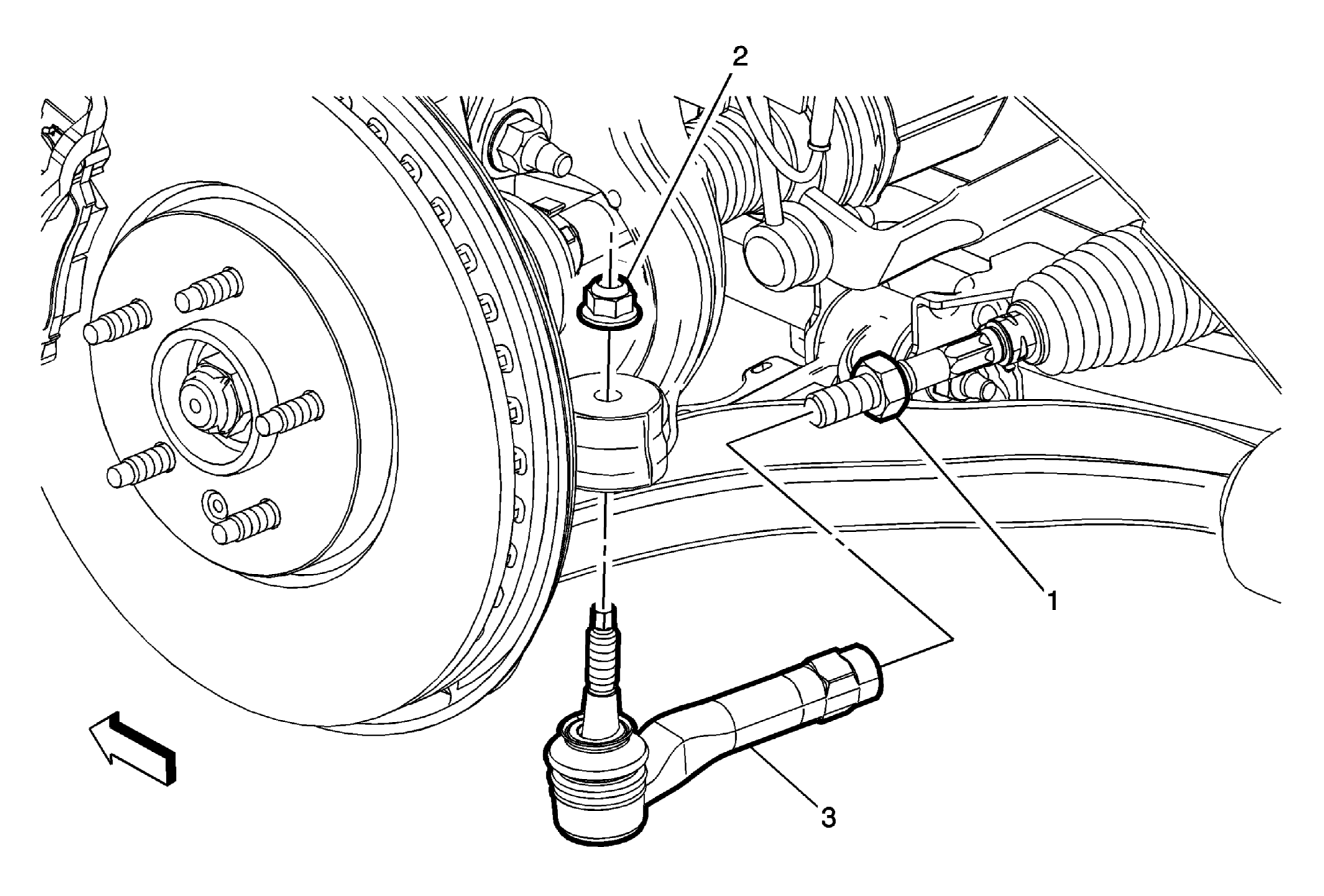

Fig 1: Steering Linkage Outer Tie Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Steering Linkage Inner Tie Rod Nut Procedure Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. During installation, align the match marks. NOTE: Do not tighten the steering linkage inner tie rod nut during installation. Tighten the nut after adjusting the front toe. Tighten 60 N.m (44 lb ft)
2	Steering Linkage Outer Tie Rod Nut CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft) + 30-45 degrees
3	Steering Linkage Outer Tie Rod CAUTION: Do not free the ball stud by using a pickle fork or a wedge-type tool. Damage to the seal or bushing may result. Procedure Use the CH-161-B puller to disconnect the steering linkage outer tie rod from the steering knuckle. Clean the tapered surface of the steering knuckle. Inspect the steering linkage inner tie rod for bent or damaged threads. Repair or replace the tie rod if needed. Refer to Steering Linkage Inner Tie Rod Replacement . Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment . Special Tools CH-161-B Bearing Puller For equivalent regional tools, refer to Special Tools .
