Daytime Running Lamp Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

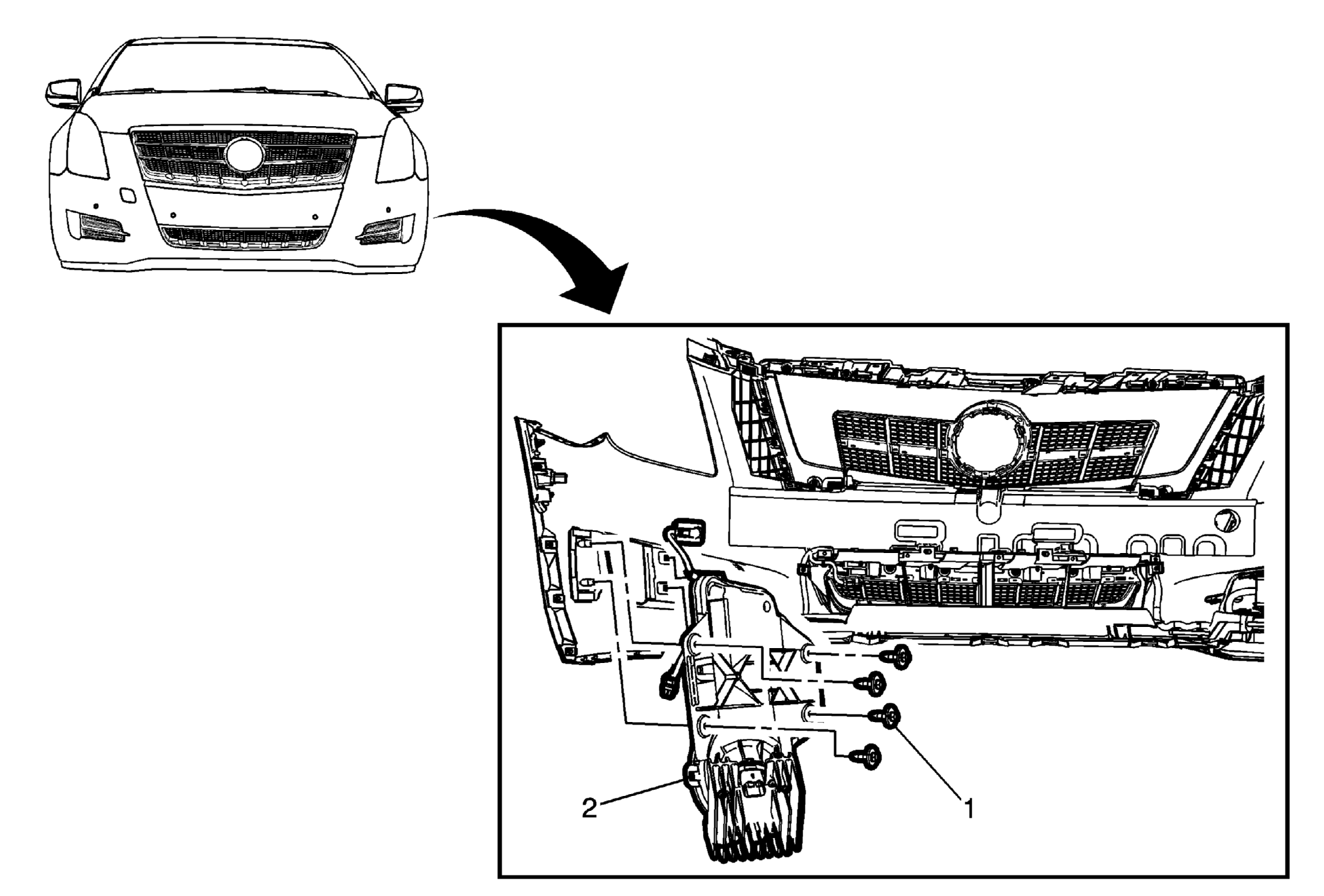

Fig 1: Daytime Running Lamp & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove either the LF or RF wheelhouse extension. Refer to Front Wheelhouse Front Liner Replacement . Remove the windshield washer solvent container, if replacing the drivers side lamp. Refer to Windshield Washer Solvent Container Replacement . Disconnect the electrical connector.
1	Daytime Running Lamp Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 1.5 (1 lb ft)
2	Daytime Running Lamp Procedure Carefully remove the daytime running lamp from the front bumper fascia.

Callout

Component Name

Preliminary Procedures

Remove either the LF or RF wheelhouse extension. Refer to Front Wheelhouse Front Liner Replacement .
Remove the windshield washer solvent container, if replacing the drivers side lamp. Refer to Windshield Washer Solvent Container Replacement .
Disconnect the electrical connector.

Daytime Running Lamp Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 (1 lb ft)

Daytime Running Lamp
Procedure
Carefully remove the daytime running lamp from the front bumper fascia.
