Installation Procedure

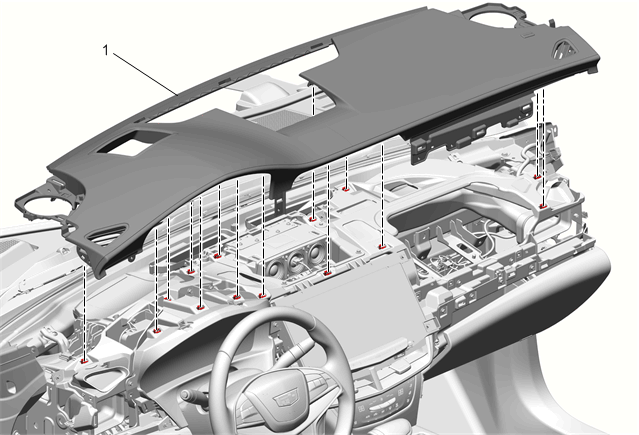

Instrument Panel Upper Trim Panel (1)» Install

Fig 1: Instrument Panel Upper Trim Panel
Courtesy of GENERAL MOTORS COMPANY
Connect electrical connections, if applicable.

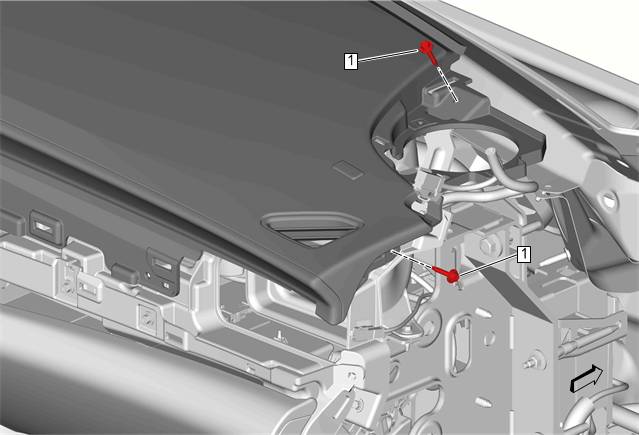

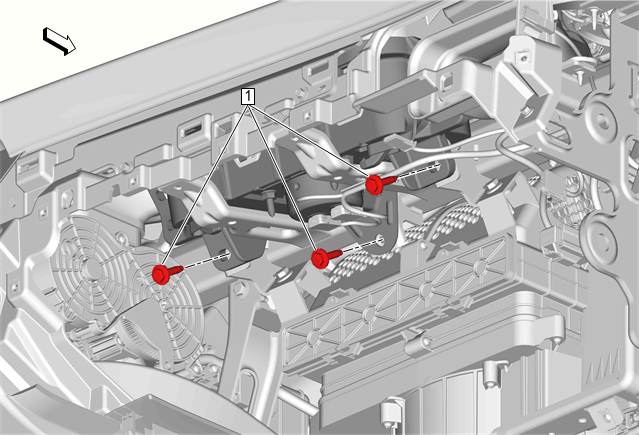

Instrument Panel Airbag Bolt (1)» Install and tighten [3x] 9 N.m (80 lb in)

Fig 2: Instrument Panel Airbag Bolt
Courtesy of GENERAL MOTORS COMPANY

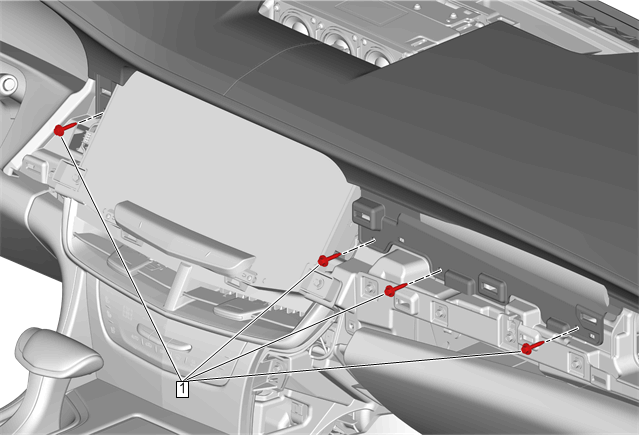

Instrument Panel Accessory Trim Plate Bolt (1)» Install and tighten [2x] 2.5 N.m (22 lb in)

Fig 3: Instrument Panel Accessory Trim Plate Bolt
Courtesy of GENERAL MOTORS COMPANY

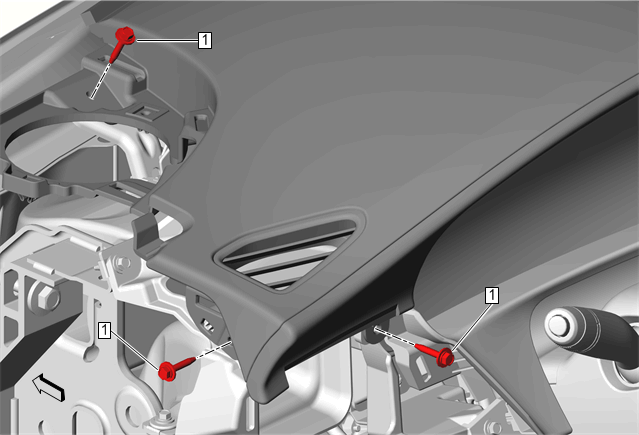

Instrument Panel Accessory Trim Plate Bolt (1)» Install and tighten [4x] 2.5 N.m (22 lb in)

Fig 4: Instrument Panel Accessory Trim Plate Bolt
Courtesy of GENERAL MOTORS COMPANY

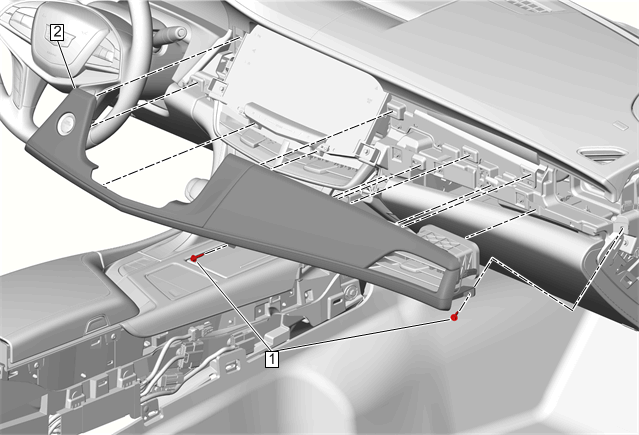

Instrument Panel Accessory Trim Plate Bolt (1)» Install and tighten [3x] 2.5 N.m (22 lb in)

Fig 5: Instrument Panel Accessory Trim Plate Bolt
Courtesy of GENERAL MOTORS COMPANY
Radio Front Speaker Replacement (2)» Install

Fig 6: Radio Front Speaker
Courtesy of GENERAL MOTORS COMPANY

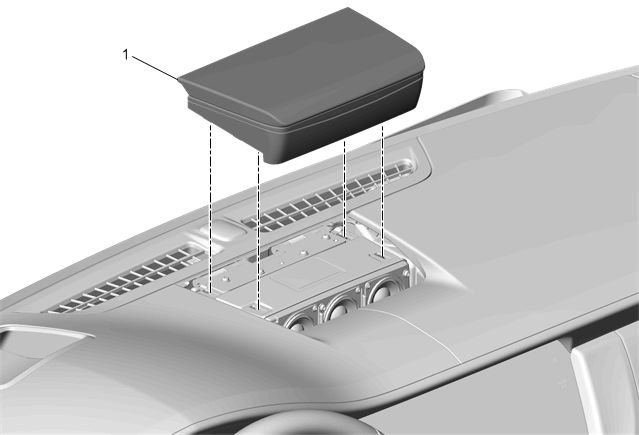

Instrument Panel Trim Pad Radio Center Speaker Opening Cover Replacement (1)» Install

Fig 7: Instrument Panel Trim Pad Radio Center Speaker Opening Cover
Courtesy of GENERAL MOTORS COMPANY

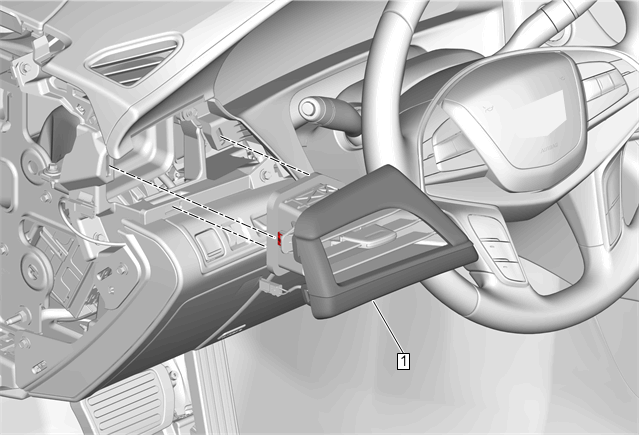

Instrument Panel Extension Replacement (1)» Install

Fig 8: Instrument Panel Extension
Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Replacement (2)» Install

Fig 9: Instrument Panel Compartment
Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Lower Trim Plate Applique Replacement - Left Side (1)» Install

Fig 10: Instrument Panel Lower Trim Plate Applique - Left Side
Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Lower Trim Plate Applique Replacement - Right Side (2)» Install

Fig 11: Instrument Panel Lower Trim Plate Applique
Courtesy of GENERAL MOTORS COMPANY
