Installation Procedure

  1. Align the mode control cams as necessary. Refer to Mode Control Cam Alignment
  2. Connect the electrical connector.
  3. Heater and Air Conditioning Mode Control Cam Cover (1)» Install

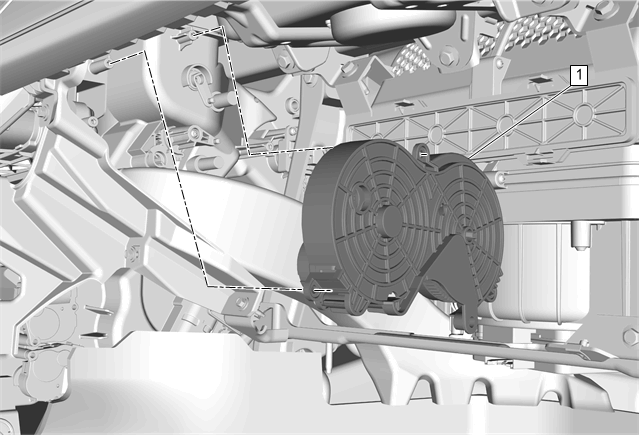

    Fig 1: Heater and Air Conditioning Mode Control Cam Cover
    GM4257774Courtesy of GENERAL MOTORS COMPANY
  4. Heater and Air Conditioning Mode Control Cam Cover Bolt (1)» Install and tighten 2.0 N.m (18 lb in) [4x]

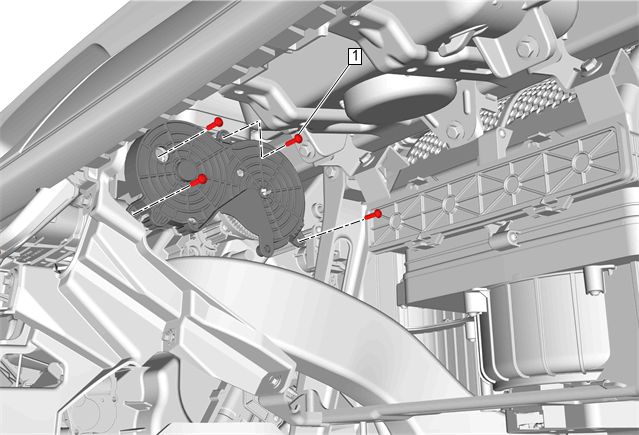

    Fig 2: Heater and Air Conditioning Mode Control Cam Cover And Retaining Bolts
    GM4257773Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  5. Instrument Panel Compartment (2)» Install - Instrument Panel Compartment Replacement

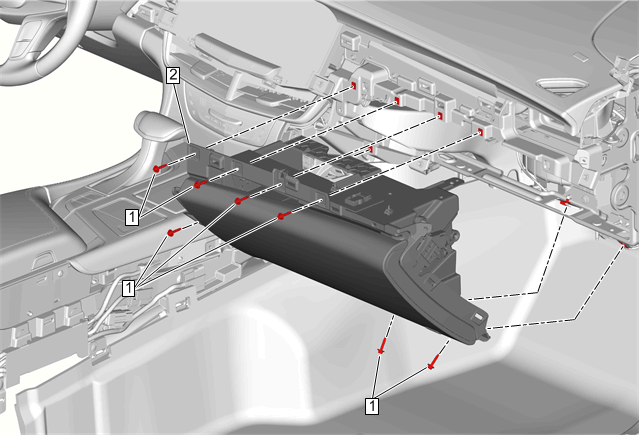

    Fig 3: Instrument Panel Compartment
    GM4248240Courtesy of GENERAL MOTORS COMPANY
  6. Perform the actuator calibration procedure. Refer to Actuator Recalibration
  7. Clear the DTCs from the heater and air conditioning remote control module.
