Front Side Door Window Frame Rear Applique Replacement

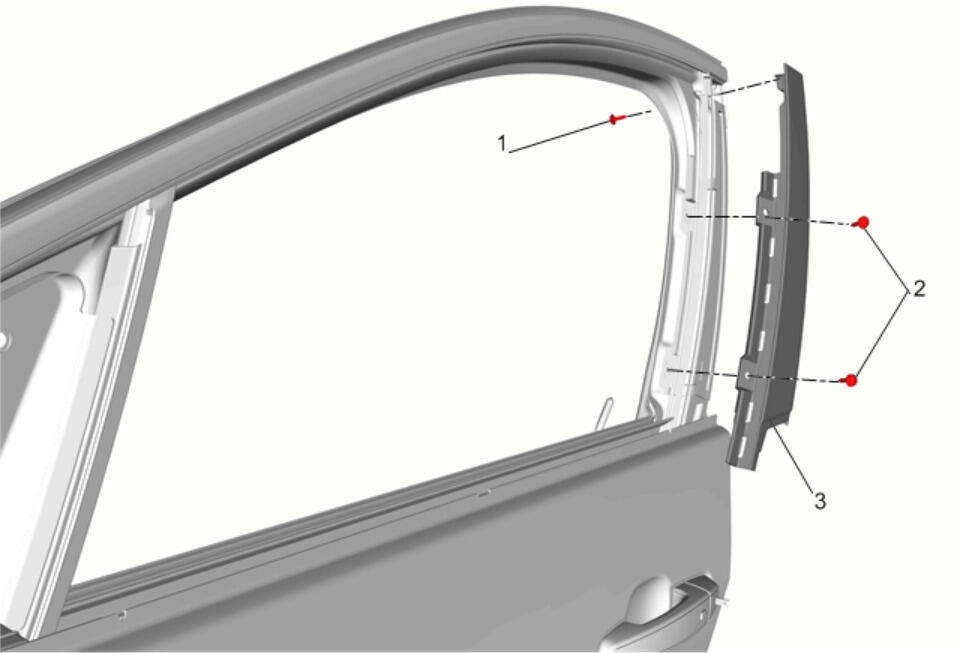

Callout	Component Name
Preliminary Procedures Front Side Door Window Inner Sealing Strip Replacement Front Side Door Window Replacement Front Side Door Window Weatherstrip Replacement NOTE: It is not necessary to completely remove the weatherstrip. Reposition the upper rear edge of the front side door weatherstrip.
1	Front Side Door Window Frame Inner Upper Screw CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Front Side Door Window Frame Rear Applique Outer Screw [2x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
3	Front Side Door Window Frame Rear Applique Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface. Peel the protective film from the foam tape and install the rear applique to the vehicle. Remove wire harness from bottom of front side door window frame applique.
