Rear Side Door Window Frame Front Applique Replacement

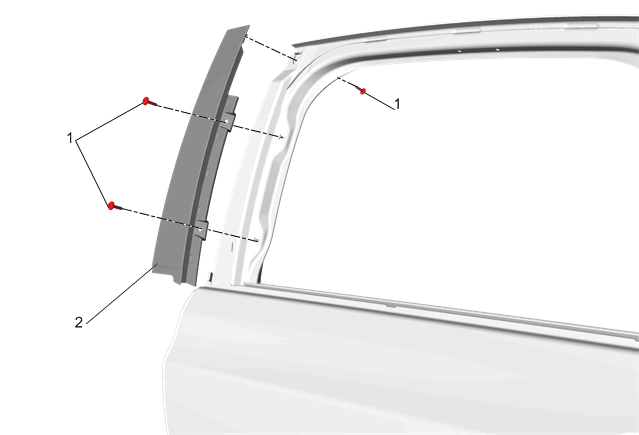

GM4250698
Callout Component Name

Preliminary Procedures

  1. Rear Side Door Window Belt Reveal Molding Replacement
  2. Rear Side Door Window Inner Sealing Strip Replacement
  3. It is not necessary to completely remove the weatherstrip. Reposition the upper front edge of the rear side door weatherstrip. Rear Side Door Window Weatherstrip Replacement
1 Rear Side Door Window Frame Applique Screw [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Rear Side Door Window Frame Front Applique
  1. Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface.
  2. Peel the protective film from the foam tape and install the rear applique to the vehicle.
