Rear Side Door Window Replacement

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement . Remove the rear side door window channel. Refer to Rear Side Door Window Rear Channel Replacement . Remove the rear side door inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement . Remove the rear side door window reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement . Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .

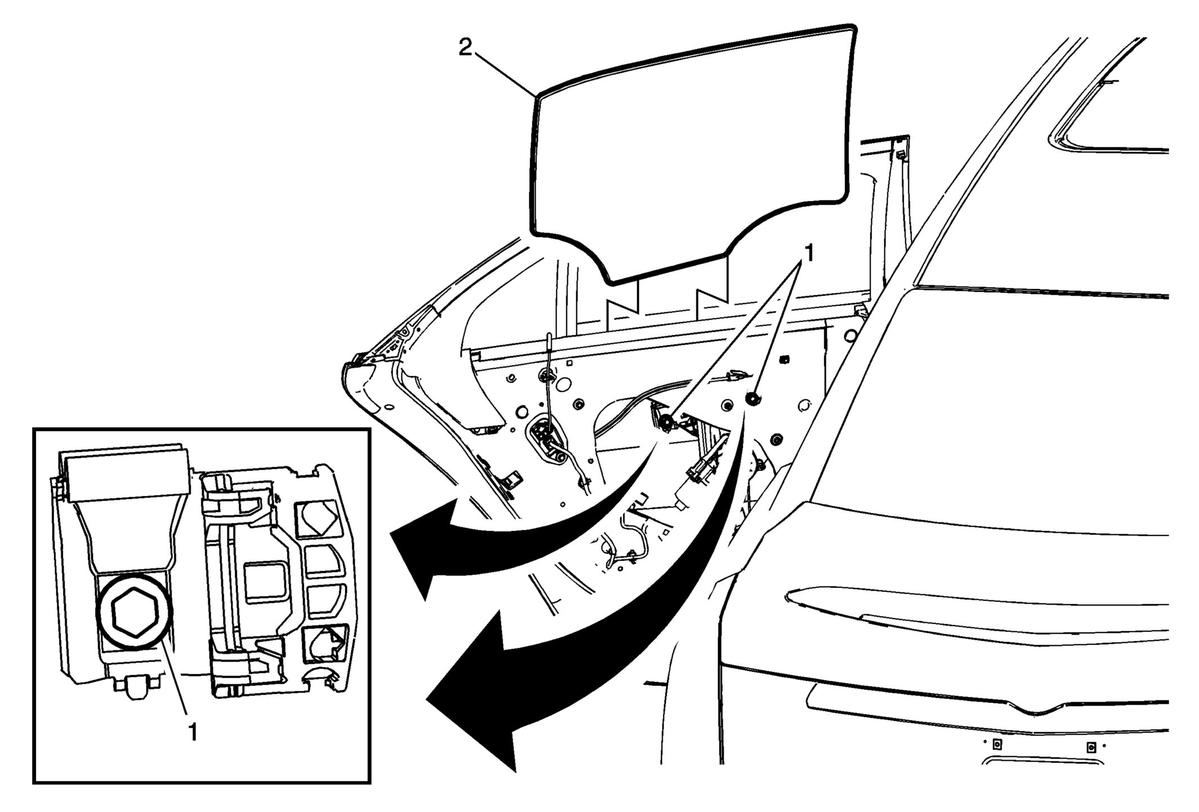

1	Rear Side Door Window Regulator Guide Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Tilt the window downward in the back, pull up on the front of the window and pull it out from the frame. Tighten 10.5 N.m (93 lb in)
2	Rear Side Door Window NOTE: Inspect the window for proper operation before installing the trim.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement .
Remove the rear side door window channel. Refer to Rear Side Door Window Rear Channel Replacement .
Remove the rear side door inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement .
Remove the rear side door window reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .
Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .

Rear Side Door Window Regulator Guide Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure
Tilt the window downward in the back, pull up on the front of the window and pull it out from the frame.
Tighten
10.5 N.m (93 lb in)

Rear Side Door Window

NOTE:

Inspect the window for proper operation before installing the trim.
