Front View Driver Information Camera Bracket Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

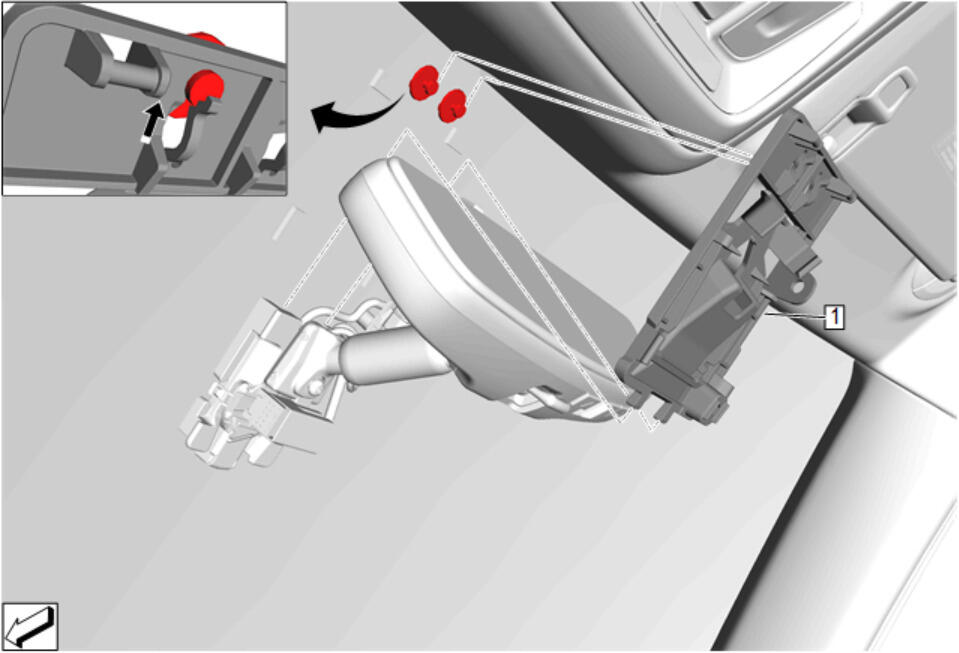

Callout	Component Name
Preliminary Procedure Front View Camera Replacement
1	Front View Driver Information Camera Bracket NOTE: Do Not remove or service the sensor farm pins. Procedure Release the retaining tabs and slide the bracket upward to disengage pins. Gently pull from windshield. Ensure the inside of the windshield is clean before reinstalling the bracket.

Callout

Component Name

Preliminary Procedure
Front View Camera Replacement

Front View Driver Information Camera Bracket

NOTE:

Do Not remove or service the sensor farm pins.

Procedure

Release the retaining tabs and slide the bracket upward to disengage pins. Gently pull from windshield.
Ensure the inside of the windshield is clean before reinstalling the bracket.
