Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

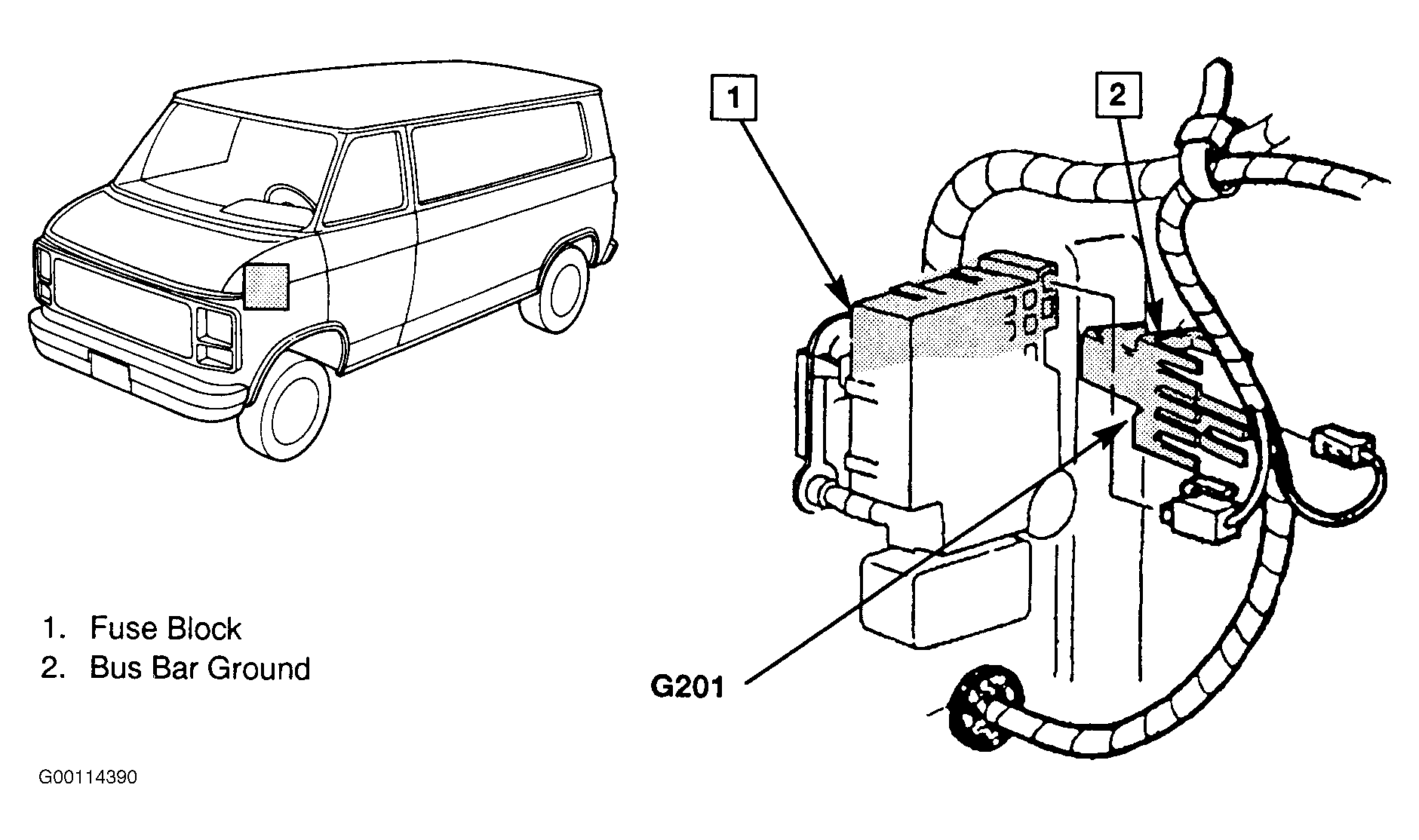

| Busbar Ground | Near Fuse Block. See Fig 1 |
| Fuse Block | Behind Left Side Of Instrument Panel. See Fig 1 |

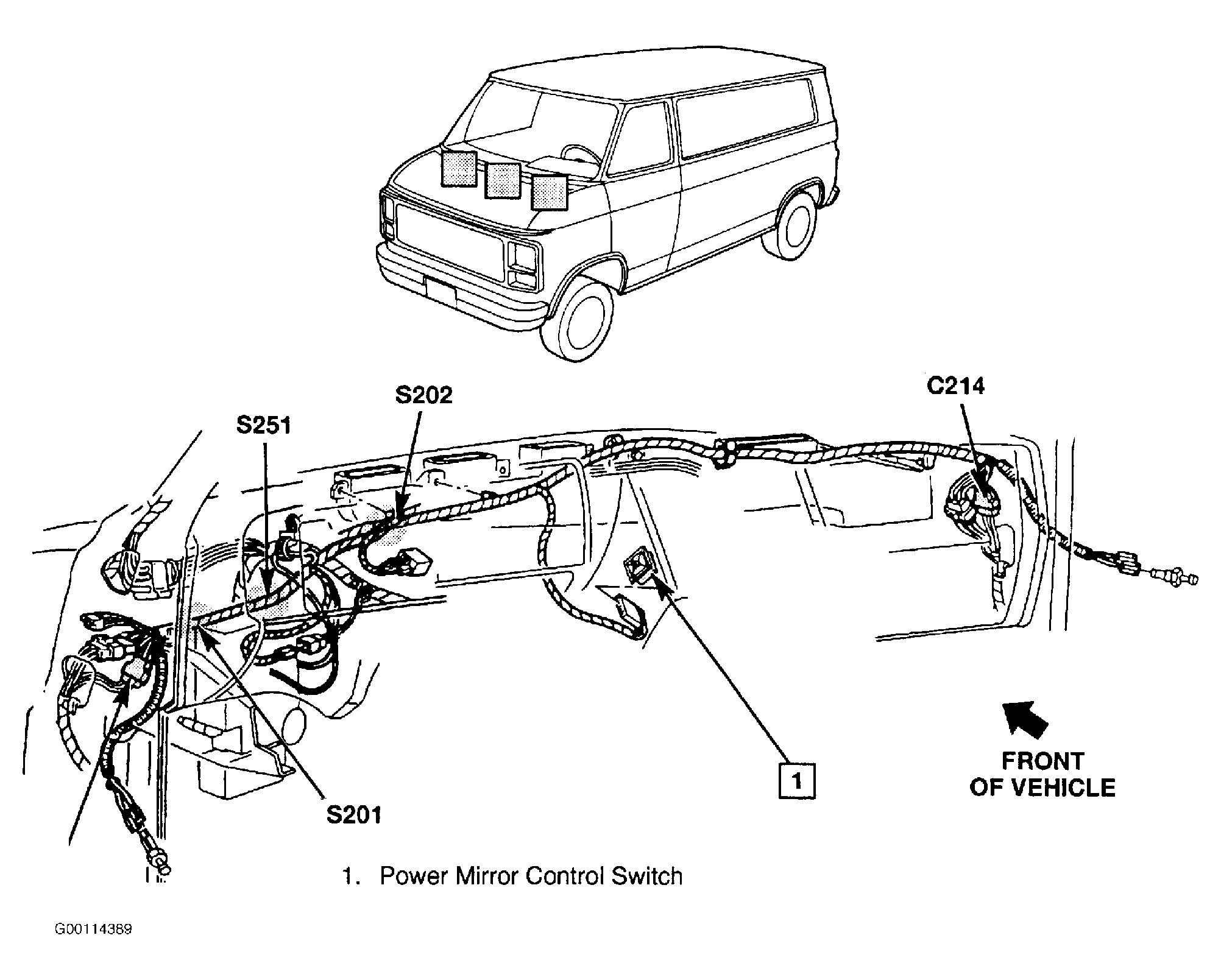

| Outside Power Mirror Control Switch | Center Of Instrument Panel. See Fig 2 |
| Outside Power Mirror Motor (Left) | In Left Door |
| Outside Power Mirror Motor (Right) | In Right Door |

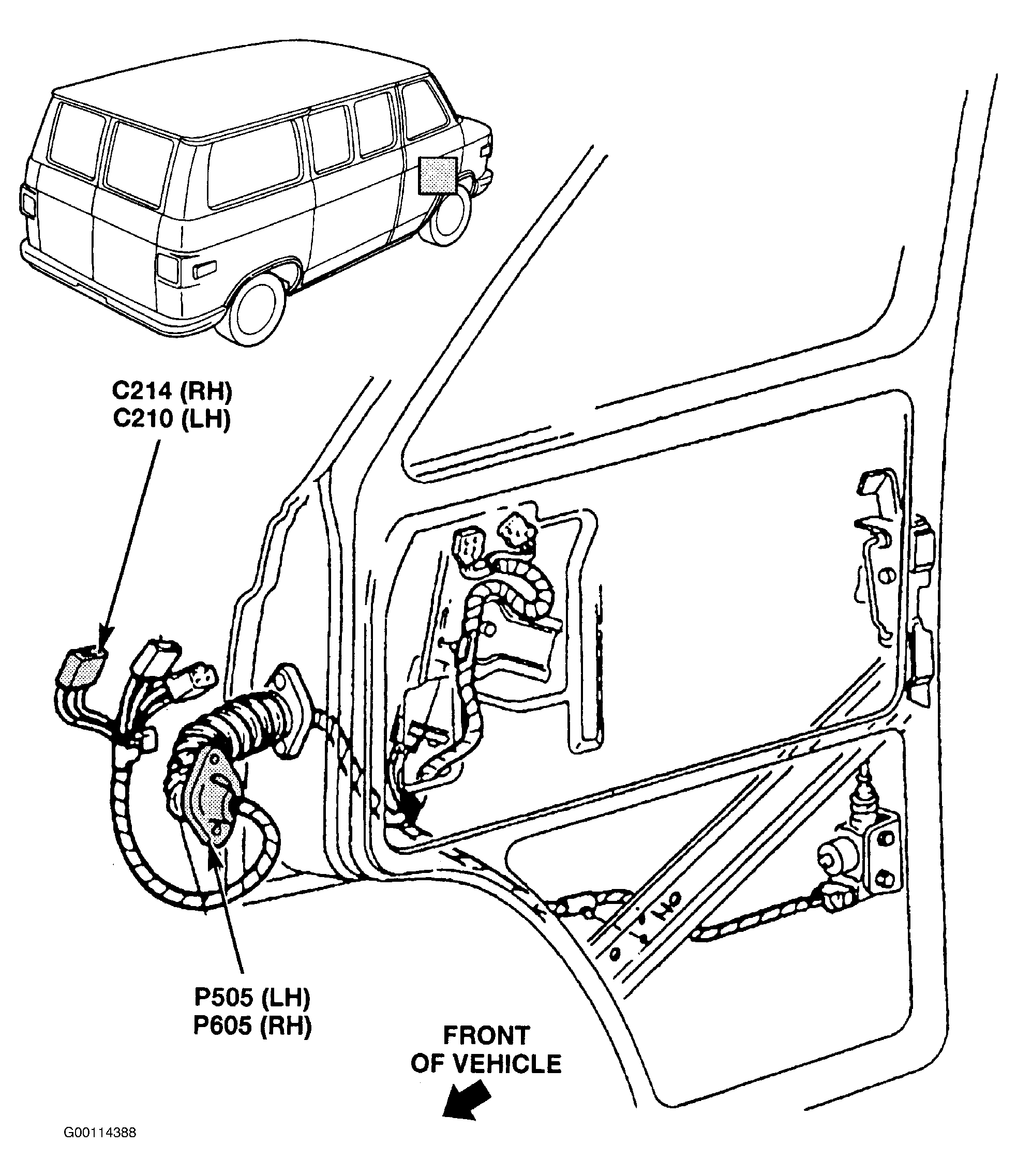

| C210 | Inside Left Side Of Cowl Panel. See Fig 3 |
| C214 | Inside Right Side Of Cowl Panel. See Fig 3 |
| C500 | At Left Power Mirror Motor |
| C600 | At Right Power Mirror Motor |
| P505 | On Left Front Door. See Fig 3 |
| P605 | On Right Front Door. See Fig 3 |
| G201 | At Busbar Ground. See Fig 1 |
| S201 | Left Side Of Instrument Panel. See Fig 2 |
| S202 | Center Of Instrument Panel, In Cross Car Harness. See Fig 2 |
| S251 | Right Side Of Steering Column, Near Power Door Lock Delay Module. See Fig 2 |
