Bottom UNDERHOOD Junction Block

NOTE: Bottom underhood junction box is located on passenger's side of engine compartment. See Figure .

Fig 1: Identifying Bottom Underhood Junction Block Components

Courtesy of GENERAL MOTORS CORP.

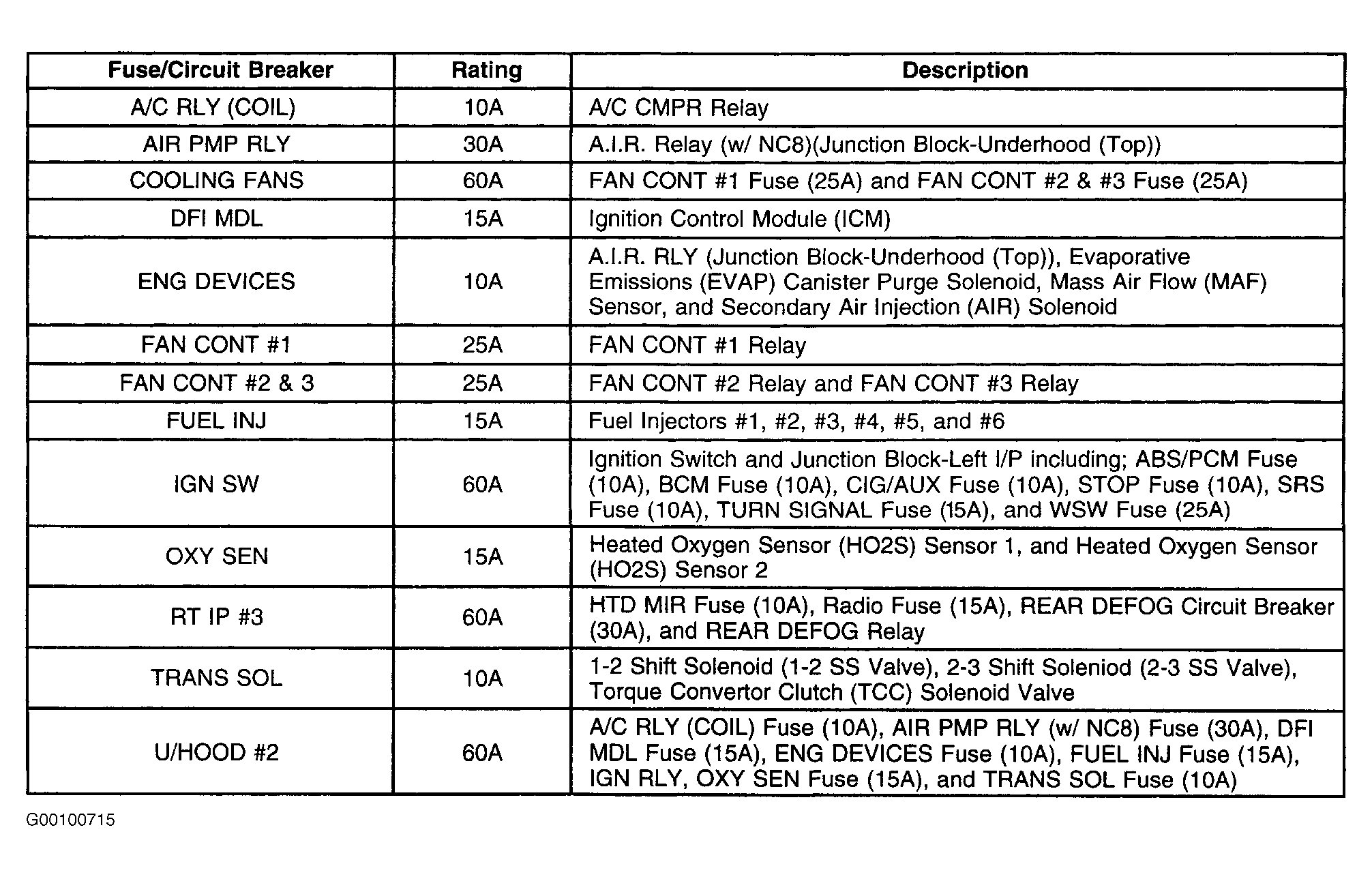

Fig 2: Bottom Underhood Junction Block Legend

Courtesy of GENERAL MOTORS CORP.
