Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module | Behind Right Side Of Instrument Panel, Right Of Glove Box |
| Daytime Running Lights Module | Behind Instrument Panel, Right Of Steering Column |
| Fuse Block | Right Side Of Instrument Panel, In Right Front Door Opening |
| Liftgate Lock Ajar Switch | In Liftgate Door Lock |
| Powertrain Control Module | In Engine Compartment, In Air Cleaner Housing |

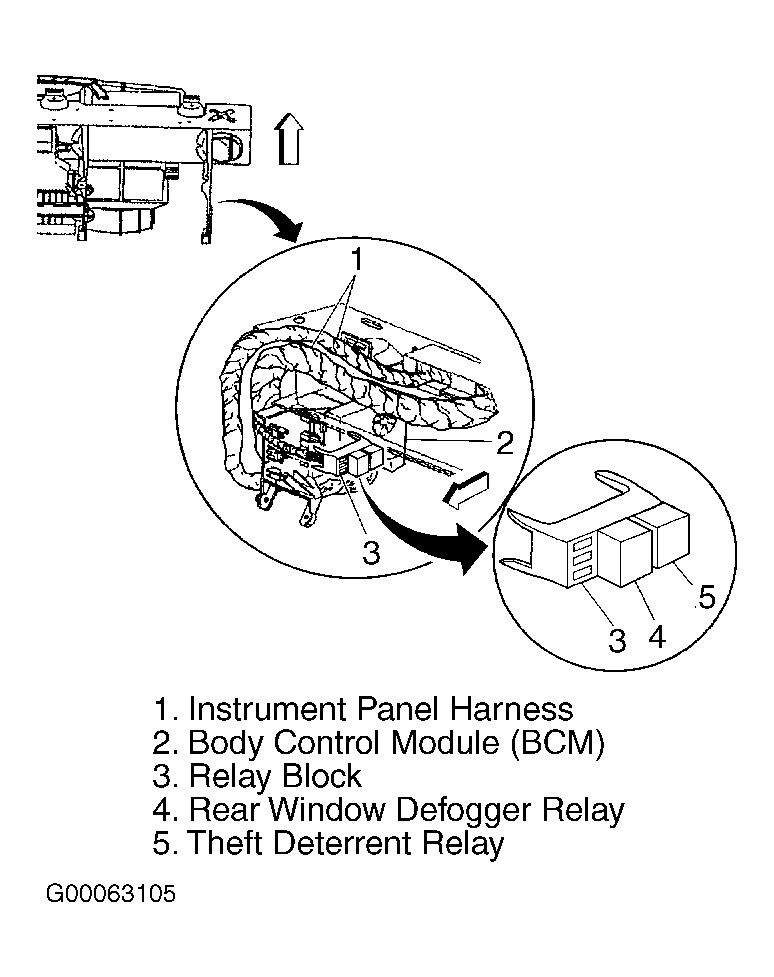

| Relay Block | Right Side Of Instrument Panel, Near Body Control Module |
| Remote Control Door Lock Receiver | Behind Center Of Instrument Panel, Near Defrost Vent |
| Shock Sensor | Below Left Side Of Instrument Panel, Right Of Steering Column |
| Theft Deterrent Control Module | In Steering Column, At Ignition Switch |
| Theft Deterrent Relay | In Relay Block |
| Theft LED | Center Of Instrument Panel, Near Defrost Vent |
| Underhood Junction Block | In Engine Compartment, On Right Front Wheelwell, Above Battery |
