Right Instrument Panel Fuse Block
NOTE:

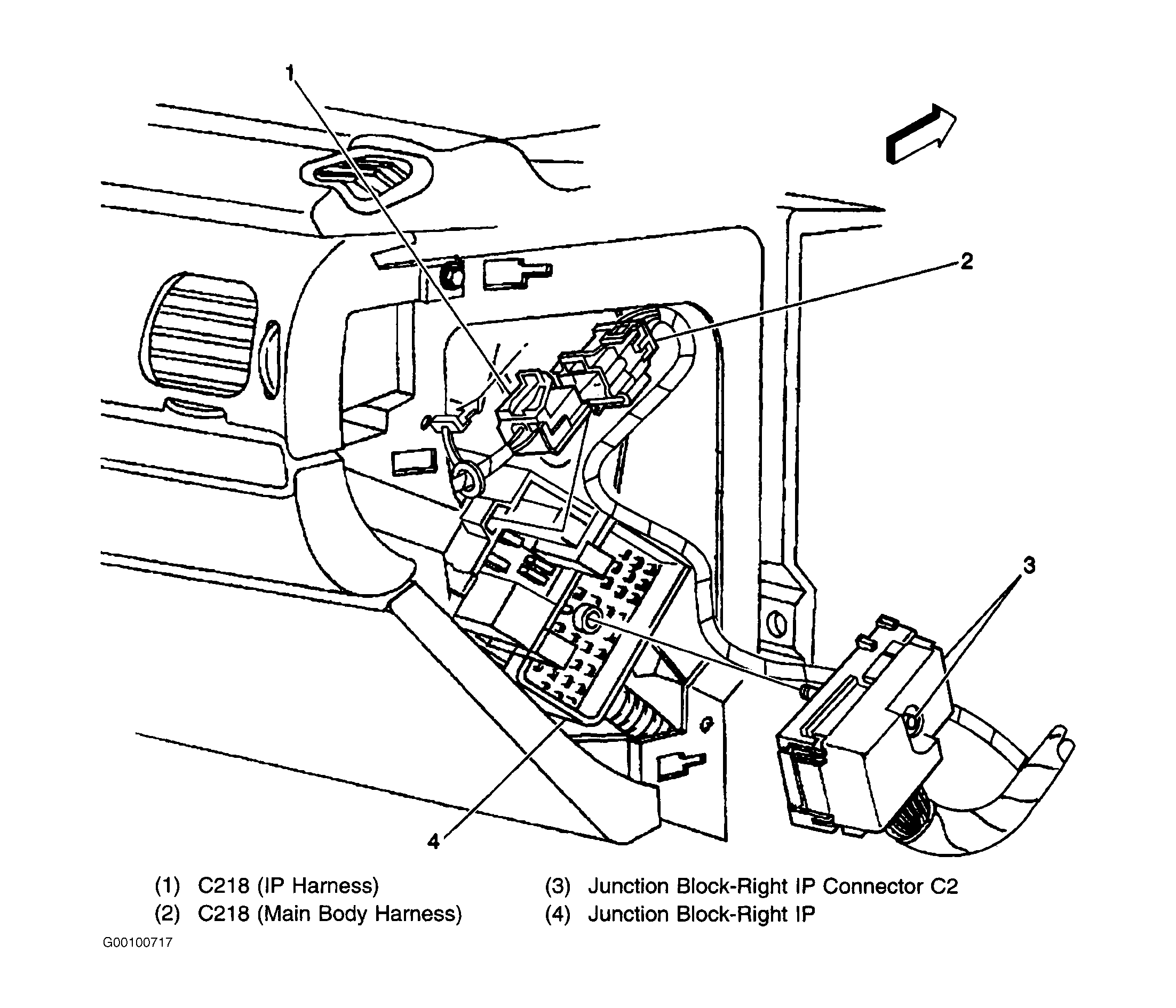

Right instrument panel fuse block is located of passenger's side end of instrument panel. See Fig 1.
RIGHT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (1 OF 3)
| Fuses | Usage |
|---|---|
| RH HTD ST | Passenger Heated Seat |
| PWR DROP | Accommodated Device |
| B/U LP | Back-Up Lamps |
| DIC/RKE | Driver Information Center, Remote Keyless Entry, HVAC |
| TRK/ROOF BRP | Trunk Lamps, Headliner Lamps |
| HVAC BLO | HVAC Blower Relay |
| I/P BRP | Instrument Panel Footwell Lamps |
| HTD MIR | Heated Mirrors |
| BRK SW | Brake Switch |
| HAZ SW | Hazard Switch |
| REAR PRK LP | Rear Parking Lamps |
| AUX PWR | Accessory Power Outlet (Battery) |
| C/LTR | Cigarette Lighter |
| RADIO | Radio, Radio Amplifier, Remote Digital Radio Receiver |
| FRT PARK LP | Front Parking Lamps, Instrumentation Lighting |
RIGHT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2 OF 3)
| Relays | Usage |
|---|---|
| PARK LP RELAY | Parking Lamps Relay |
| BACK UP LP RELAY | Back-up Lamps Relay |
| BATT RUN DOWN PROTECTION RELAY | Battery Run Down Protection Relay |
| REAR DEFOG RELAY | Rear Defogger Relay, Heated Mirror Relay |
RIGHT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (3 OF 3)
| Circuit Breakers | Usage |
|---|---|
| POWER SEATS BRKR | Power Seat Circuit Breaker |
| REAR DEFOG BRKR | Rear Defogger Breaker |
