High Mounted Stop Lamp Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

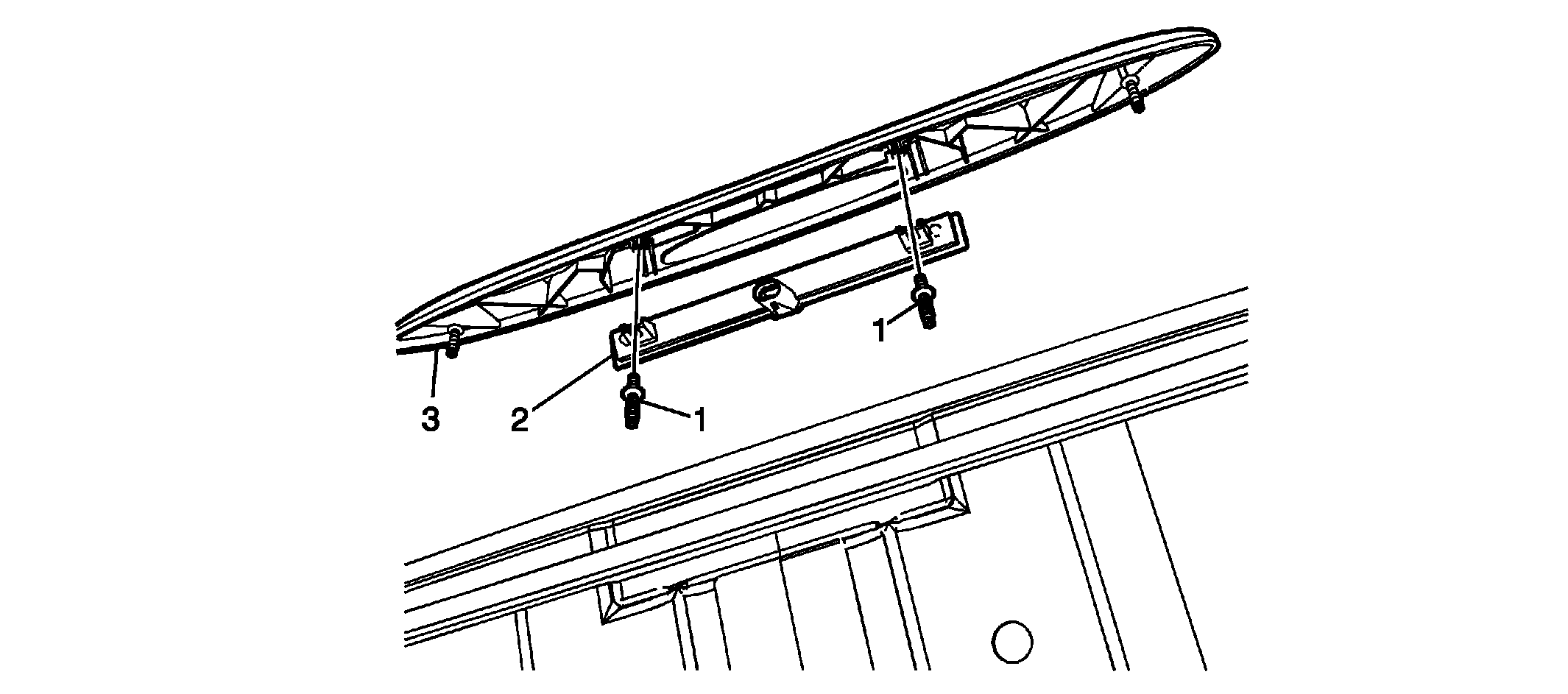

Fig 1: View Of Rear Spoiler & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedure Remove both inner tail lamps. Refer to Tail Lamp Replacement . Reach inside the tail lamp holes and remove the four nuts securing the rear spoiler to the rear bumper fascia. Disconnect the electrical connector.
1	Rear Spoiler Studs (Qty: 4) Tip: Remove the center two studs in order to separate the CHMSL from the rear spoiler.
2	Center High Mounted Stop Lamp (CHMSL) Tip: Remove the two inner studs from the rear spoiler in order to separate the CHMSL from the rear spoiler.
3	Rear Spoiler Tighten: Tighten the spoiler nuts to 10 N.m (89 lb in)
