Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

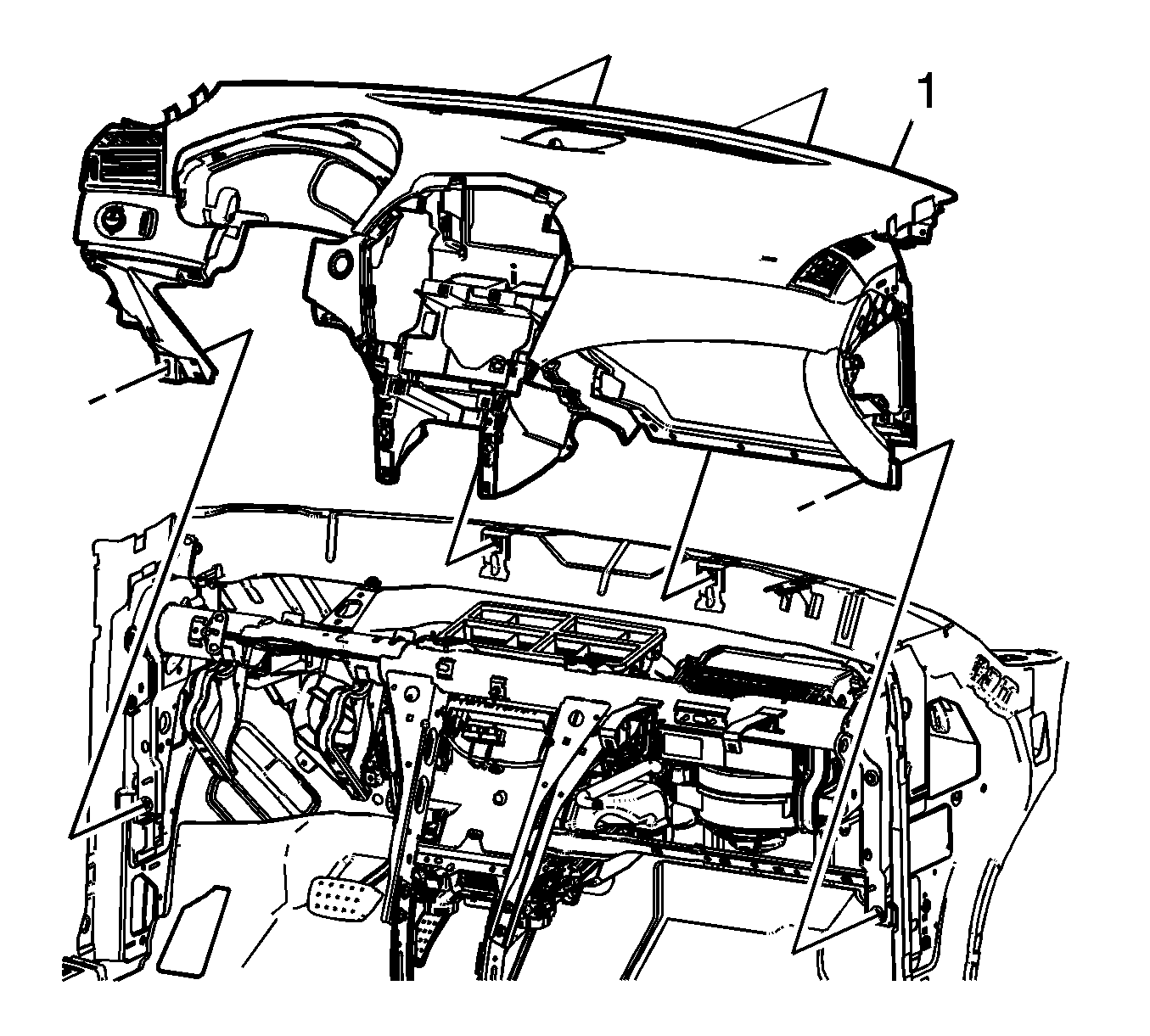

    Fig 1: View Of Instrument Panel Assembly
    GM2220834Courtesy of GENERAL MOTORS CORP.
  1. With the aid of an assistant, align the instrument panel assembly (1) to the vehicle.

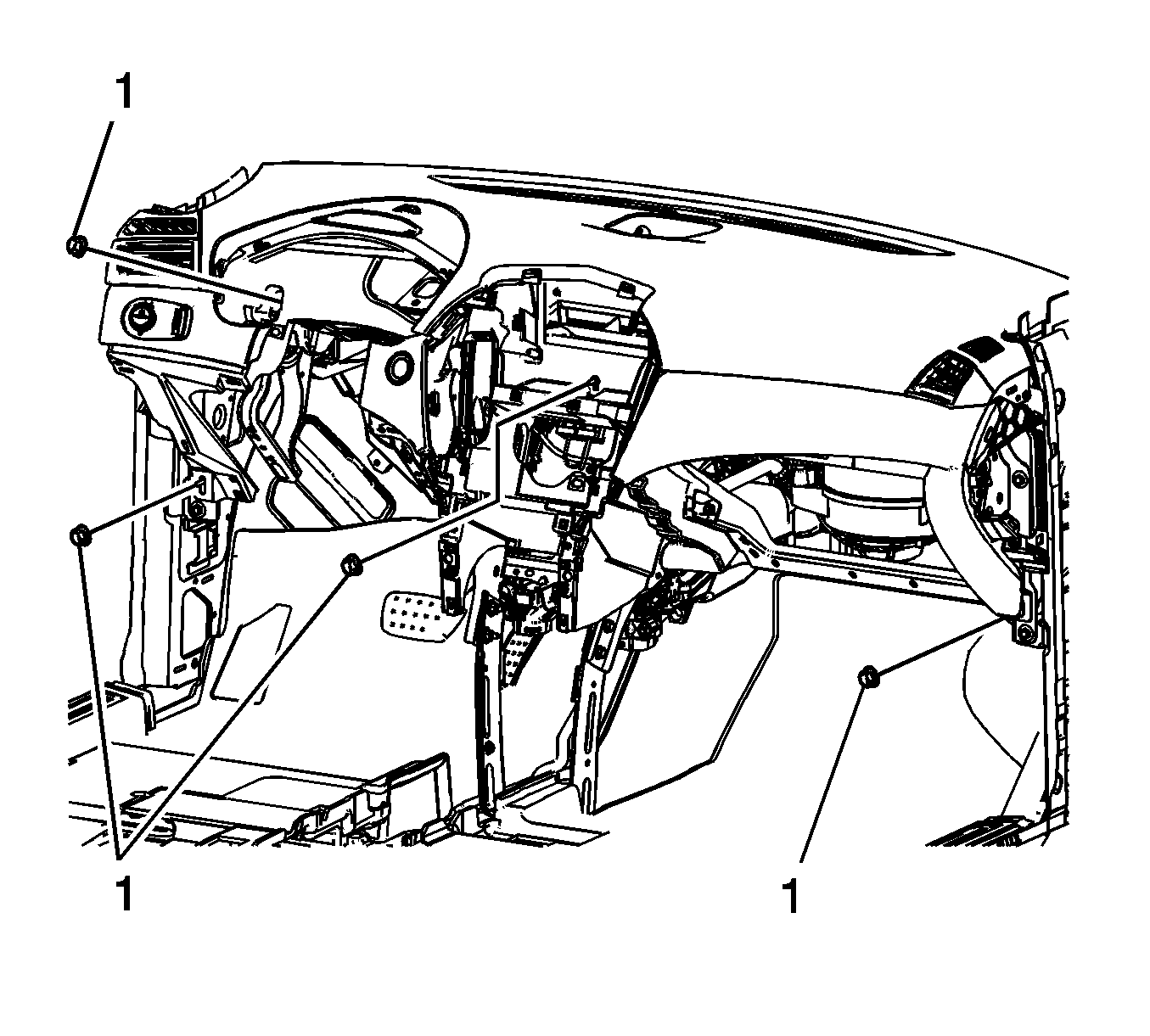

    2. Fig 2: Identifying Instrument Panel Assembly Retaining Screws
    GM2220833Courtesy of GENERAL MOTORS CORP.
  2. Loosely install the 4 nuts (1).

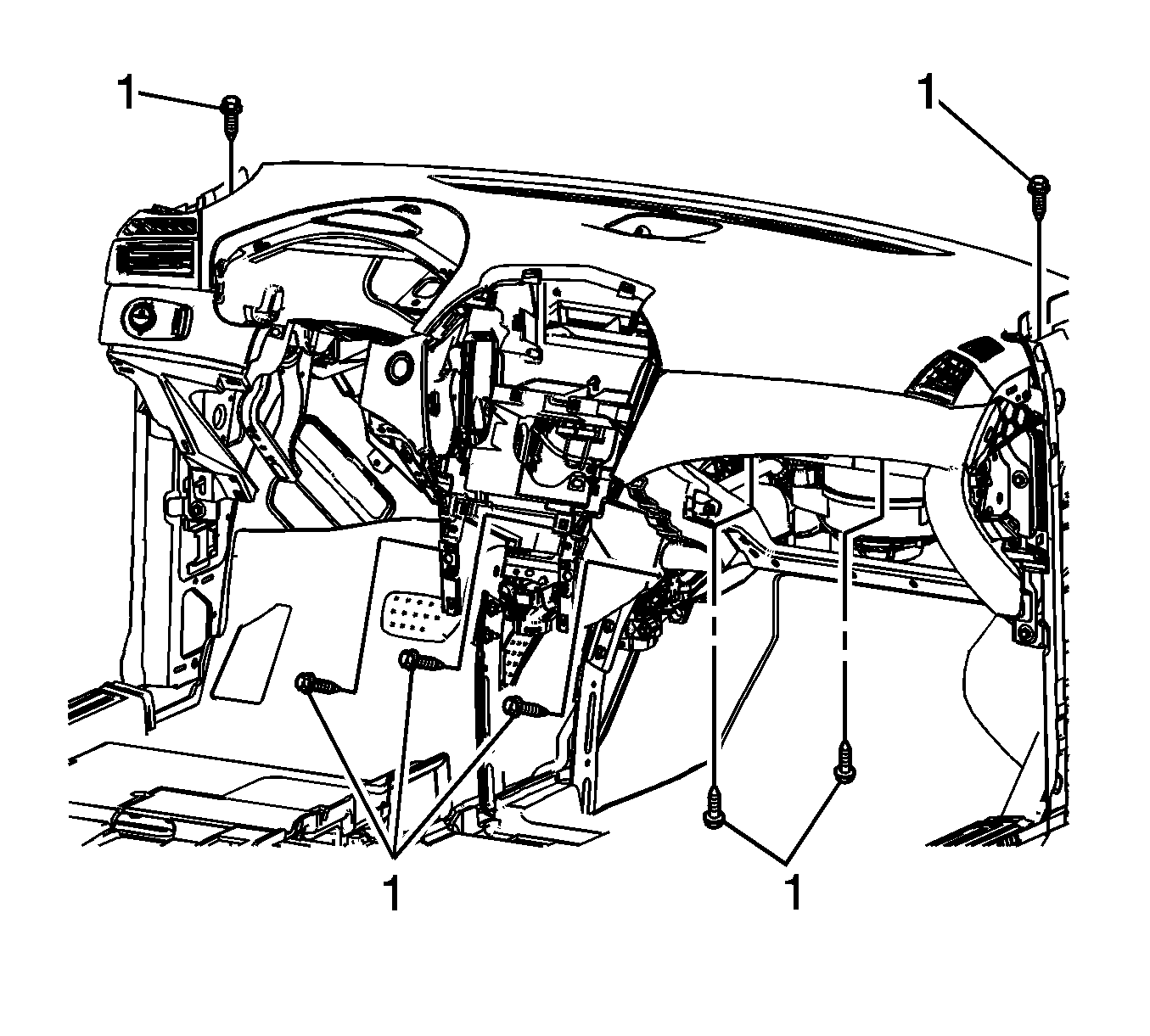

    3. Fig 3: Identifying Instrument Panel Bolts & Screws
    GM2220830Courtesy of GENERAL MOTORS CORP.
  3. Loosely install the 7 bolts/screws (1).
    4. CAUTION: Refer to Fastener Caution .
  4. Tighten the 7 bolt/screws securing the instrument panel to the vehicle 2.5 N.m (22 lb in).
  5. Tighten the 4 nuts securing the instrument panel assembly to the vehicle 9 N.m (80 lb in).

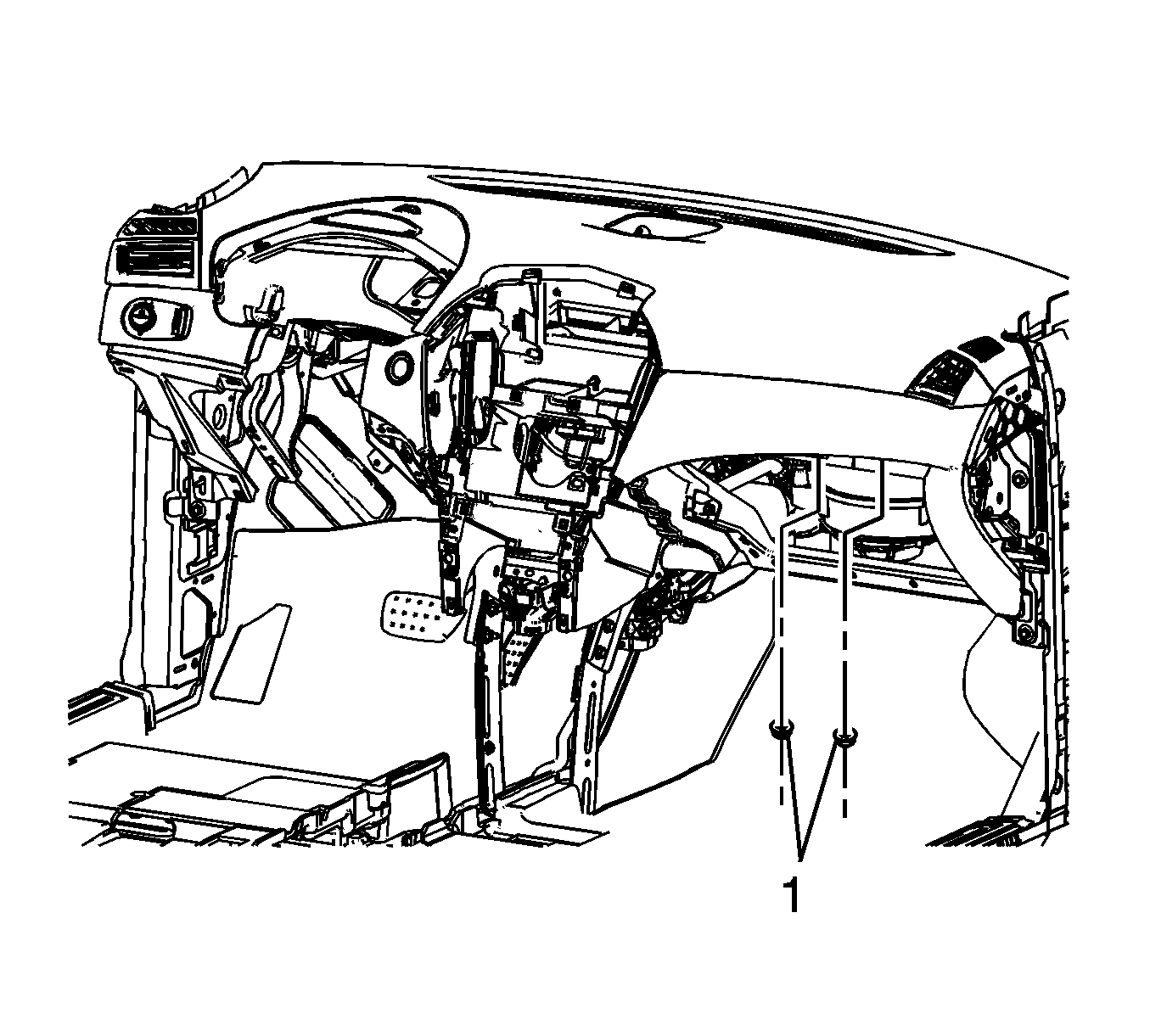

    6. Fig 4: Identifying Instrument Panel Inflatable Restraint Retaining Nuts
    GM2220829Courtesy of GENERAL MOTORS CORP.
  6. Install the 2 nuts (1) securing the instrument panel inflatable restraint to the instrument panel assembly, tighten to 9 N.m (80 lb in).
  7. Ensure the wiring harness is routed properly as was noted in the removal procedures.
  8. Connect the electrical connections.
  9. Install the right and left windshield garnish moldings. Refer to Windshield Garnish Molding Replacement .
  10. Install the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement .
  11. Install the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement .
  12. Install the radio. Refer to Radio Replacement .
  13. Install the instrument cluster. Refer to Instrument Cluster Replacement .
  14. Install the steering column assembly. Refer to Steering Column Replacement .
  15. Install the right and left body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .
  16. Install the right and left instrument panel side trim panels. Refer to Instrument Panel Side Trim Panel Replacement .
  17. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  18. Install the front floor console. Refer to Front Floor Console Replacement .
  19. Install the front seats. Refer to Driver or Passenger Seat Replacement .
