Front Floor Console Compartment Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

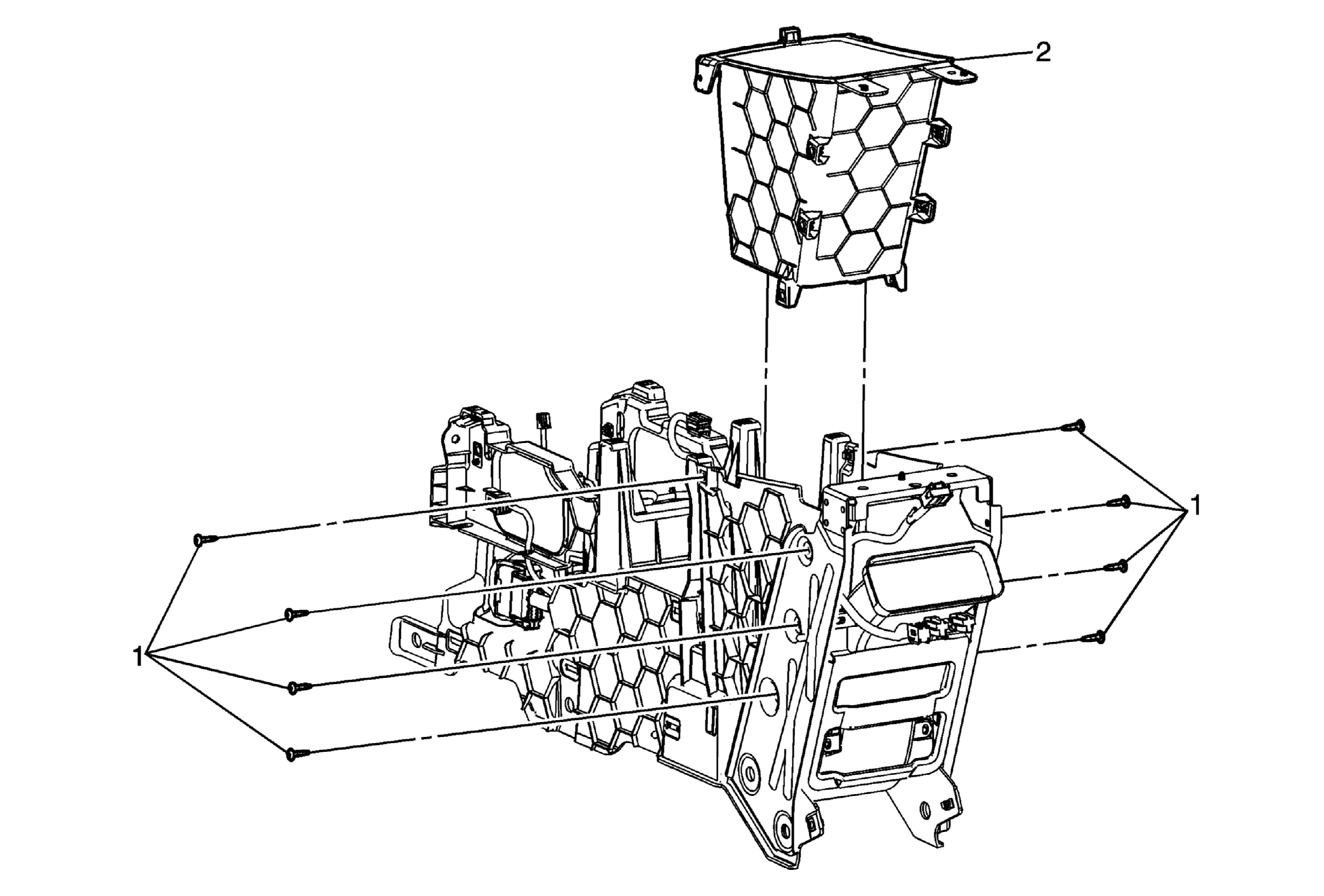

Fig 1: Identifying Front Floor Console Compartment
GM2220931Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the driver and passenger front seats. Refer to Driver or Passenger Seat Replacement .
  2. Remove the front floor console upper rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Upper .
  3. Remove the front floor console lower rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement - Lower .
  4. Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
  5. Remove the front floor console right and left trim panels. Refer to Front Floor Console Trim Panel Replacement .
1 Front Floor Console Compartment Fastener (Qty: 8)
CAUTION: Refer to Fastener Caution .

Tighten:  2.5 N.m (22 lb in)
2 Front Floor Console Compartment Assembly

Procedure

  1. Disconnect the electrical connections.
  2. When replacing the front floor console compartment, transfer all necessary components.
