Rear Liftgate Speaker Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

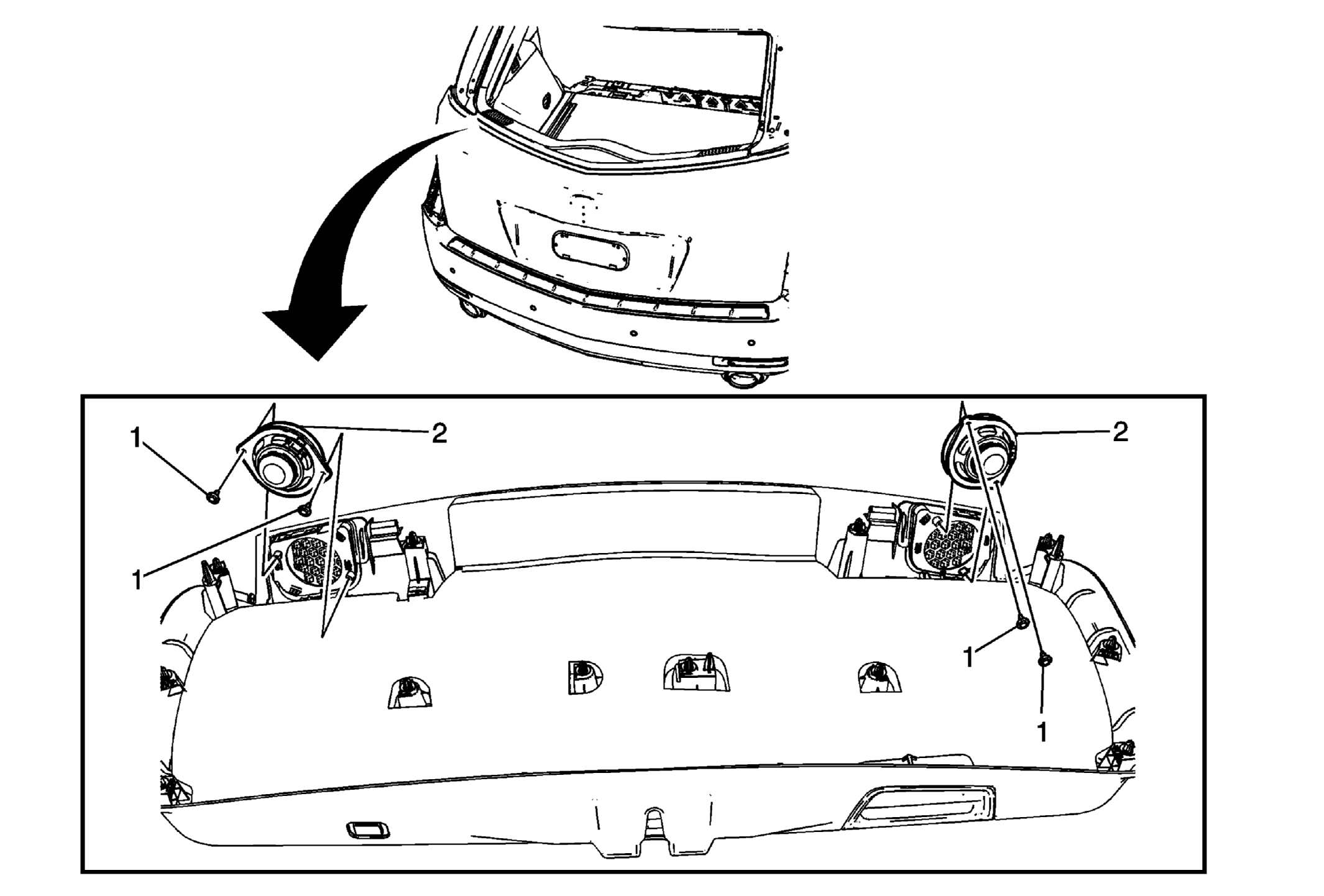

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement . |
|
| 1 | Radio Liftgate Speaker Bolt/Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Radio Liftgate Speaker Procedure: Disconnect the electrical connectors. |
