Liftgate Lower Trim Finish Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

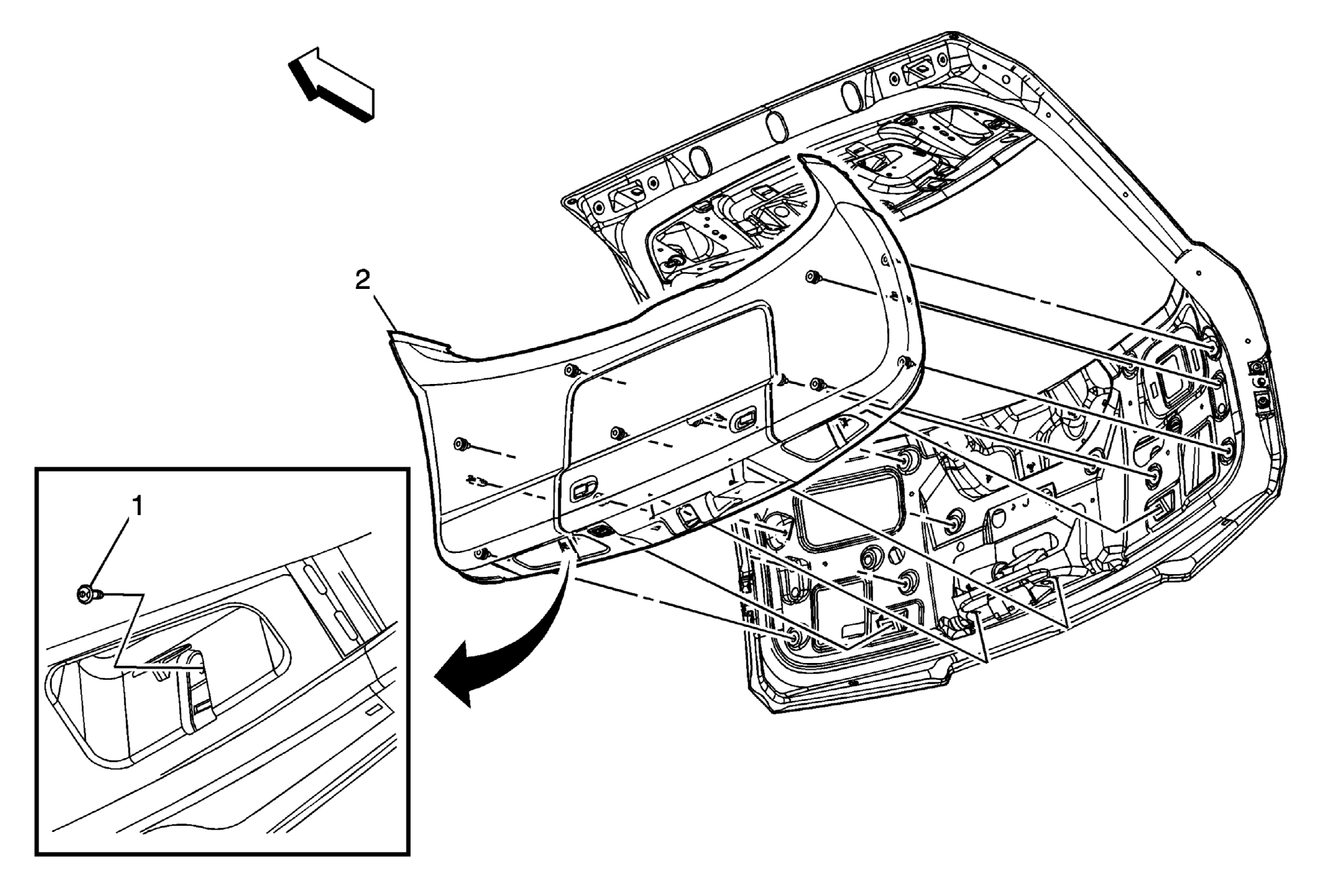

Fig 1: View Of Liftgate Lower Trim Finish Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement . Remove upper and lower together. Separate after removal, if necessary. Pull outward to disengage the trim panel retainers.
1	Liftgate Lower Trim Finish Panel Fastener CAUTION: Refer to Fastener Caution .
2	Liftgate Lower Trim Finish Panel Assembly Procedure Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly. Disconnect the electrical connector, if equipped.

Callout

Component Name

Preliminary Procedure

Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement .
Remove upper and lower together. Separate after removal, if necessary.
Pull outward to disengage the trim panel retainers.

Liftgate Lower Trim Finish Panel Fastener

CAUTION: Refer to Fastener Caution .

Liftgate Lower Trim Finish Panel Assembly

Procedure

Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly.
Disconnect the electrical connector, if equipped.
