Liftgate Upper Trim Finish Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

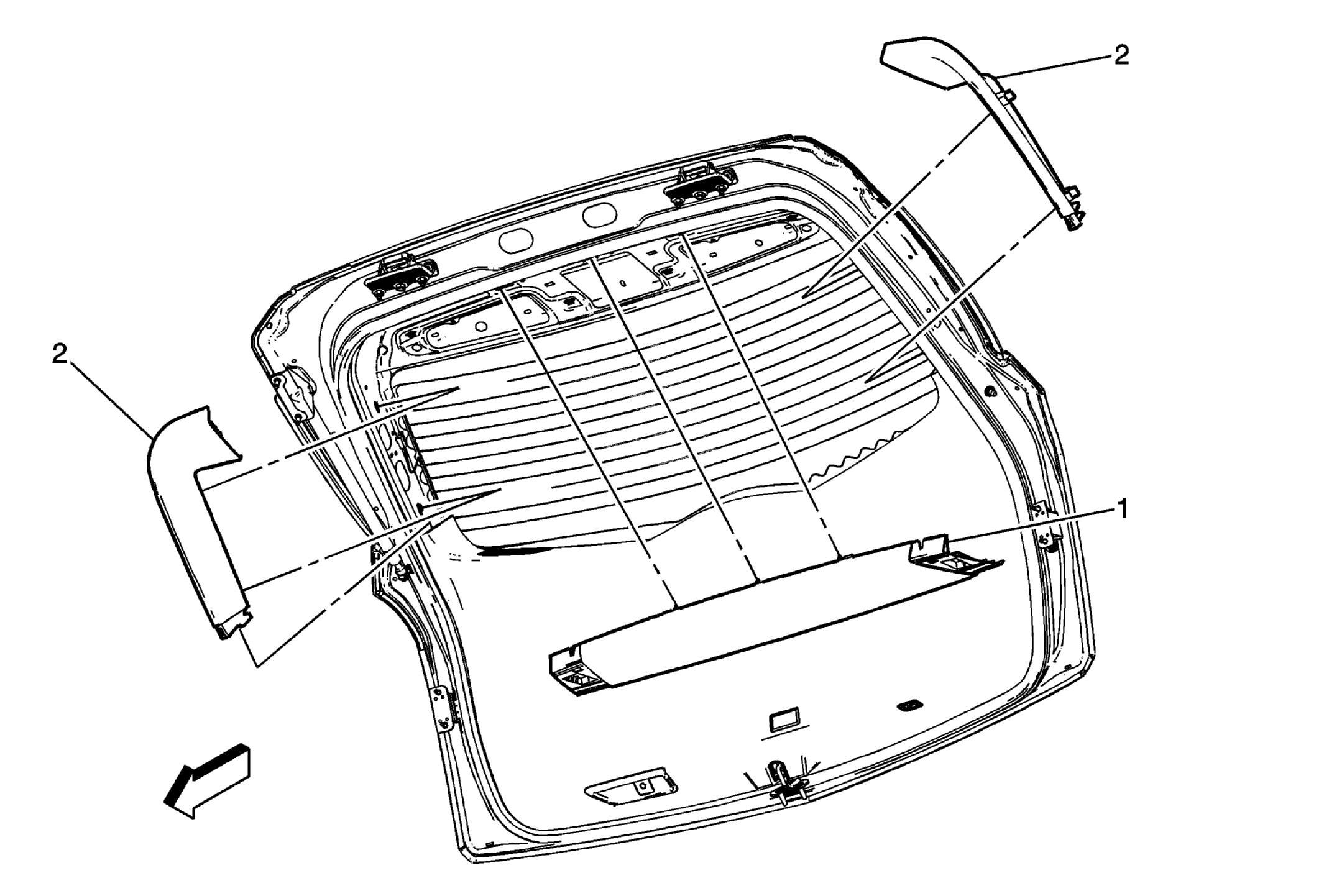

Fig 1: Identifying Liftgate Upper Trim Finish Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement . Remove upper and lower together. Separate after removal, if necessary. Pull outward to disengage the trim panel retainers.
1	Liftgate Upper Trim Finish Panel Assembly
2	Liftgate Trim Finish Panel Assembly (Qty: 2)

Callout

Component Name

Preliminary Procedure

Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement .
Remove upper and lower together. Separate after removal, if necessary.
Pull outward to disengage the trim panel retainers.

Liftgate Upper Trim Finish Panel Assembly

Liftgate Trim Finish Panel Assembly (Qty: 2)
