Coolant Temperature Sensor Replacement

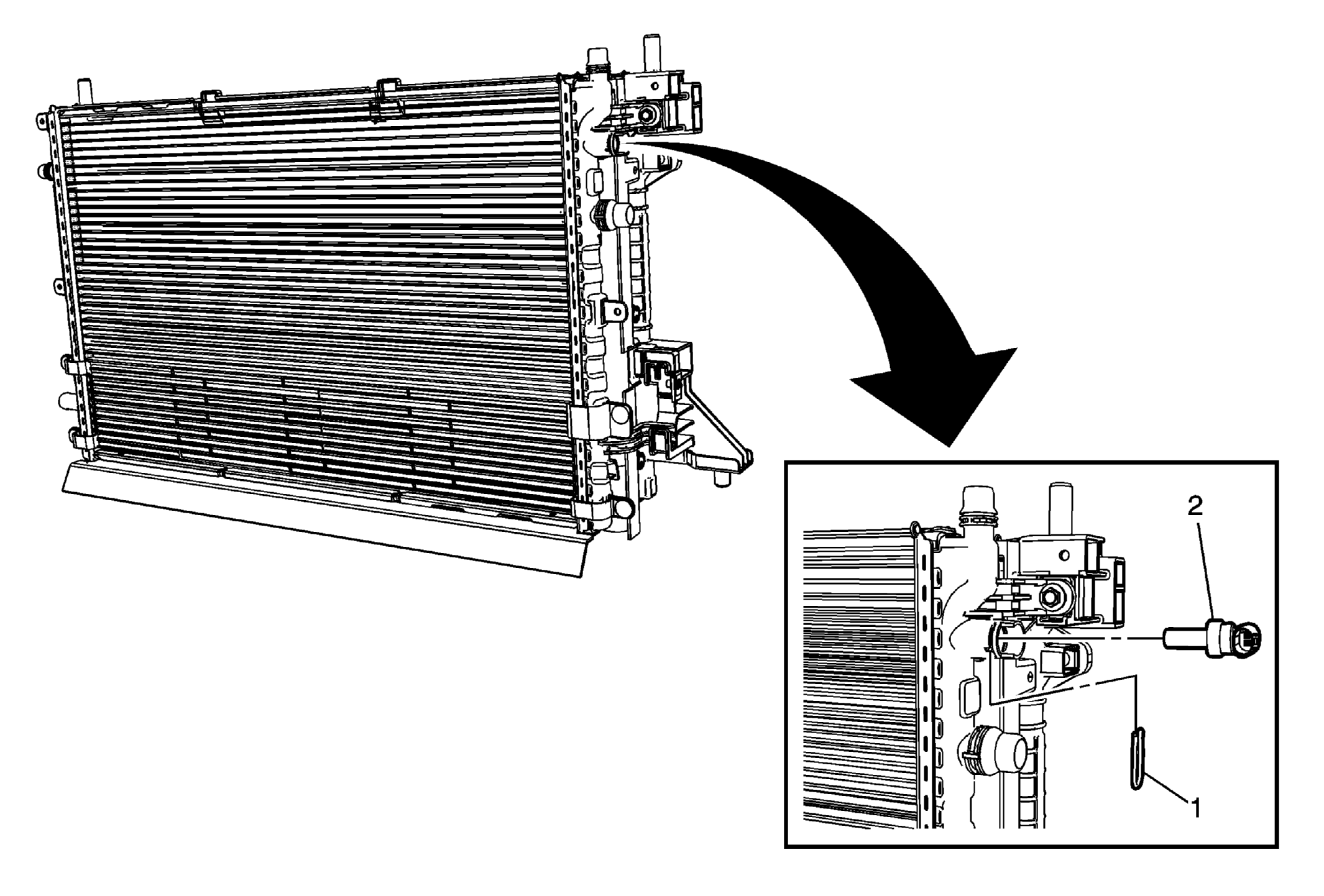

Fig 1: Coolant Temperature Sensor

GM2375964

Courtesy of GENERAL MOTORS COMPANY

Coolant Temperature Sensor Replacement

Callout

Component Name

Preliminary Procedure

Partially drain the coolant just below the level of the coolant temperature sensor. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
Remove the front fascia. Refer to Front Bumper Fascia Removal and Installation
Disconnect the electrical connector from the coolant temperature sensor.

1

Coolant Temperature Sensor Retaining Clip.

2

Coolant Temperature Sensor
