Installation Procedure
- Install the drive motor generator control module cooling outlet hose to the vehicle.

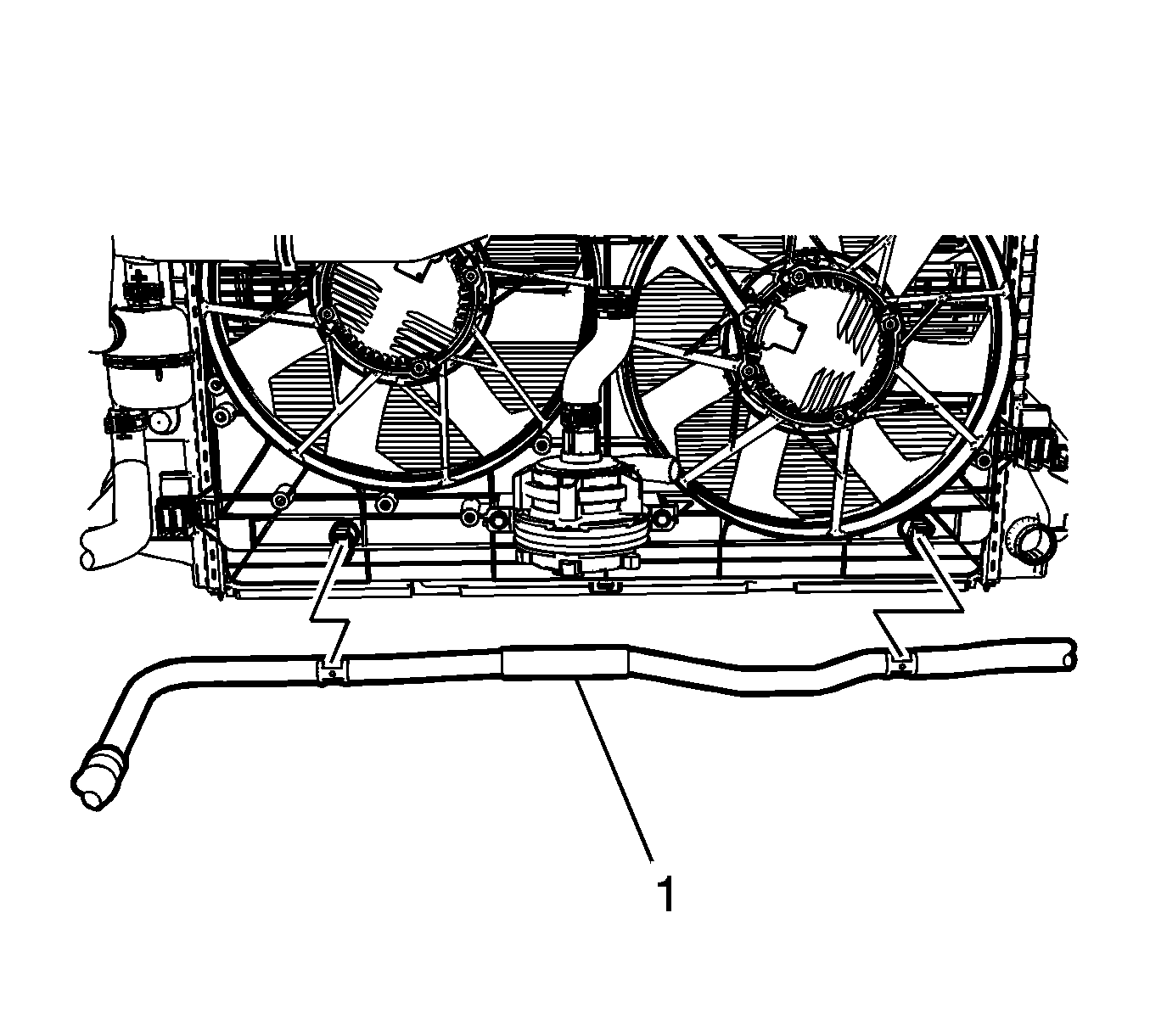

- Connect the drive motor generator control module cooling outlet hose (1) to the cooling fan and shroud.

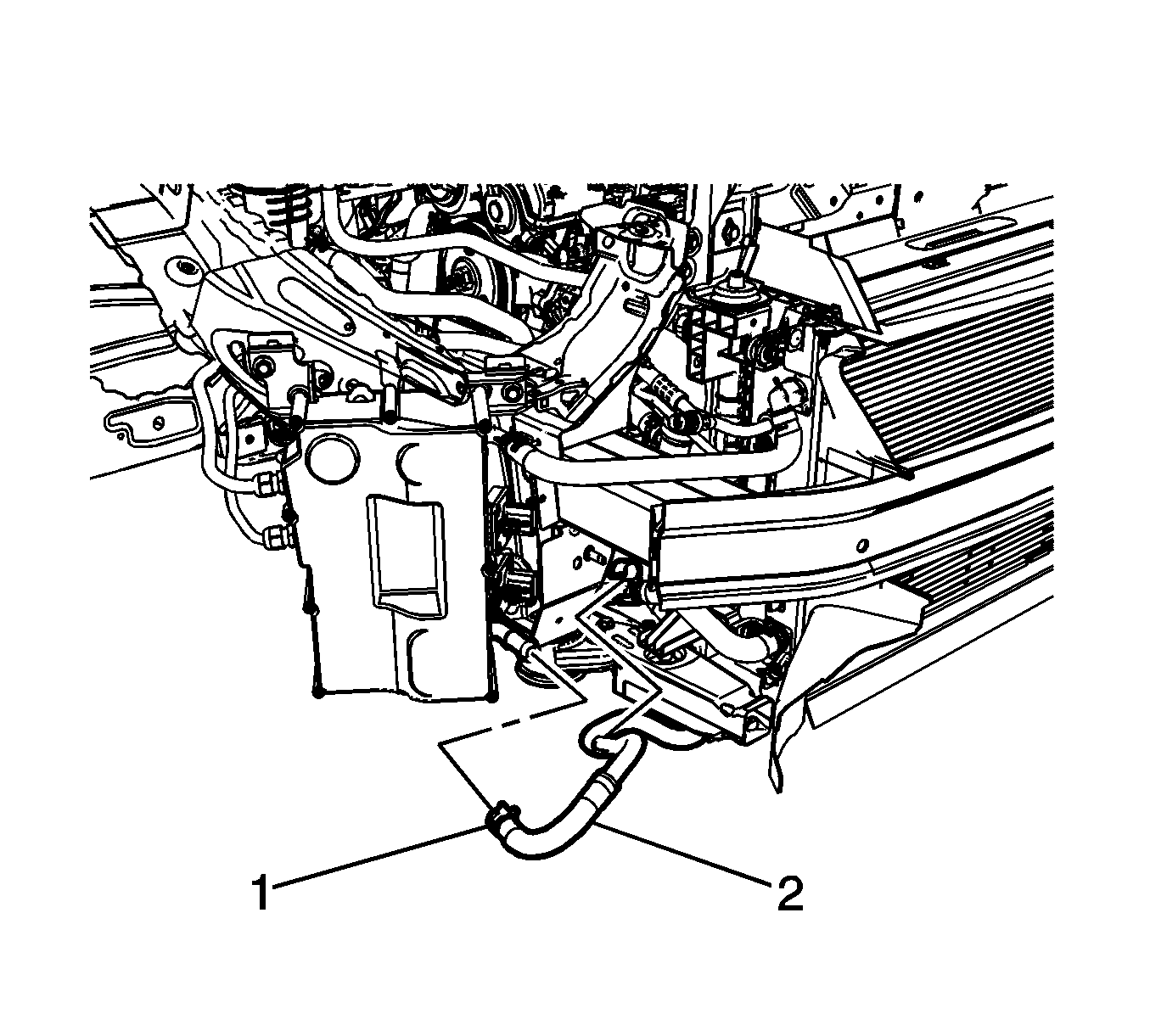

- Install the drive motor generator control module cooling outlet hose (2) to the drive motor battery charger.
- Install the drive motor generator control module cooling outlet hose clamp (1) at drive motor battery charger using BO-38185 Hose Clamp Pliers.

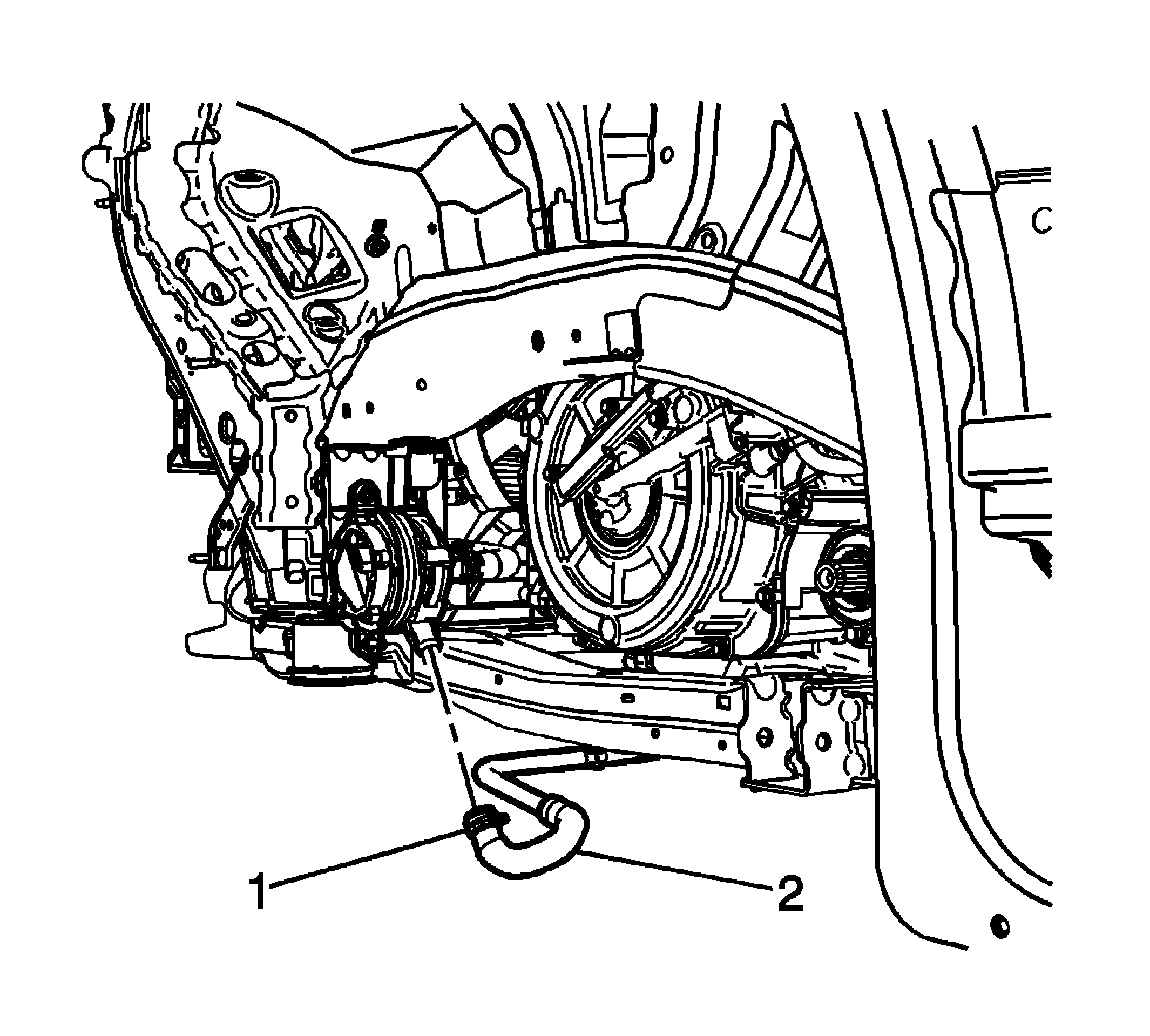

- Install the drive motor generator control module cooling outlet hose (2) to the generator control module coolant pump.
- Install the drive motor generator control module cooling outlet hose clamp (1) at generator control module coolant pump using BO-38185 Hose Clamp Pliers.
- Reposition and bolt the drive motor battery coolant inlet hose. Refer to Drive Motor Battery Coolant Inlet Hose Replacement
- Reposition and bolt the drive motor battery coolant cooler outlet hose Refer to Drive Motor Battery Coolant Cooler Outlet Hose Replacement
- Reposition and fasten the drive motor battery coolant pump with out draining the battery cooling system. Refer to Drive Motor Battery Coolant Pump Replacement
- Install the front bumber fascia. Refer to Front Bumper Fascia Removal and Installation
- Install the front wheelhouse front liner on the driver and passenger side. Refer to Front Wheelhouse Front Liner Replacement
- Fill the cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
